by WAC Lighting

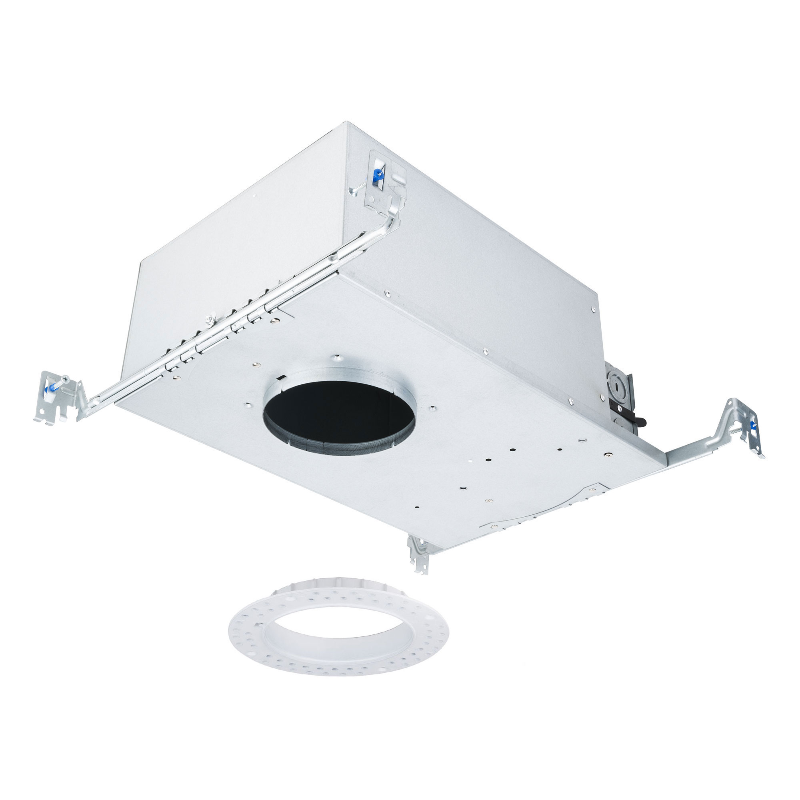

WAC R4FRNL 4" 25W New Construction Trimless
SKU R4FRNL-3
Original price
$0.00
-
Original price
$0.00
Original price
$134.95
$134.95
-
$134.95
Current price
$134.95
Availability:
in stock, ready to be shipped
Features
- Construction: 20 gauge galvanized Steel
- Power: 25W
- Voltage: 120-277V
- Type: Airtight
- Trim Shape: Round (Spackle frame included)
- ELV Dimming: 100-5%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-5%
- One size housing for all round and square trim types for simplicity and versatility
- Uniformed ceiling cutout size for DL, ADJ, WW in Round or Square, Trim or Trimless
- Quick connectors installed on driver for easy driver replacement
- EM fixtures provided with integral emergency battery backup with 24" lead wire remote test switch. Provides at least 90 minutes of 6W illumination during emergency operation.
- New construction housings included with universal mounting brackets and hanger bars
- Driver concealed within the fixture

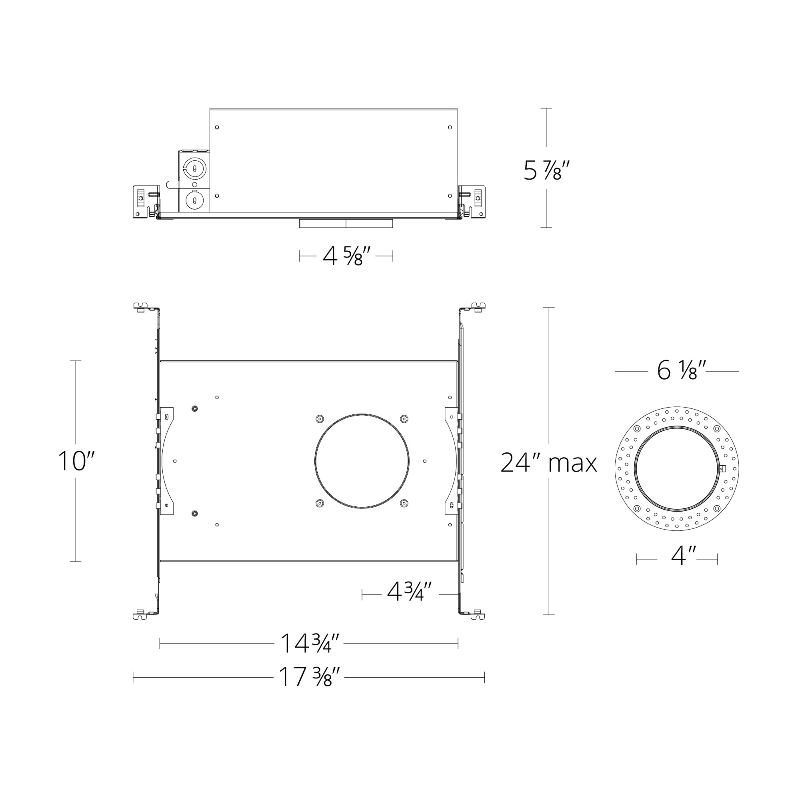

Dimensions
- Aperture Size: 4"
- Length: 24"
- Width: 17.38"
- Height: 5.88"
- Ceiling Cutout: 4.75" Dia.
- Ceiling Thickness: 0.5" - 1"
