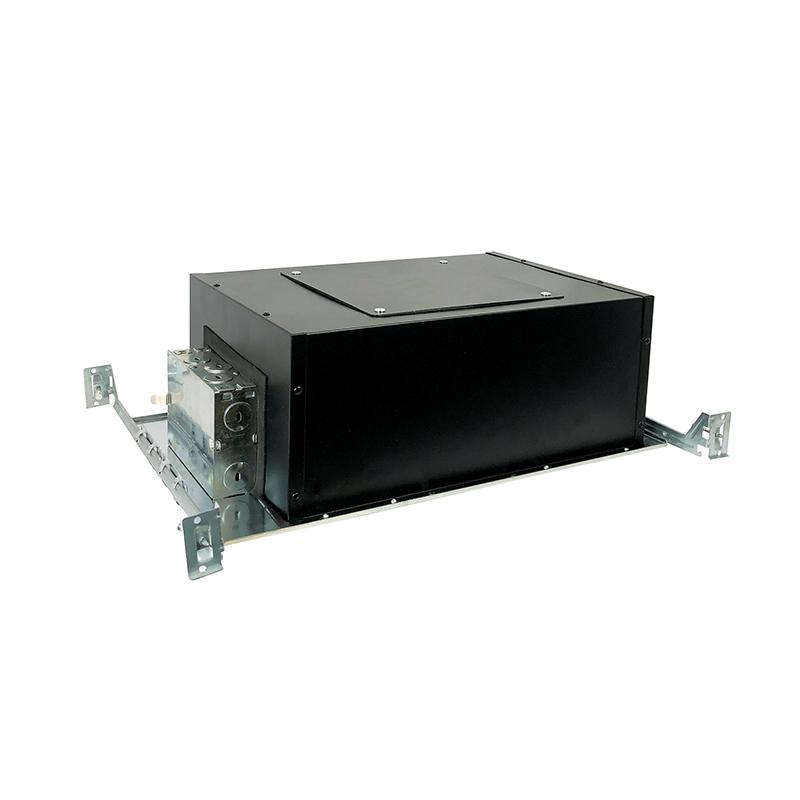

Nora NHIOICD-4PS25 4" Iolite PLUS LED Dedicated IC Air-Tight New Construction Housing, 2500 Lumens

New construction housing for use with Square PLUS trimless only. Rated for insulated ceilings and can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.

Features

• Housing Only. Trim Sold Separately
• Size: 4" PLUS
• Type: IC Air-Tight New Construction
• Flange Type: Trimless
• Wattage: 28W
• Voltage: 120/277V
• Lumens: 2500
• Dimming: Triac / ELV / 0-10V dimming
• 24-1/2″ hanger bars with alignment feet and nails included

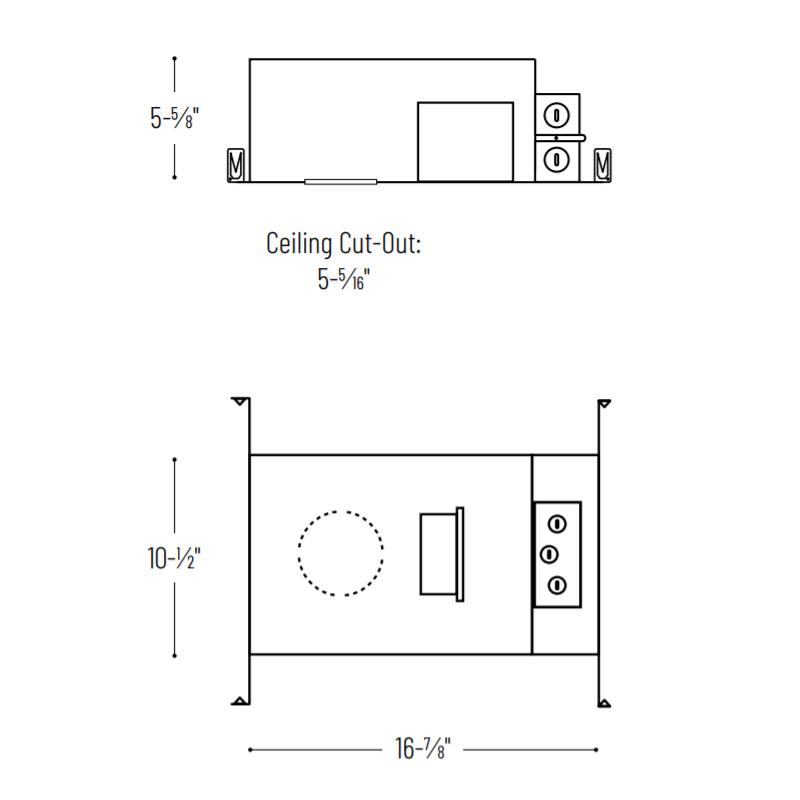

Dimensions

• Aperture Size: 4" PLUS
• Ceiling Cut-Out: 5.31"
• Length: 16.88"
• Width: 10.5"
• Height: 5.63"

Lamping

• 28W LED

Documents

• Spec Sheet
• Instruction Sheet
