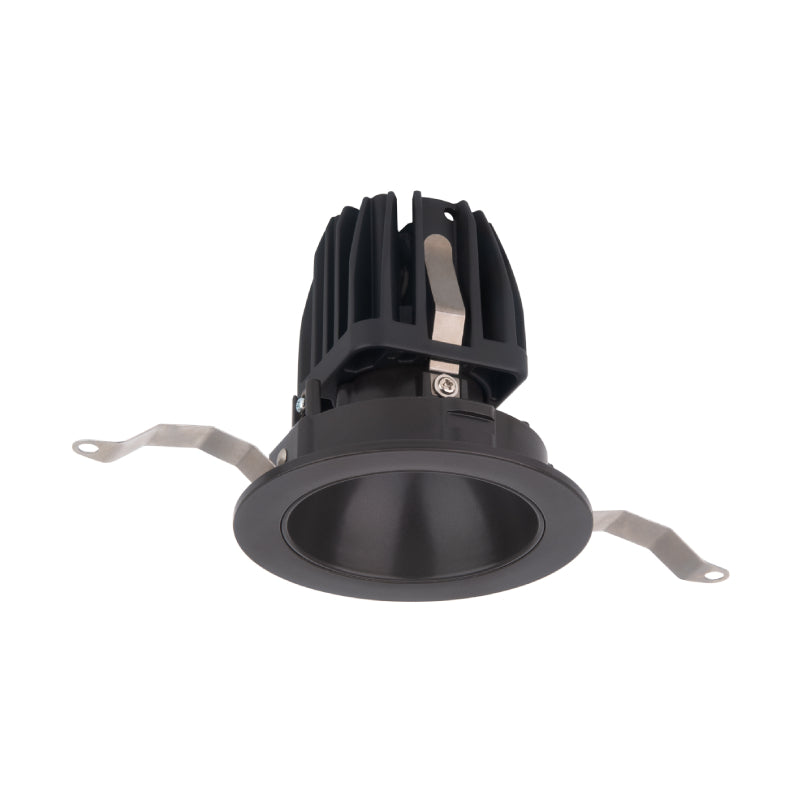

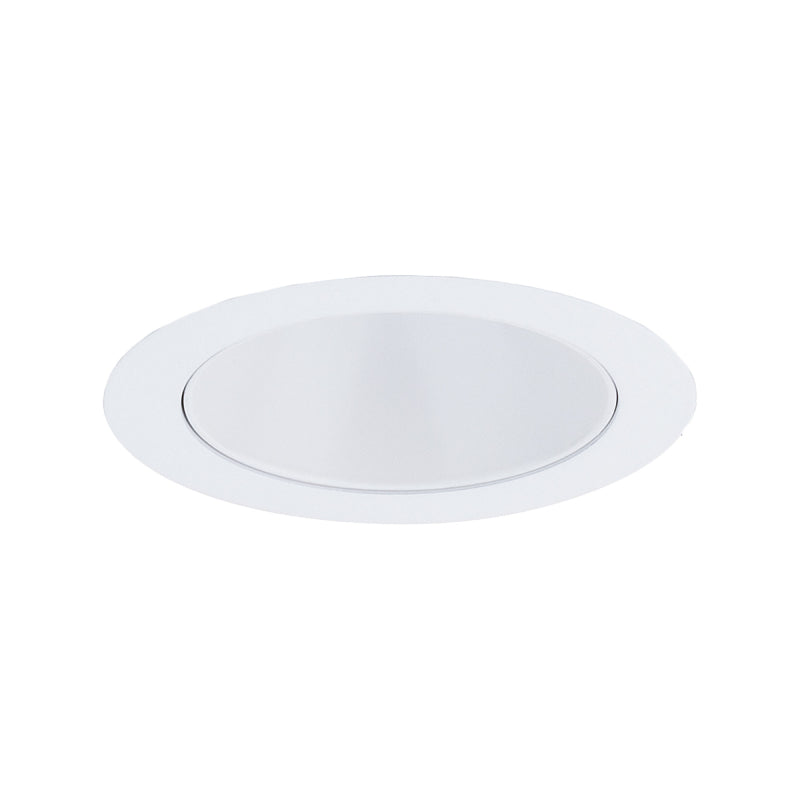

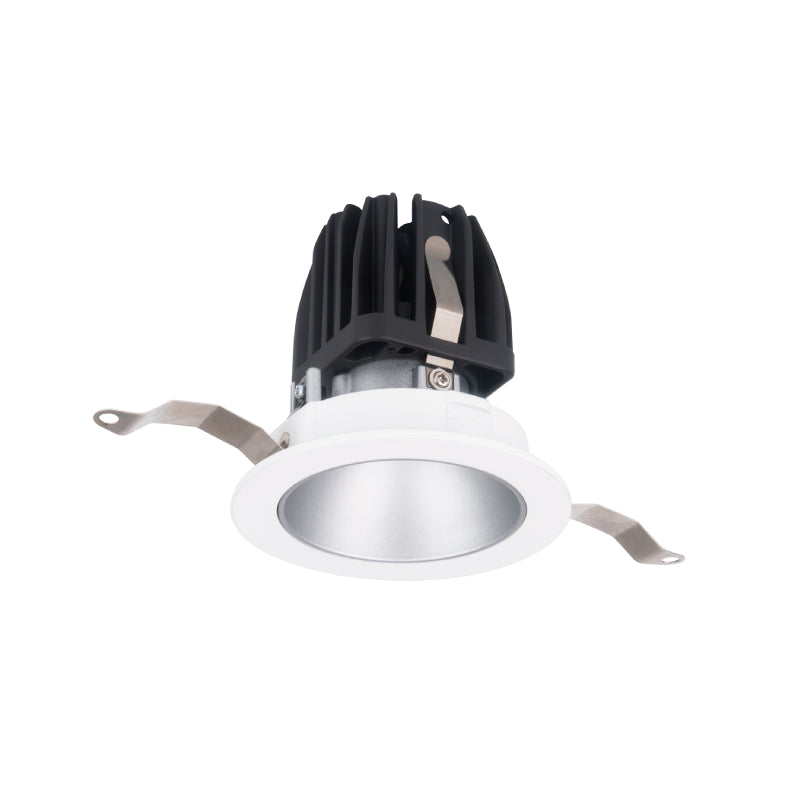

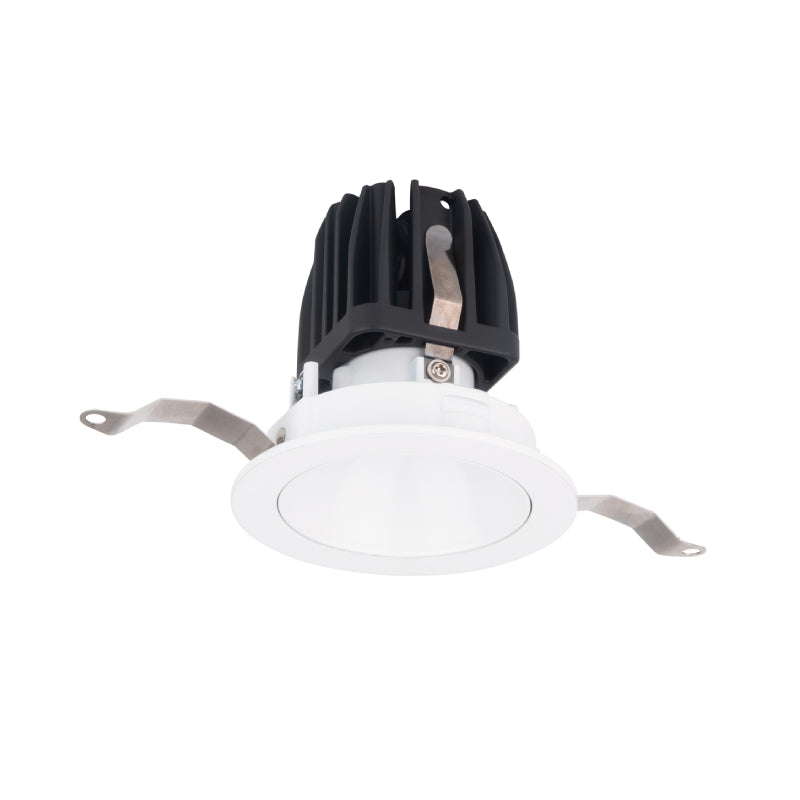

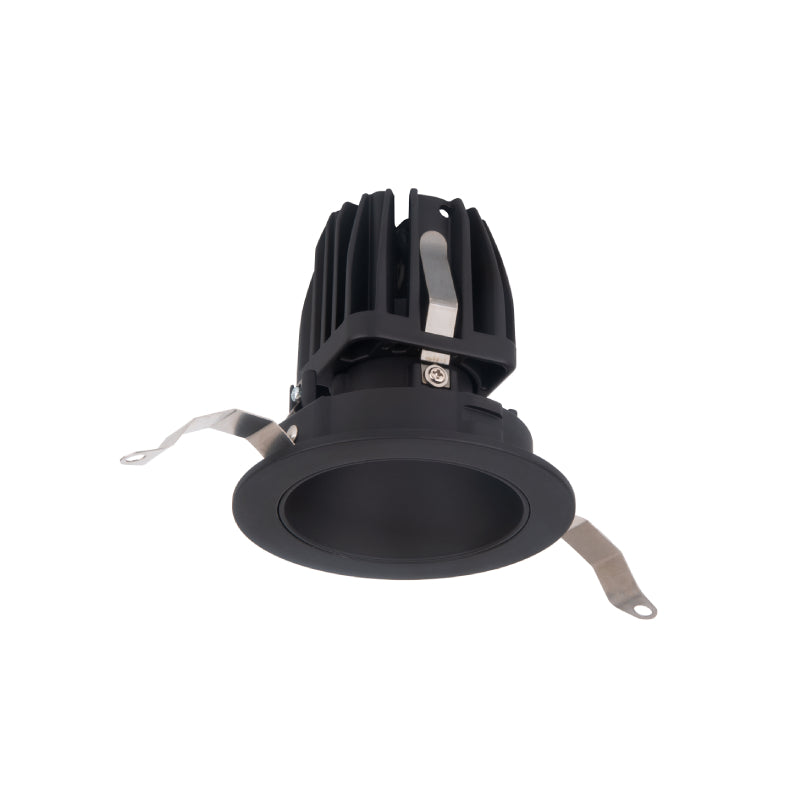

WAC R2FRD1T FQ 2" Shallow Round Downlight Trim

The FQ Recessed series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality. The series features superlative glare control with 30° shielding, 35° vertical tilting and 360° horizontal rotation, and uniform floor-to-ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications. Easy to order, install, and service.

Features

• Housing sold separately
• Finish: Black, Dark Bronze, Haze/White, White
• Color Temperature: 2700K, 3000K, 3500K
• Voltage: 120-277V
• Lumens: Up to 1275
• CBCP: Up to 3415
• CRI: 90
• Beam: 25°/40°/55°
• Rated Life: 50000 Hours
• Construction: Durable die-cast aluminum trim with aluminum heat sink
• Two-piece die-cast construction, compact size suitable for shallow ceiling plenum
• Light engine mounted on trim with springs for easy replacement
• 30° shielding angle design for great visual comfort
• Field changeable beam angle with reflectors provided
• Accepts one Lens or glare control accessory

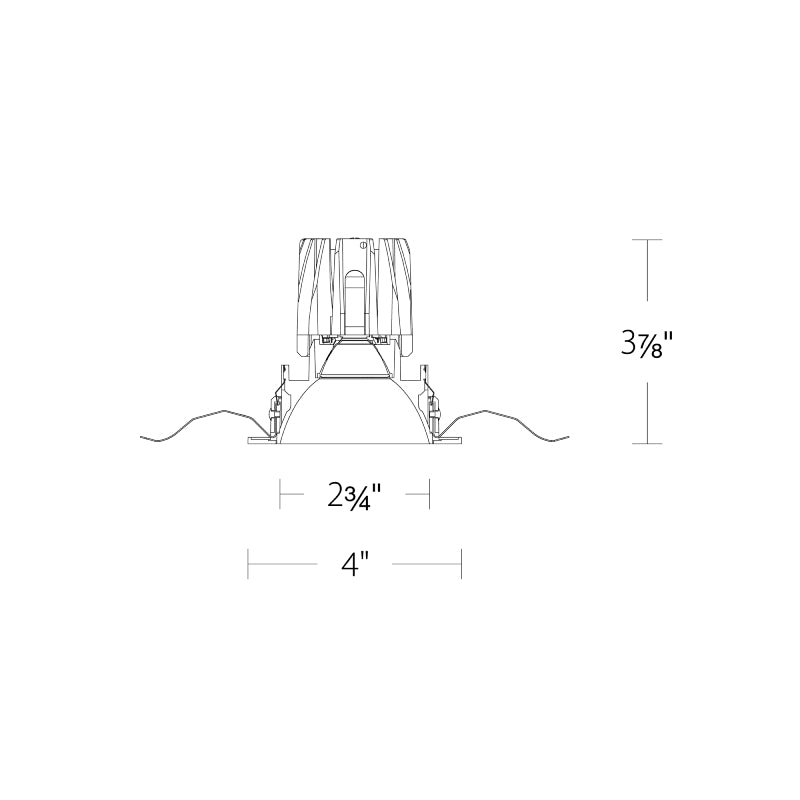

Dimensions

• Width: 4"
• Height: 3.88"
• Ceiling cutout: 3.5"
• Ceiling thickness: 0.5"-1"

Documents

• Spec Sheet
• Instruction Sheet
