WAC HR-LED87S 4.8W LEDme Square Button Light

Designed for recessed or surface mounted installations, delivering strong light output with the latest in LED technology.

Features:

• Class 2 Electronic Transformer required - sold separately
• Style: Square
• Construction: Die-cast aluminum fixture, stamped steel housing for surface mount
• Finish: Black, Brushed Nickel, Copper Bronze, Chrome, Dark Bronze, White
• Color Temperature: 2700K, 3000K
• High CRI: 85
• Lumens: Up to 155
• Dimming: 100% - 10%
• Mounting: Recessed or Surface Mount

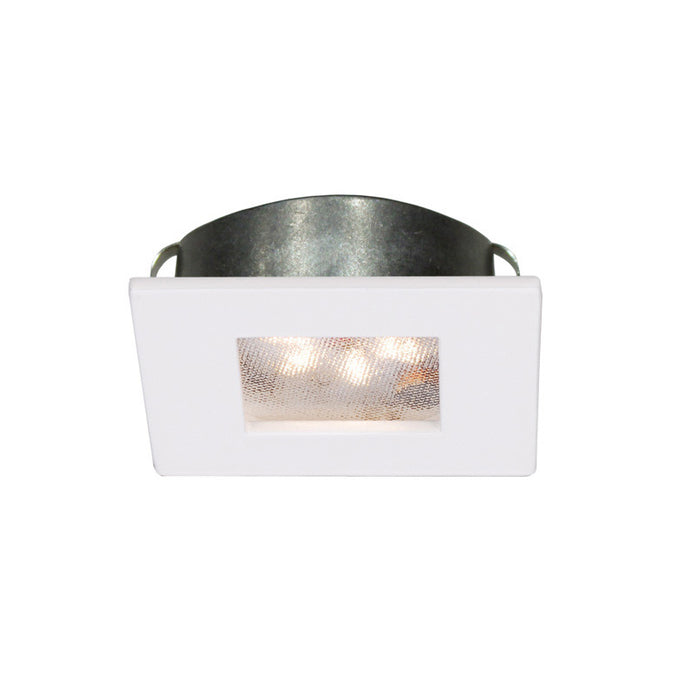

• Recessed: 2-1/8" cutout hole. Compression springs hold fixture firmly in place

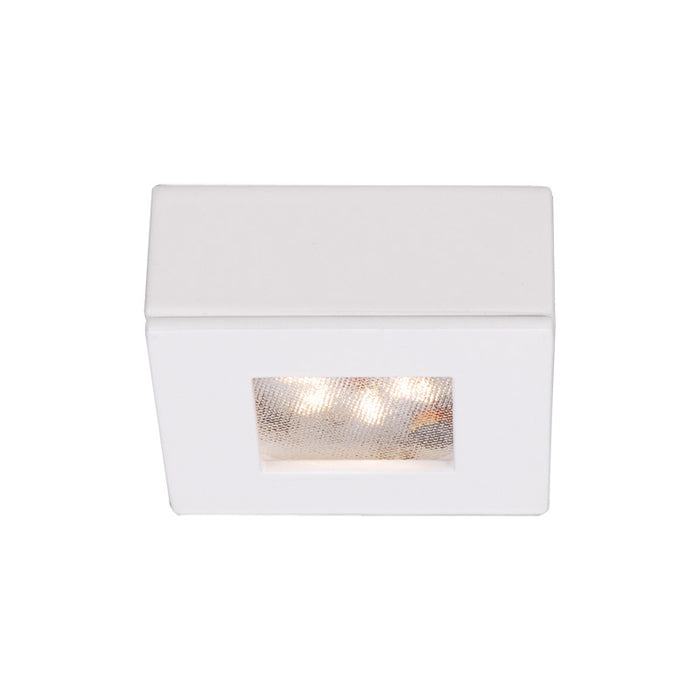

• Surface- Screw housing cover to surface, compress springs and insert into cover
• Not recommended for use in ceilings
• Quick and easy installation
• Rated Life: 70000 Hours
• Class 2, 24V remote and plug-in transformers allow for up to 20 button lights to be wired together. Use a multiple terminal block to wire up to 6 fixtures in a neat under cabinet installation without the use of open splices
• May be dimmed to 10% with an electronic low voltage (ELV) dimmer

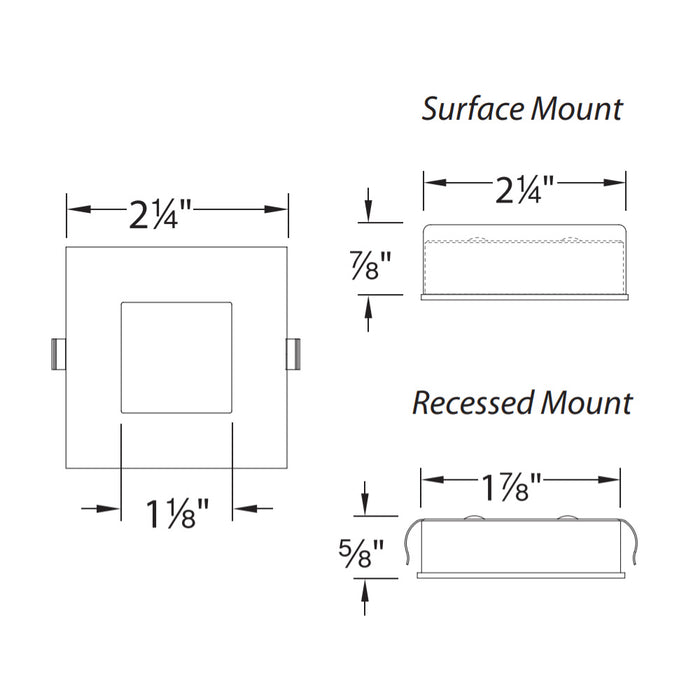

Dimensions

• Width: 2-1/4"

• Height: 7/8"
• Leadwire: 72"

Lamping:

• 1 x 4.8W LED (Included)

Documents:

• Spec Sheet
• Instruction Sheet
