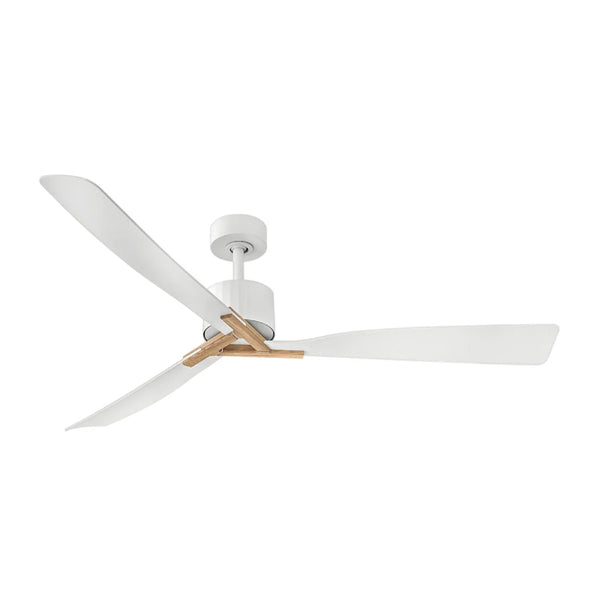

Inspired by the organic minimalism of modern Scandinavian styles, Rafter’s streamlined design adds warmth to your living space with wooden accents at the base of stylishly contoured blades.
Features
- Finish/Blades:
- Matte White with Matte White Blades
- Matte Black with Matte Black Blades
- Light Shade: White Polycarbonate
- Blade Pitch: 14º
- Slope Degree: 20º
- Three blades
- Blade Material: Composite
- Fan Control included, HIRO Control - 6 Speed Reversing
- Voltage: 120V
- Built-in uplight adds accent illumination to the ceiling
- All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote
- Can be hung on a sloped ceiling
- Fans should be installed at a minimum of 7 feet from the floor
Airflow/Energy Efficiency
- Airflow: 6120 cubic ft per minute on high
- Power: 29 watts on high
- Airflow Efficiency: 211 cubic ft per minute per watt
- Revolutions Per Minute: 134 RPMs on high
Dimensions
- Blade Sweep: 60"
- Height: 12.5"
- Down Rods: 1 x 6"
- Lead Wire: 1 x 76"
- Canopy: 5.5" Dia.
- Housing Diameter: 6.75"
- Ceiling to Blade Height: 10.25"
- Motor Type: DC
- Weight: 12.57 lbs
Lamping
- 15W Integrated LED (Included)
- Color Temperature: 3000K
- Lumens: 1000
- CRI: 90
- Dimmable: CL Type Dimmer(SSL7A)
- LED Lifespan: 50,000 hrs
