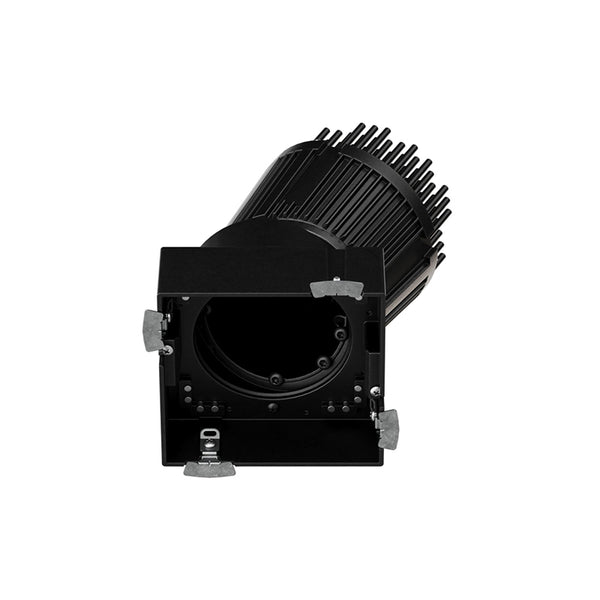

The IRIS 3" Square Install-from-Below Downlights offer boutique-quality performance with easy installation for new construction, remodel, and retrofit projects. Available in fixed or adjustable models, they feature field-interchangeable optics for precise beam control and up to 45° tilt for accurate accent lighting. Designed for hard ceilings, these architectural LED downlights install from below without attic access, delivering flexibility and professional-grade illumination.
Features
- Voltage: 120-277V
- Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
- Lumens: 250, 500, 900, 1300
- CRI: 90
- 0-10V 1% dimming
- Install-from-below adjustable downlight for remodel or new construction applications
- Square adjustable downlight with integrated heat sink and remote LED driver junction box fits 2x6 construction
- Wing clamps hold module securely in ceiling in new construction with optional mounting frame or remodel applications
- Interchangeable precision optics: 8°, 10°, 12°, 15–70° in 5° increments, and asymmetric patterns
- 365° of rotation and 45° of tilt for precise hot aiming
- Unmatched trims and finishes for every space and style
- Trim flange options: Standard Flange
Dimensions
- Width: 4.54"
- Height: 5.63"
Warranty
- 5-year warranty
Documents
Labels and Listings
- cULus Certified to UL 1598 / C22.2 No. 250 suitable for wet locations with lensed trims (required for outdoor use); damp location with open trims
- ENERGY STAR qualified
- Airtight per ASTM-E283 (with lensed trims)
- FCC CFR Title 47 Part 15 Class B at 120VAC and Class A at 277VAC
- Declare compliant, LBC Red List approved
- RoHS compliant
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
