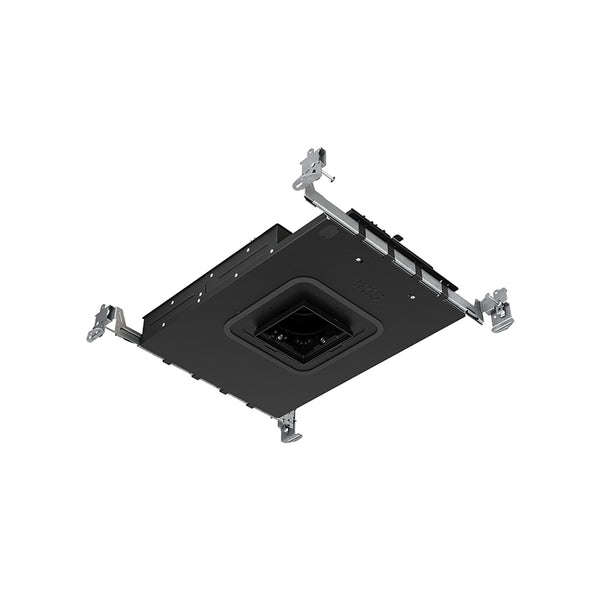

The IRIS 3" Ultra-Shallow Square Downlights deliver boutique-level precision in a compact 2.5" housing. Field-interchangeable optics ensure designers have complete control over beam spread, while translating center beam technology guarantees the light always hits its target—eliminating glare and shadows.
Features
- Voltage: 120-277V
- Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
- Lumens: 250, 500, 900, 1300
- CRI: 90
- 0-10V 1% dimming
- Designed for 2.5" tall new construction plenum spaces
- Interchangeable precision optics: 8°, 10°, 12°, 15–70° in 5° increments, and asymmetric patterns
- Unmatched trims and finishes for every space and style
- Trim flange options: Millwork/Plaster Knife Edge Rimless, MicroFlange, or Standard Flange
- Servicable from Below: LED Light engine and magnetic snap-in driver
- Integral or remote driver options
Dimensions
- Length: 17.09"
- Width: 14.33"
- Height: 2.47"
Warranty
- 5-year warranty
Documents
Labels and Listings
- cULus Certified to UL 1598 / C22.2 No. 250 suitable for wet locations with lensed trims (required for outdoor use); damp location with open trims
- ENERGY STAR qualified
- Insulated ceiling (IC) rated
- Airtight per ASTM-E283
- FCC CFR Title 47 Part 15 Class B at 120VAC and Class A at 277VAC
- Declare compliant, LBC Red List approved
- RoHS compliant
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
