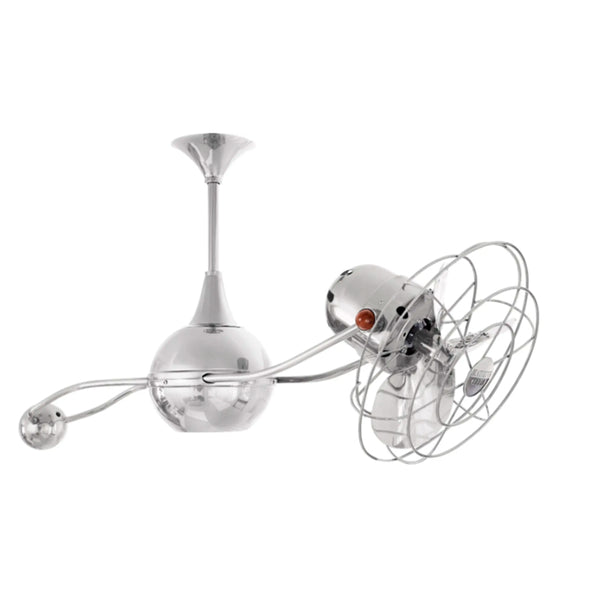

The Brisa 2000 is a unique rotational ceiling fan. Like satellites orbiting a planet, the Brisa's select mahogany blades and lunar counterweight gently orbit about its spherical gear housing.
The motor head can be infinitely positioned in a 180-degree arc for optimum air movement; the greater the angle of the motor to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both motor head position and fan blade speed.
Features
- Lead time: 8-10 Weeks Special Order
- Finish: Bronzette, Brushed Nickel, Polished Chrome, Matte Black, Polished Copper, Brushed Brass, Brushed Copper, Polished Brass, Gloss White, Black Nickel
- Blade Type: Metal
- Includes decorative cage
- Blade Pitch: 31º
- 3 blades
- Voltage: 110V
- Matthews rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans
- Constructed of cast aluminum, heavy spun and stamped steel, the Brisa carries a limited lifetime
- Each unique motor mount and fan head knob is made of genuine marbleized Bakelite
- Damp location with powder or clear coat only.
- Standard Equipment:
- Lutron decora–style SFS–5E fully variable wall switch in white
- 10" downrod - (5", 20", 30", 48" or 72" downrods available- sold separately). Downrods can be easily field cut; they are not threaded
- Flat ceiling canopy.
Airflow/Energy Efficiency
- RPM (Low/High): 790 / 1205
- CFM (Low/High): 790 / 1265
- Watts (High): 55.15
- CFM/Watt (High): 22.94
Dimensions
- Width: 39"
- Motor Type: AC
- Canopy: 5.5"Dia.
- Weight: 21 lbs
