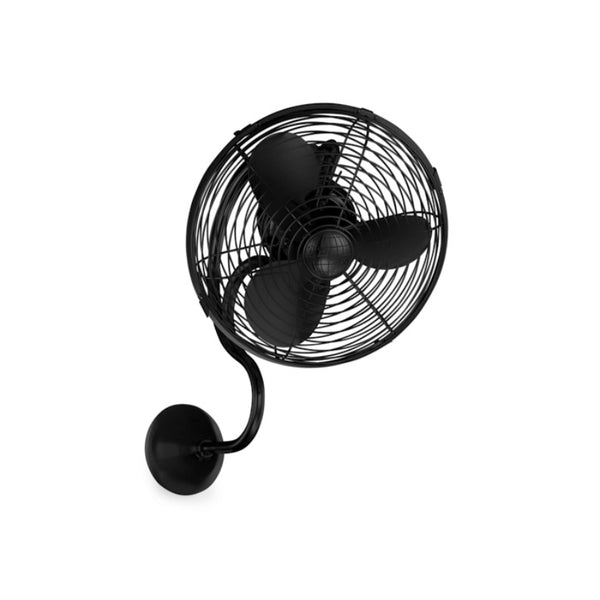

The oscillating Melody, 3–speed wall-mounted fan, designed in the Art Nouveau style with a grand, arching gooseneck, provides maximum multi-directional airflow with its 90° left to right sweep. Melody can be mounted in small, awkward spaces or in front of HVAC ducts to improve the efficiency of the heating, ventilation or air conditioning of any space. Constructed of cast aluminum and heavy stamped steel, the Melody carries a limited lifetime warranty.
Features
- Finish: Matte Black, Textured Bronze
- Blade Pitch: 31º
- Three blades
- Voltage: 110V
- 3-speed remote control and side-mounted wall junction box are included.
- A three–wire system is needed to operate the oscillation mechanism independent of the fan blades.
- Standard Equipment:
- 3-speed decora style wall control
- Side-mounted wall junction box
Airflow/Energy Efficiency
- RPM (Low/High): 1213 / 1495
- CFM (Low/High): 868 / 1303
- Watts (High): 47.68
- CFM/Watt (High): 27.32
Dimensions
- Width: 13"
- Height: 20"
- Motor Type: AC
- Weight: 14 lbs
