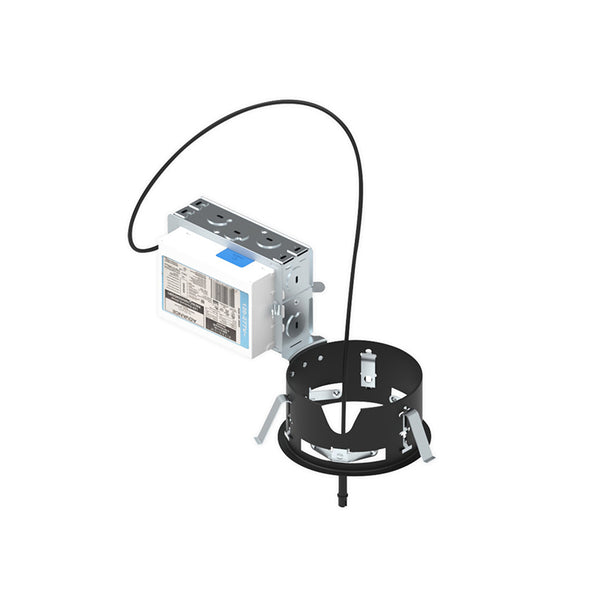

Remodel Frame-In for 4" Sapphire III COB LED downlights includes three steel springs to secure the collar to the ceiling.
Features
- Trim sold separately
- Wattage: 38W
- Voltage: 120V
- Lumens: 3500
- Dimming: Phase Dimming (Triac/ELV), 0-10V Dimming
- Designed for installation in existing ceilings
- Three high tension tempered steel springs secure remodel housings evenly to the ceiling; hole cutout template provided for convenience
- Remodel frame-in accommodates ceiling thickness from 1/2" to 1-1/4"
- Frames require a minimum of 3" from thermal insulation and 1/2" from adjacent building component
Dimensions
- Length: 10.5"
- Width: 5.38"
- Height: 7.25" max
- Cut-out: 4.69"
