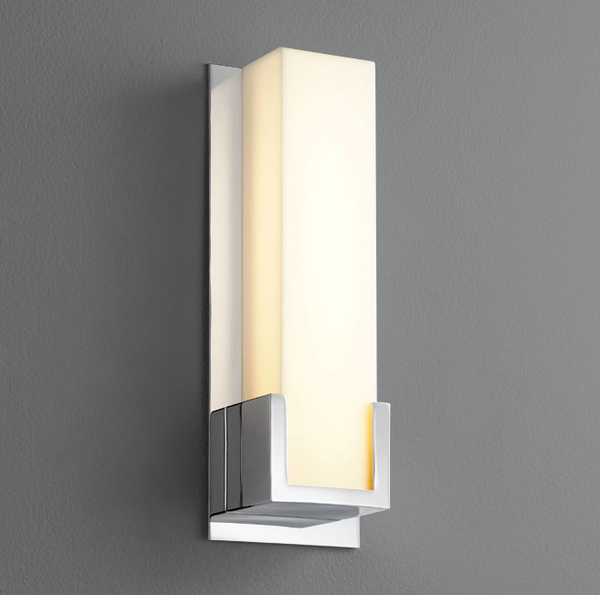

Orion 1-lt LED Wall Sconce
Features
- Finish: Polished Chrome, Satin Nickel, Aged Brass
- Material: Plated Steel
- Diffuser: Matte White Acrylic
- Wattage: 12.1W
- Voltage: 120V to 277V
- Color Temperature: 2700K, 3000K, 3500K, 4000K
- Delivered Lumens: 926 lm
- CRI: 90
- Cold rolled steel backplate and trim
- Acrylic shade is 1/8”
- Driver mounts inside junction box
- Unit mounts to a horizontal deep 2”x3” junction box, 4” octagonal junction box or a 4”x4” junction box with a single device mud ring
- Unit requires 2.5” deep junction box
- Driver mounts inside junction box
- Approved for wall mounting applications only
- TRIAC and ELV dimming at 120V AC; 0-10V dimming, 100% to 10% current output
Dimensions
- Width: 4.75"
- Height: 13.5"
- Extension: 2.75"
- Weight: 4.51 lbs
Lamping
- 1 x 12.1W LED (Included)
