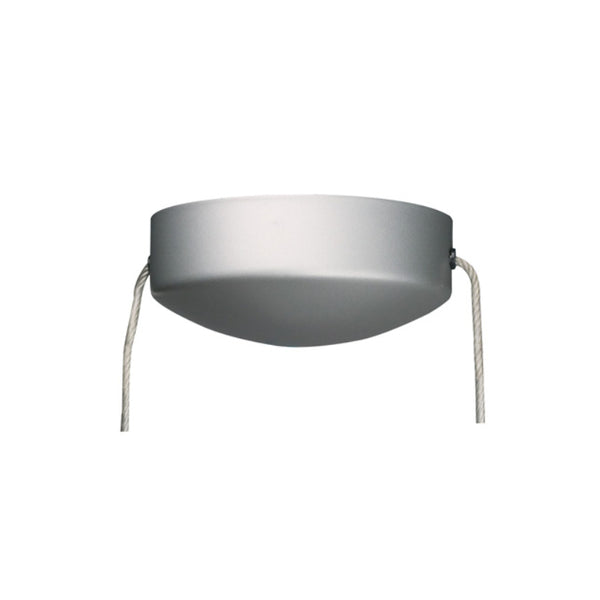

This single-feed flush transformer converts standard 120 line-voltage to 12 volts to provide the necessary voltage for powering a Kable Lite low-voltage lighting system.
Features
- Type: Electronic
- Input Voltage: 120V
- Output Voltage: 12V
- Wattage: 60W (for LED loads)
- Feed: Single Feed
- Finish: Chrome, Satin Nickel
- It can power lamps totaling up to 60 watts
- The transformer,concealed by a decorative canopy, fits in junction box and features a fast acting secondary circuit breaker that will safely turn the system off should a short occur
- Once the short has been removed the unit can be reset by simply flipping the wall switch off and back on
Dimensions
- Width: 5.1"
- Height: 2.2"
- Weight: 1 lbs
