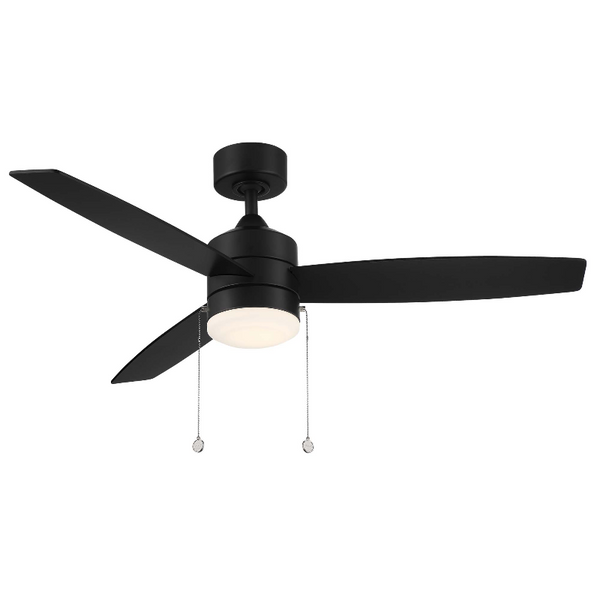

ATLANTIS from WAC LIMITED offers a Damp rated, high-value fan with three speed options and can be reversed from the housing to pull hot air up during winter months. Enhance your interiors with the gently-curved shape of this elegant fan.
Features
- Finish/Blades:
- Matte Black with Matte Black Blades
- Matte White with Matte White Blades
- Construction: Steel and Plywood Blades
- Blade Pitch: 13º
- Three blades
- 3 Speed Reversing
- Voltage: 120V
- Pull chain operation
Airflow/Energy Efficiency
- Airflow: 5009 cubic ft per minute on high
- Power: 63 watts on high
- Airflow Efficiency: 92 cubic ft per minute per watt
- Revolutions Per Minute: 188 RPMs on high
Dimensions
- Blade Sweep: 52"
- Height: 15.7"
- Downrod: 0.75" W x 6" H (Included)
- Leadwire: 80"
- Ceiling to Blade Height: 10.5"
- Mounting Slope: Up to 30º
- Motor Type: 153 x 16 AC Motor
Lamping
- 19.5W LED (Included)
- Color Temperature: 3000K
- Lumens: 1600
- Delivered Lumens: 708
- CRI: 90
- Dimmable - 0-10v dimmer
- Rated Life: 50,000 Hours
