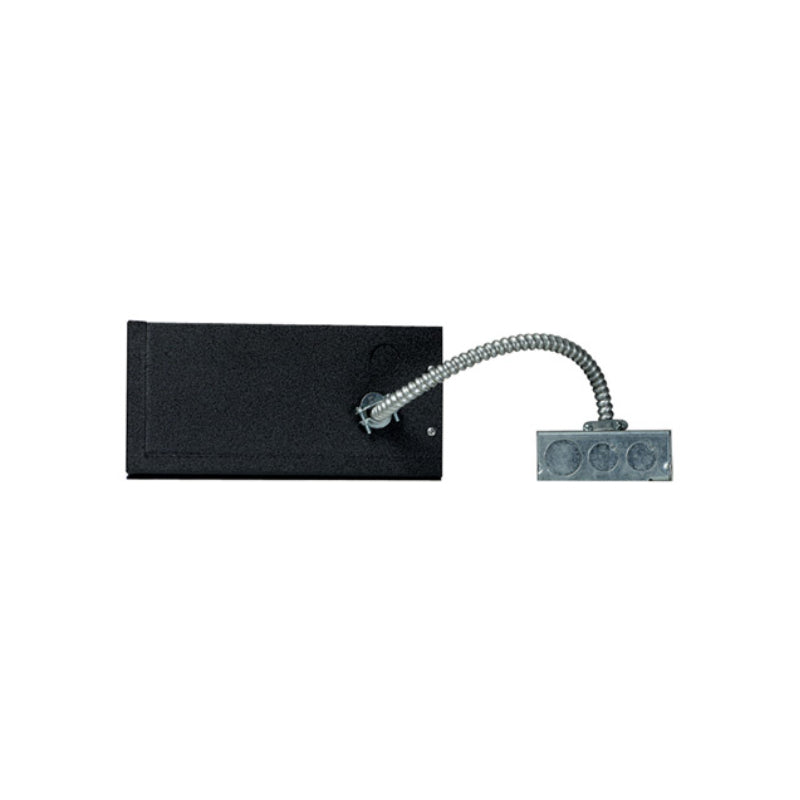

Tech 700AT3024 Remote Transformer, 300 Watts, 24V Magnetic, Single Feed

Tech LightingSKU: 700AT3024T
filler

Voltage: 120V Input/24V Output
Price:
$396
Stock:
In stock (42 units), ready to be shipped

Description

This remote magnetic transformer converts standard 120 or 277 volt line-voltage to 24 volts, providing the necessary voltage for powering a MonoRail, Kable Lite, Wall MonoRail or FreeJack low-voltage lighting system

Features

  • Type of Transformer: Magnetic
  • Input Voltage: 120V, 277V
  • Output Voltage: 24V
  • Wattage: 300 Watts
  • Feed: Single Feed
  • Single feed transformer converts 120 line voltage to 24V to provide the necessary voltage for powering a monorail, kable lite, wall monorail or freejack low-voltage lighting system
  • It can power lamps totaling up to 300 watts
  • This transformer is equipped with a fast acting secondary circuit breaker that will safely turn the system off should a short occur
  • Once the short has been removed the breaker can be reset
  • The transformer must be installed in a remote but accessible location (such as above the ceiling or in a closet)
  • To simply the installation, the transformer should be located no more than 20-ft from the run or power feed
  • The electrician will need to supply the proper gauge conductor fromt the transformer to the power feed location based on distance
  • Dimmable with 600W low voltage magnetic dimmer. The dimmer is placed on the line side of the transformer
  • Dimming a transformer may create a buzzing sound, which may be objectionable in some applicaitons. A debuzzing dimming coil can be purchased separately to reduce the audible noise
  • The transformer provides a single 300W output and must be used with a single-feed canopy or other power feed option (sold separately)
  • 24V transformers require the use of 24V lamps

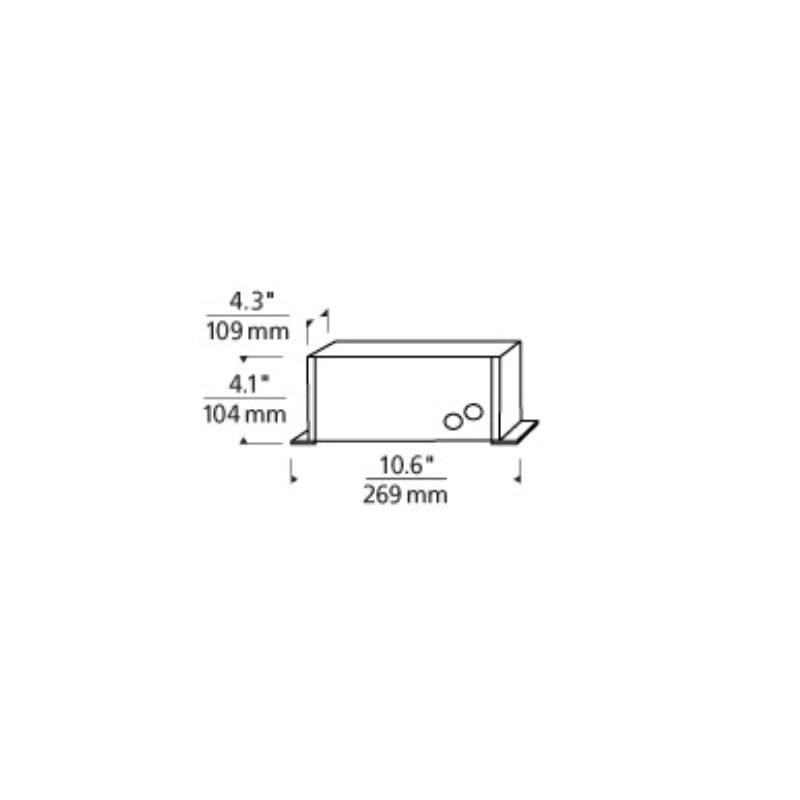

Dimensions

  • Length: 10.6"
  • Width: 4.3"
  • Height: 4.1"
  • Product Weight: 9.02 lbs
