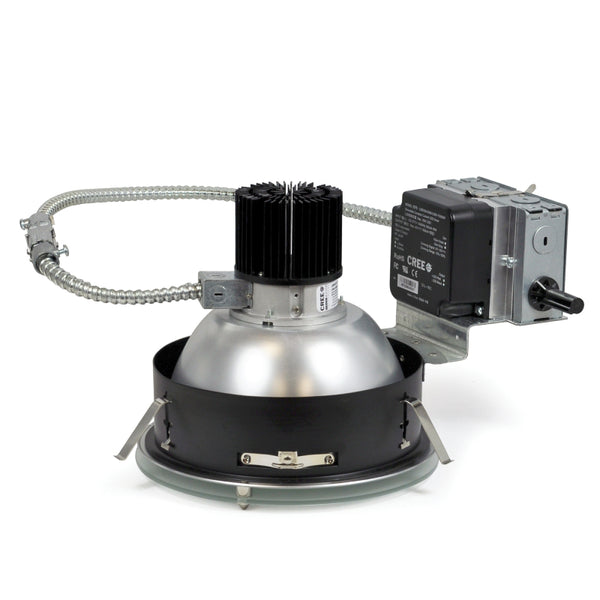

Architectural grade LED High Lumen Downlights featuring deep cone reflectors. Dimmable Cree LEDs and Cree LED drivers make for a solid, complete and tested package.
Features:
- Trim sold separately
- Wattage/ Lumens: 81W/ 6000 lm, 104W/ 8000lm
- LED Module: Cree TrueWhite
- Driver: 120V Input; 0-10V dimming, 277V Input; 0-10V dimming, 120V Input; Triac/ELV dimming
- Plaster Frame: Architectural quality 0.050 galvanized steel ring riveted to elevated 0.064 steel junction box and driver tray
- Designed for installation in existing ceilings
- Three high tension tempered steel springs secure remodel housings evenly to the ceiling; hole cutout template provided for convenience
- Minimum Clearances: Non-IC fixtures require minimum clearances of 3" from thermal insulation and 1/2" from adjacent building components
Dimensions
- Length: 13"
- Width: 8-1/2"
- Height: 9-1/4"
- Cutout: 8-3/16"
Lamping:
- 81W LED, 6000 lm or
- 104W LED, 8000 lm
