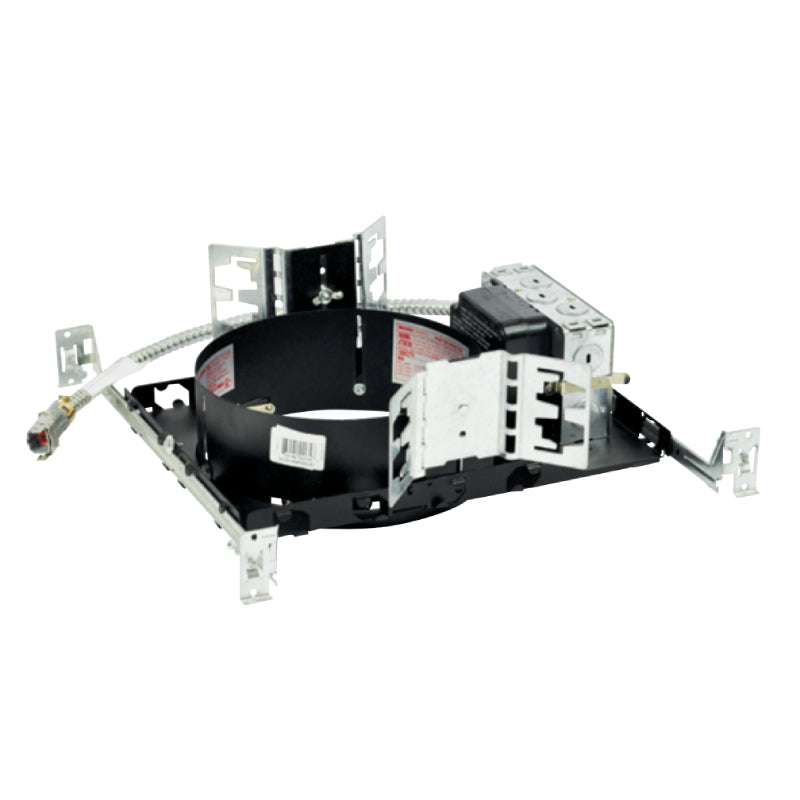

Nora NCAH-830 8" LED Sapphire High Lumen Universal Frame-In Kit

Architectural grade LED High Lumen Downlights featuring deep cone reflectors. Dimmable Cree LEDs and Cree LED drivers make for a solid, complete and tested package.

Features:

• Trim sold separately
• Wattage/ Lumens: 81W/ 6000 lm, 104W/ 8000lm
• LED Module: Cree TrueWhite
• Driver: 120V Input; 0-10V dimming, 277V Input; 0-10V dimming, 120V Input; Triac/ELV dimming
• Plaster Frame: Architectural quality 0.050 galvanized steel ring riveted to 0.064 steel junction box and driver tray. Plaster frame opening includes (3) "butterfly" spring clips to hold reflector assembly in place
• Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2" conduit
• Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame
• Minimum Clearances: Non-IC fixtures require minimum clearances of 3" from thermal insulation and 1/2" from adjacent building components

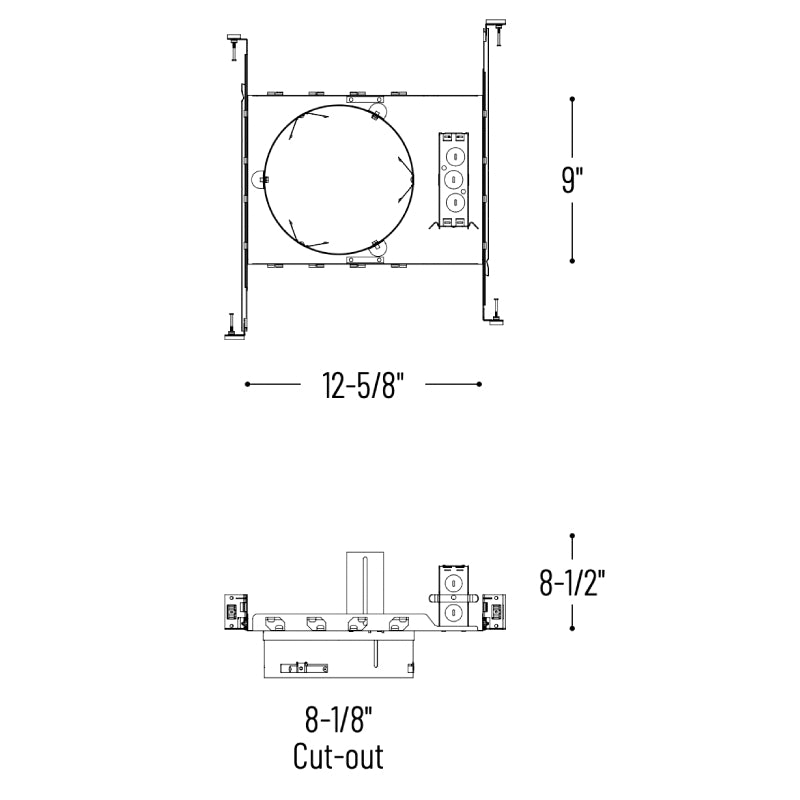

Dimensions

• Length : 12-5/8"
• Width: 9"

• Height: 8-1/2"
• Cutout: 8-1/8"

• 81W LED, 6000 lm or

• 104W LED, 8000 lm

Documents:

• Spec Sheet
• Instruction Sheet
