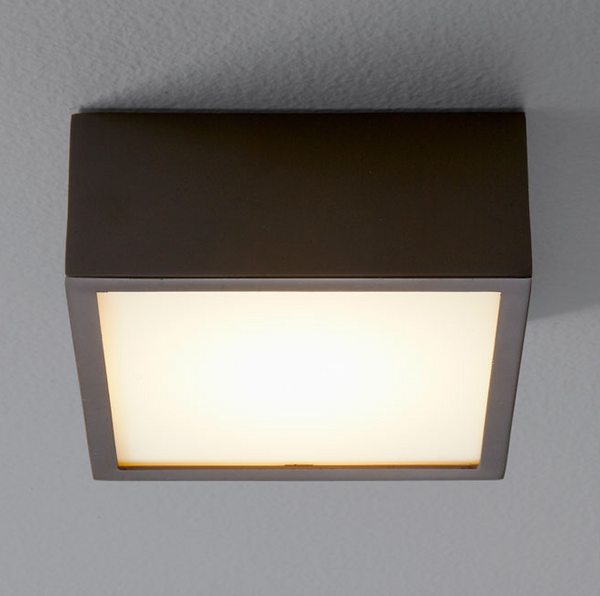

The Pyxis collection merges minimalist geometry with modern performance, delivering a sleek ADA-compliant solution for ceiling or wall applications.
Features
- Finish: Oiled Bronze, Satin Nickel, Aged Brass
- Material: Plated Steel
- Diffuser: Matte White Acrylic
- Wattage: 10.1W
- Voltage: 120V to 277V
- Color Temperature: 2700K, 3000K, 3500K, 4000K
- Delivered Lumens: 518 lm
- CRI: 90
- Cold rolled steel housing
- Diffuser is 1/16” thick white acrylic
- Approved for ceiling and wall mounted applications
- Driver mounts inside junction box
- Unit mounts a 4” octagonal junction box
- Unit requires 2.5” deep junction box
- TRIAC and ELV dimming at 120V AC; 0-10V dimming, 100% to 10% current output
Dimensions
- Length: 4.75"
- Width: 4.75"
- Height: 2"
- Weight: 3.01 lbs
Lamping
- 1 x 10.1W LED (Included)
