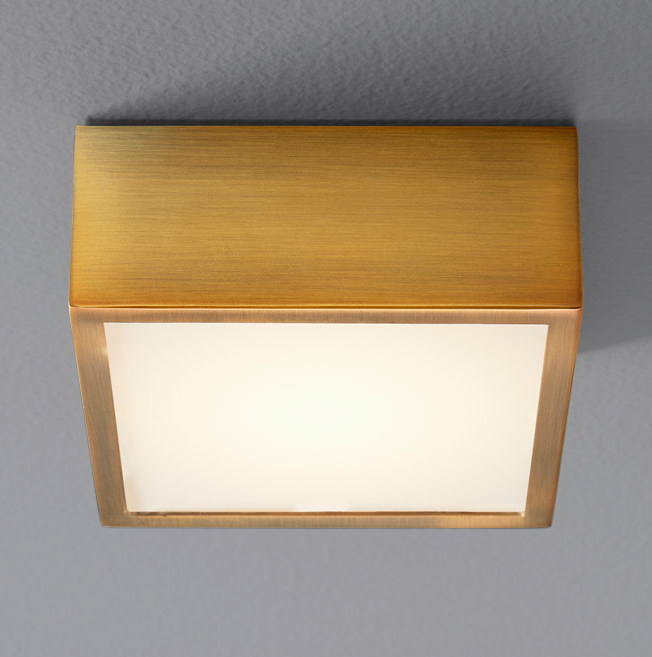

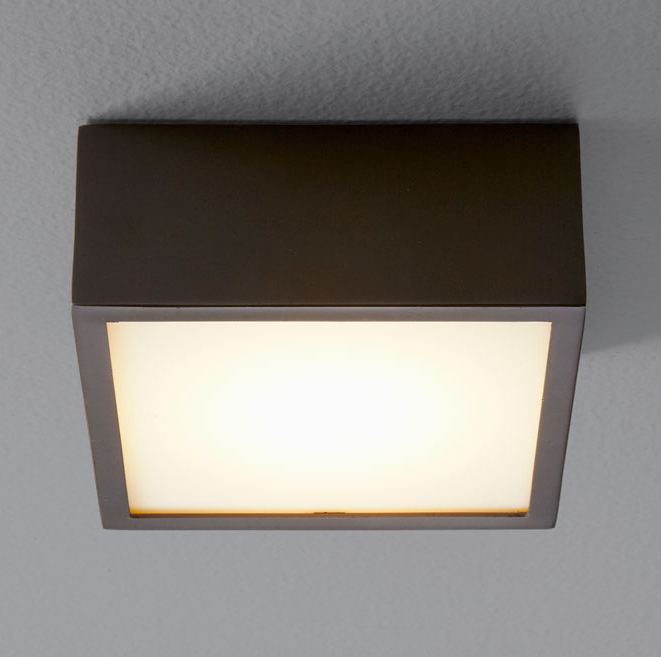

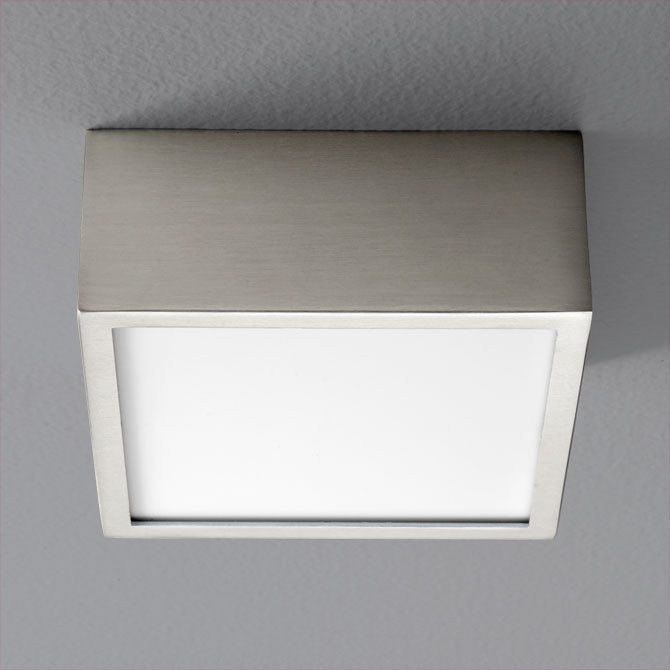

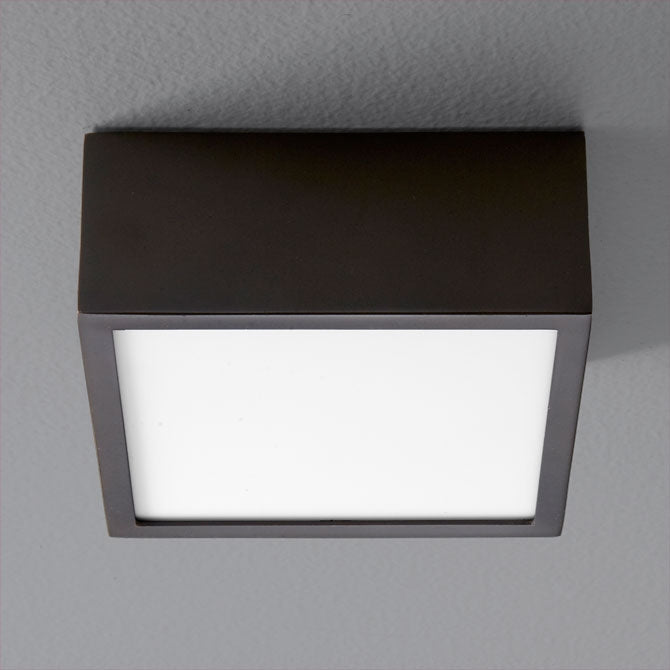

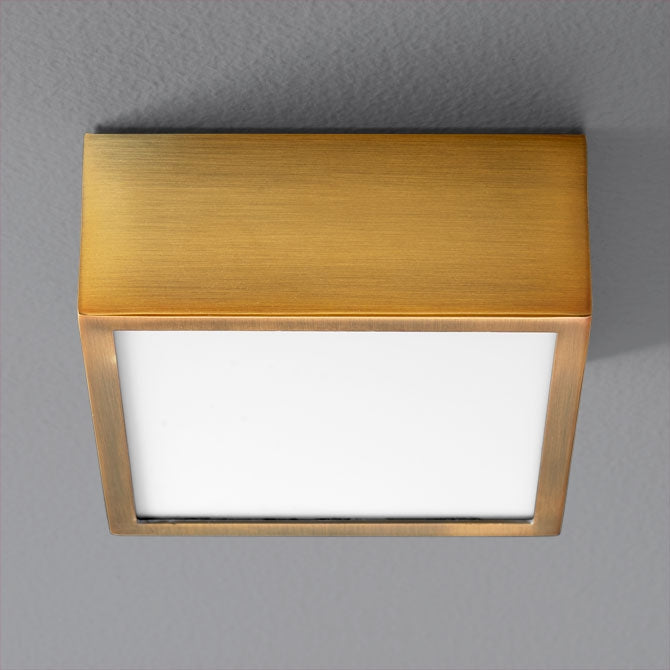

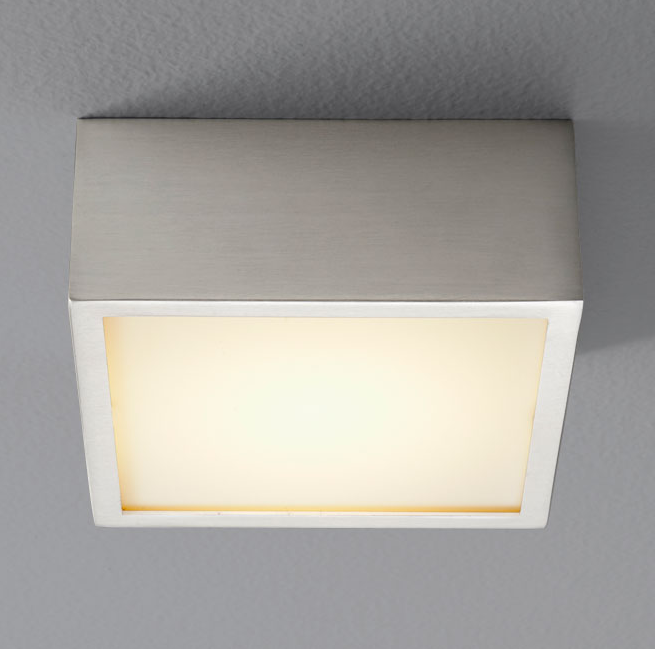

Oxygen 3-610 Pyxis 1-lt 5" LED Ceiling Mount

The Pyxis collection merges minimalist geometry with modern performance, delivering a sleek ADA-compliant solution for ceiling or wall applications.

Features

• Finish: Oiled Bronze, Satin Nickel, Aged Brass
• Material: Plated Steel
• Diffuser: Matte White Acrylic
• Wattage: 10.1W
• Voltage: 120V to 277V
• Color Temperature: 2700K, 3000K, 3500K, 4000K
• Delivered Lumens: 518 lm
• CRI: 90

• Cold rolled steel housing
• Diffuser is 1/16” thick white acrylic
• Approved for ceiling and wall mounted applications
• Driver mounts inside junction box
• Unit mounts a 4” octagonal junction box
• Unit requires 2.5” deep junction box
• TRIAC and ELV dimming at 120V AC; 0-10V dimming, 100% to 10% current output

Dimensions

• Length: 4.75"
• Width: 4.75"

• Height: 2"
• Weight: 3.01 lbs

Lamping

• 1 x 10.1W LED (Included)

Documents

• Spec Sheet
• Instruction Sheet
