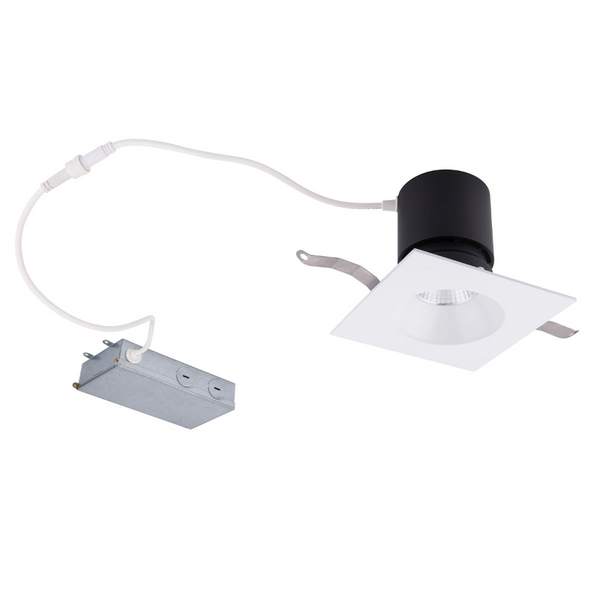

Minimum profile downlight with driver and electrical connection box attached to fixture for easy remodel or new construction installation.
Features
- Finish: White
- Construction: Die-cast Aluminum
- Lens: Reflector with Film
- Type: Airtight, IC Rated
- Trim Shape: Square
- Voltage: 120-277V
- Color Temperature: 2700K/3000K/3500K/4000K/5000K (Selectable CCT)
- Delivered Lumens: 1035lm
- CBCP: Up to 3045
- CRI: 90
- ELV Dimming: 100-5%
- TRIAC Dimming: 100-5%
- Beam Spread: 25°, 45°
- Rated Life: 50,000 Hours
- Mounting: Heavy gauge rentention clips secures fixture to ceiling
- Twist-on trim with removable film to adjust beam angle
- Silicon gasket on adjustable to prevent vision past ceiling level
- Driver included
Dimensions
- Aperture Size: 3"
- Width: 4.75"
- Height: 4.13"
- Ceiling Cutout: 4.25" Dia.
- Ceiling Thickness: 0.5" - 1.5"
Lamping
- 12W Integrated LED (Not Included)
