WAC R3HSDR-F9CS 3" Square Downlight Recessed

Save $10.50
WAC LightingSKU: R3HSDR-F9CS-WT
filler

Price:
$94.45 $104.95
Stock:
In stock (311 units), ready to be shipped

Description

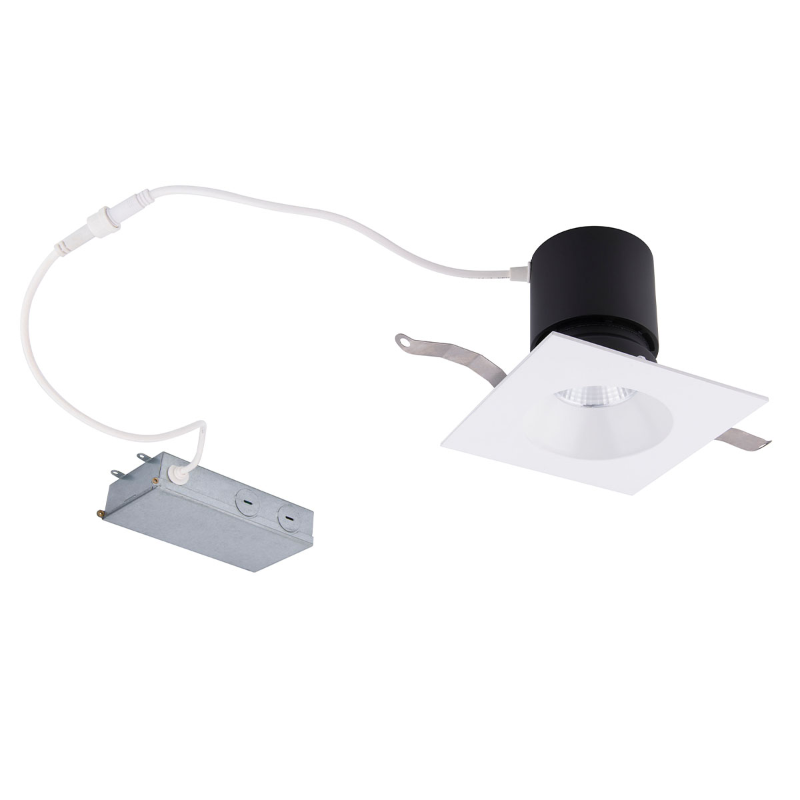

Minimum profile downlight with driver and electrical connection box attached to fixture for easy remodel or new construction installation.

Features

  • Finish: White
  • Construction: Die-cast Aluminum
  • Lens: Reflector with Film
  • Type: Airtight, IC Rated
  • Trim Shape: Square
  • Voltage: 120-277V
  • Color Temperature: 2700K/3000K/3500K/4000K/5000K (Selectable CCT)
  • Delivered Lumens: 1035lm
  • CBCP: Up to 3045
  • CRI: 90
  • ELV Dimming: 100-5%
  • TRIAC Dimming: 100-5%
  • Beam Spread: 25°, 45°
  • Rated Life: 50,000 Hours
  • Mounting: Heavy gauge rentention clips secures fixture to ceiling
  • Twist-on trim with removable film to adjust beam angle
  • Silicon gasket on adjustable to prevent vision past ceiling level
  • Driver included

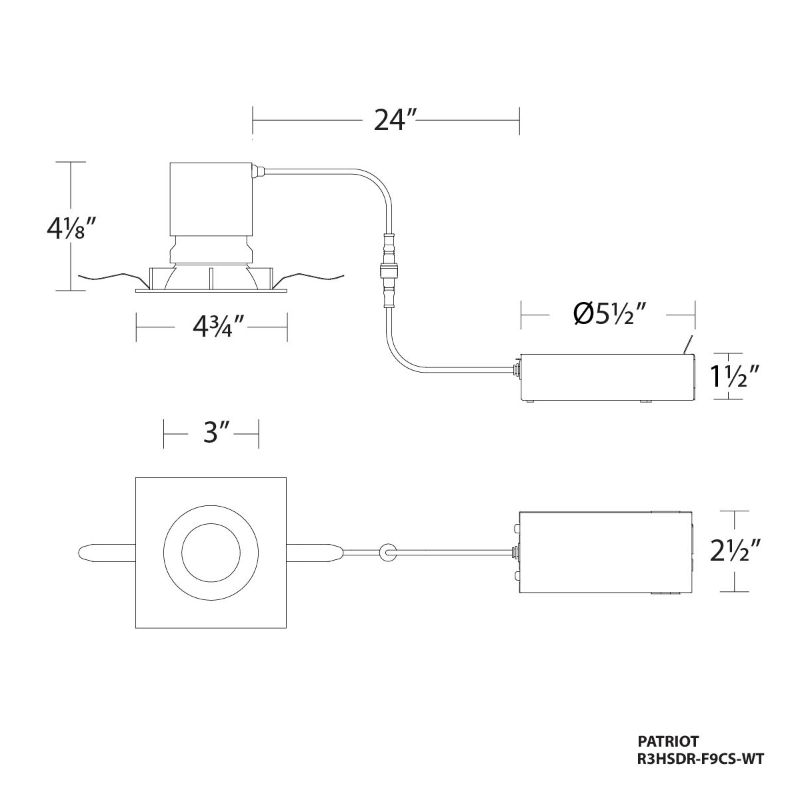

Dimensions

  • Aperture Size: 3"
  • Width: 4.75"
  • Height: 4.13"
  • Ceiling Cutout: 4.25" Dia.
  • Ceiling Thickness: 0.5" - 1.5"

Lamping

  • 12W Integrated LED (Not Included)
