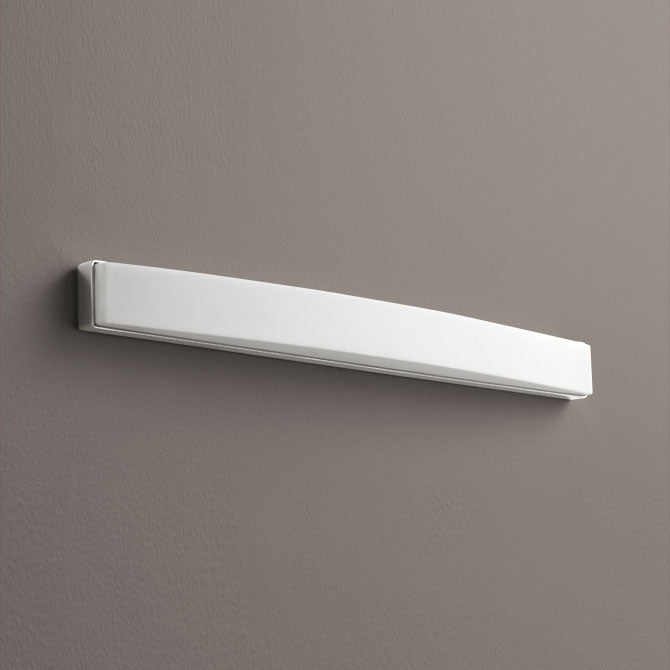

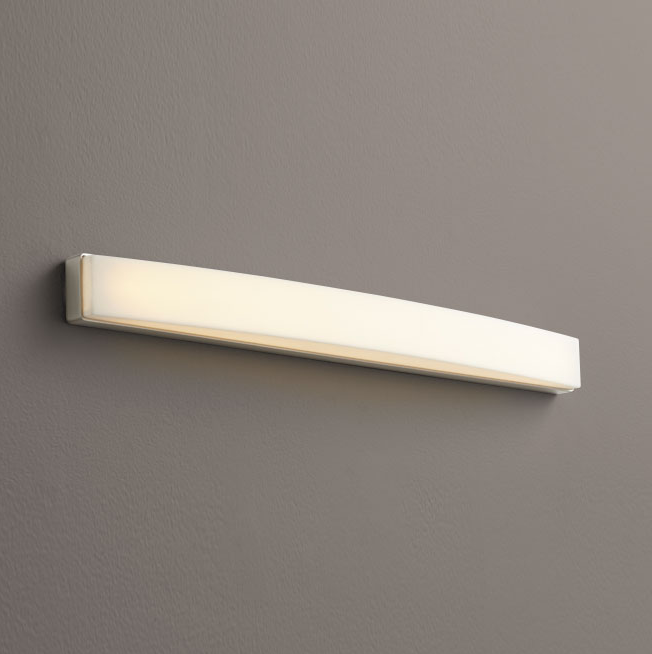

3-575 Archer 27"Wide LED Vanity
SKU 3-575-20
Original price
$0.00
-
Original price
$0.00
Original price
$520.00
$520.00
-
$520.00
Current price
$520.00
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Features:
- Finish: Polished Nickel, Satin Nickel
- Diffuser: Matte White Acrylic
- Wattage: 11.7W
- Voltage: 120V to 277V
- Color Temperature: 3000K
- CRI: 90
- Delivered Lumen: 1206 lm
- 0-10V & Phase (ELV) Dimming
- Approved for vertical and horizontal mounting
- Approved for wall mounting applications only
- Cold rolled steel housing
- Diffuser is 1/8” thick matte white acrylic
- Unit mounts to a horizontal 2”x 3” junction box ora deep 4”x 4” junction box w/ a single device mud ring
- Unit requires a 2.5” deep junction box
- TRIAC and ELV dimming at 120V AC; 0-10V dimming, 100% to 10% current output
- ADA compliant
Dimensions:
- Width: 26.75"
- Height: 2.25"
- Extension: 2.5"
Lamping:
- 1 x 11.7W LED (Included)
