Pipeline 1 Suspension 24VDC, Rotatable Modular System

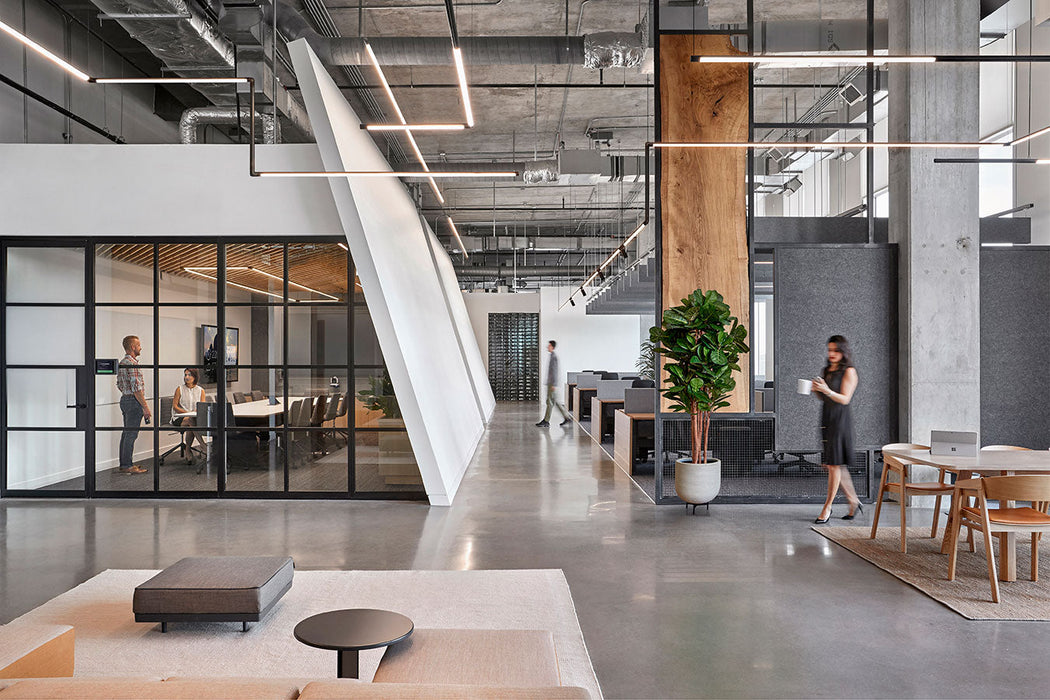

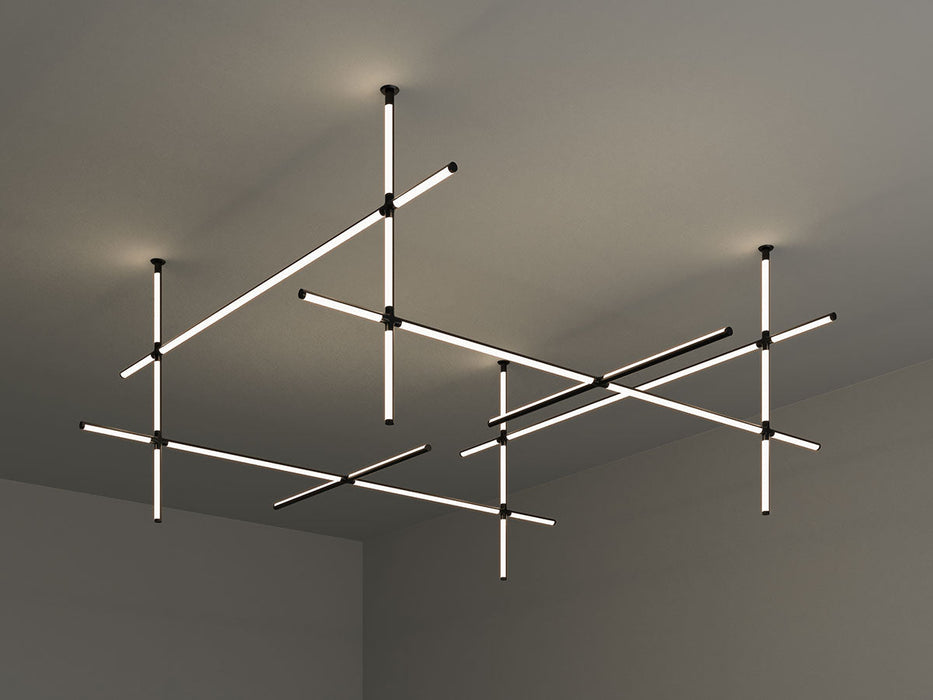

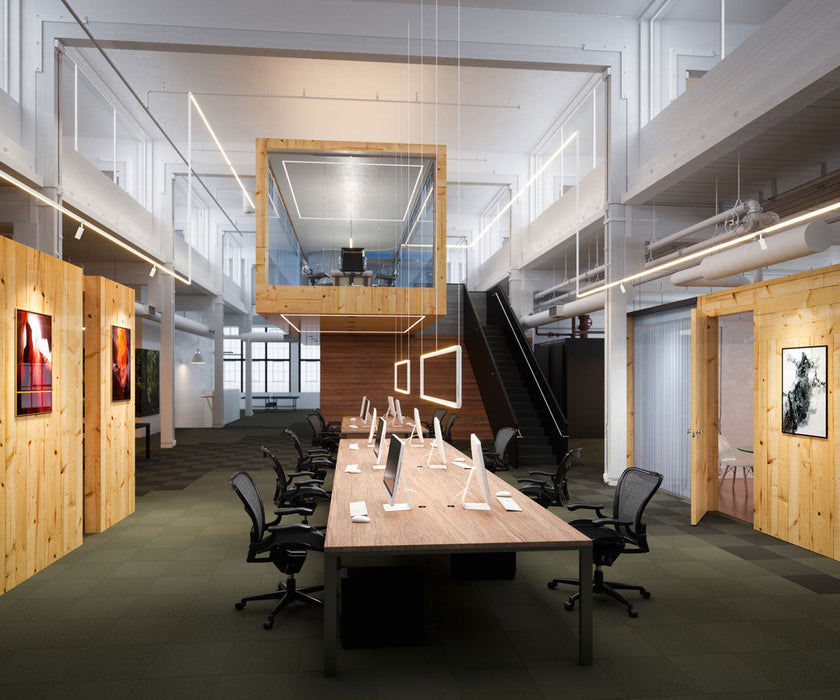

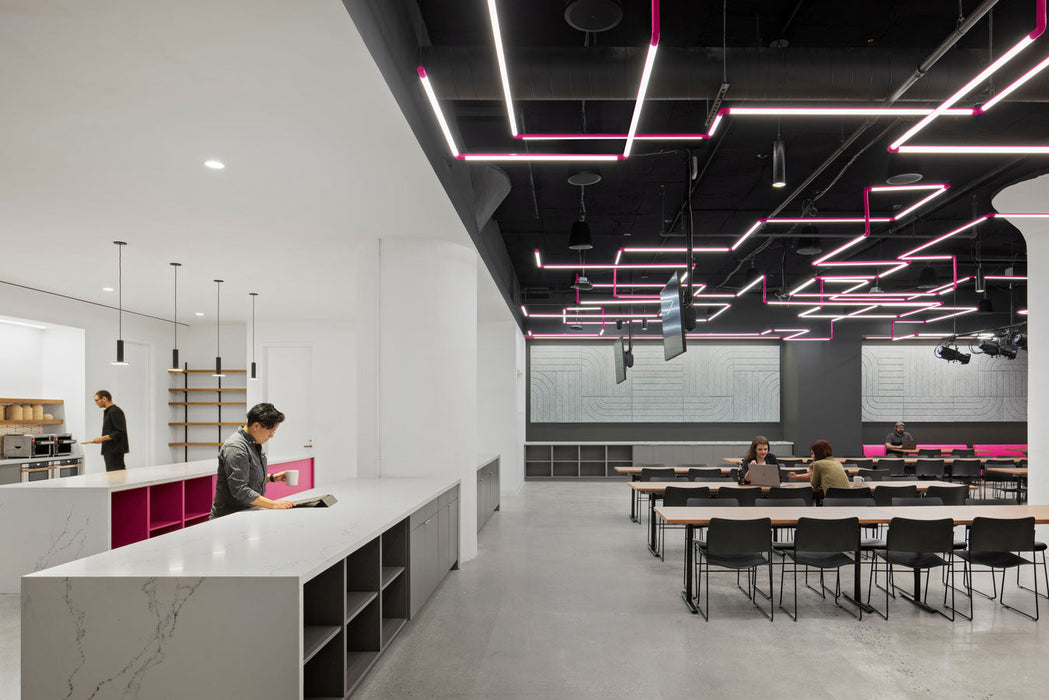

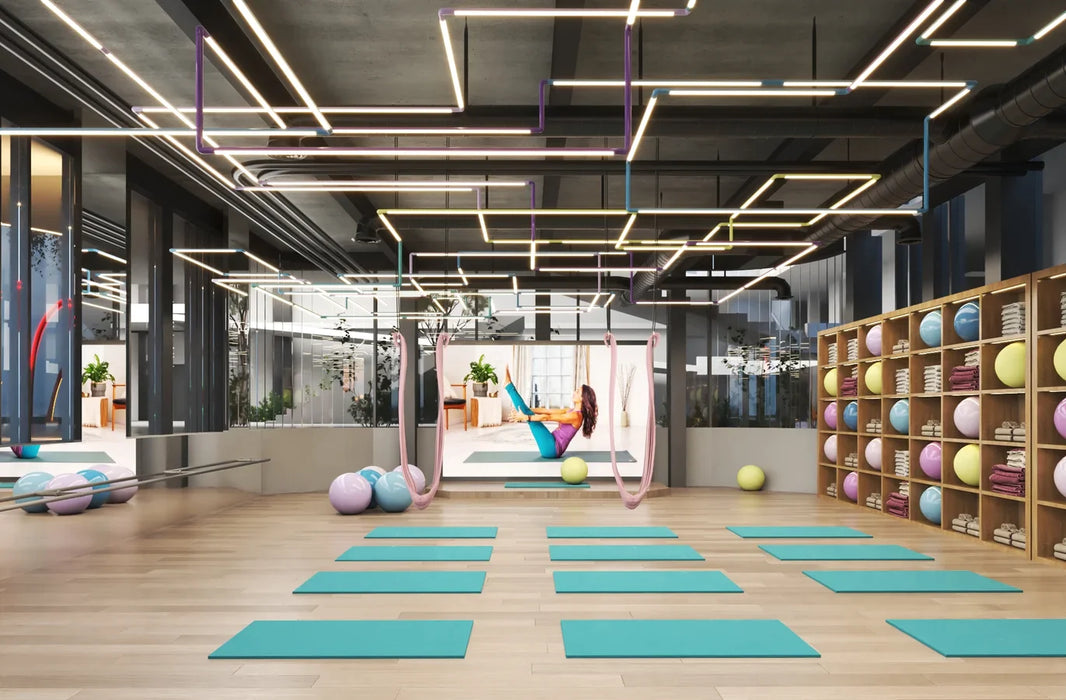

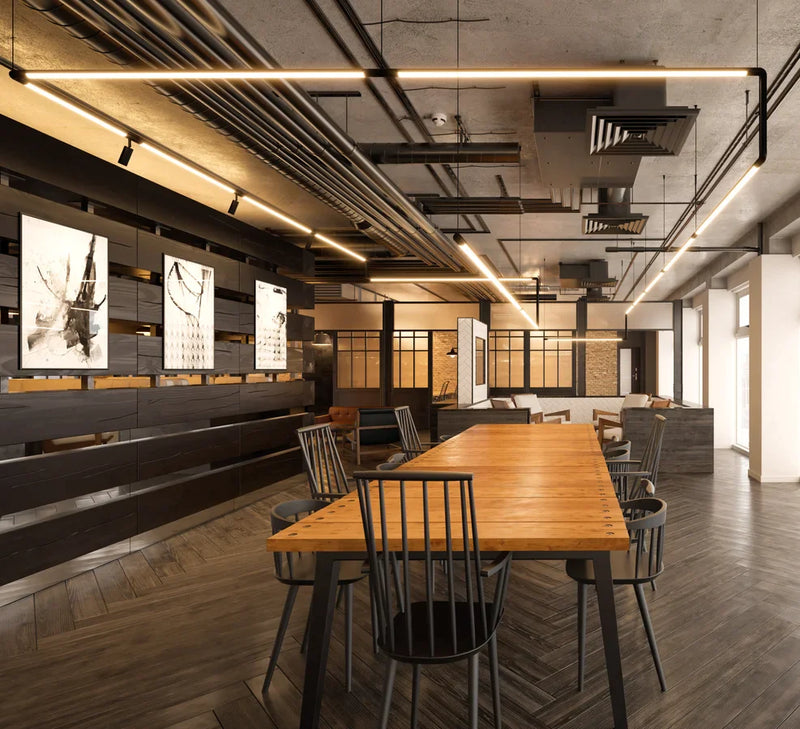

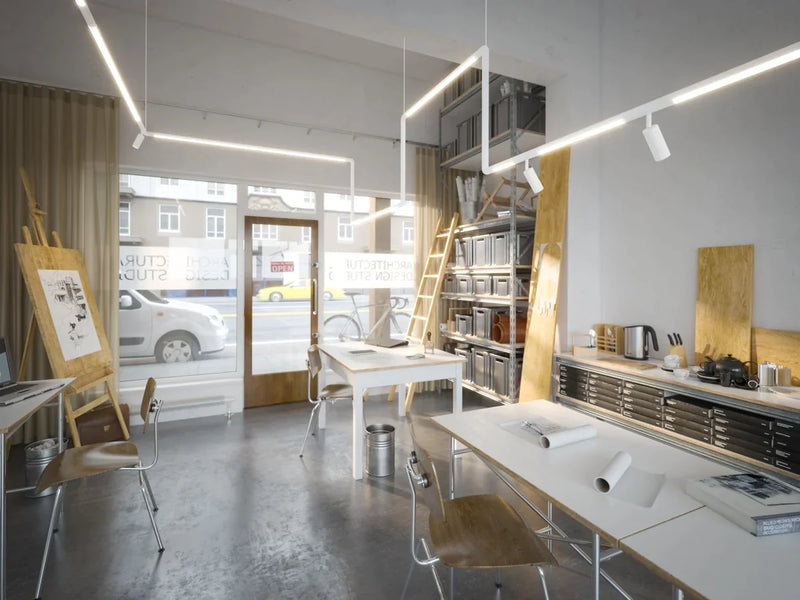

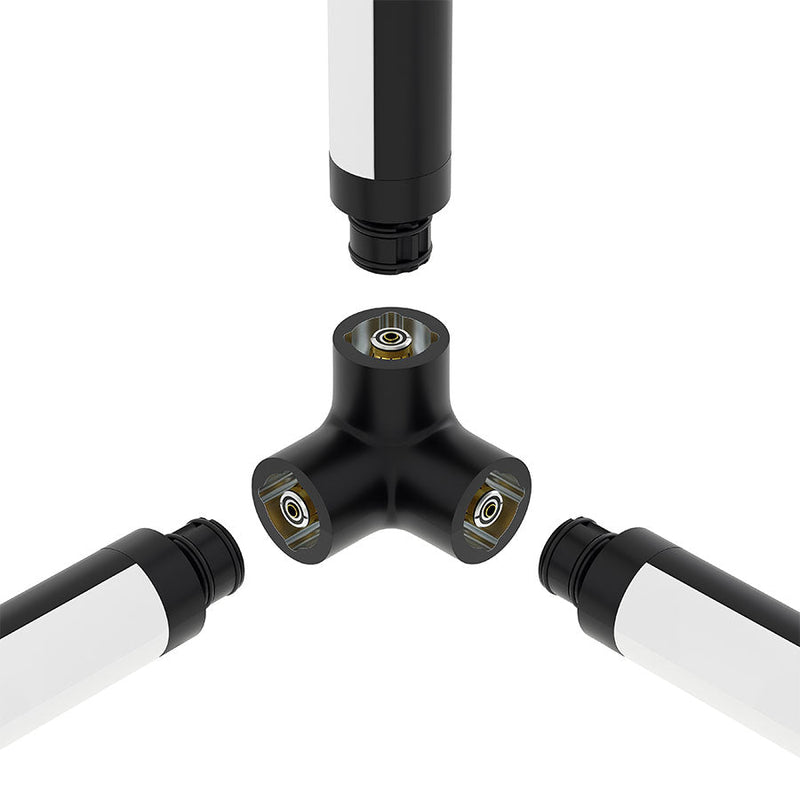

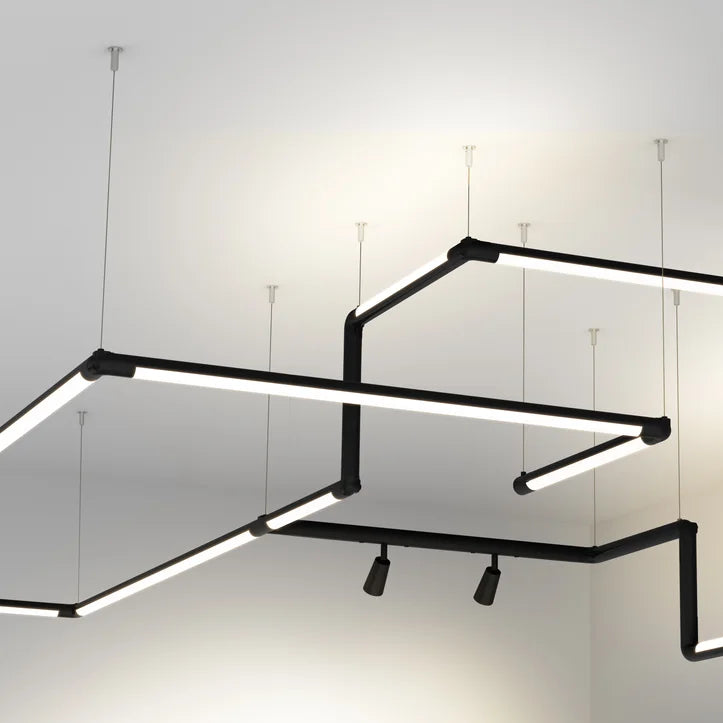

The Pipeline 1 (176° Lens) Suspension Rotatable Modular System offers sleek tubes of diffused LED light and series of connectors, allowing you to easily piece together the fixture of your dreams. Run Pipeline 1 Suspension Light and Track Channels along an exposed ceiling, turn corners or climb walls with L, T, X, Y and Flexible Connectors, all in an easy-to-install plug and play package.?

Features:

• Finish: Satin Black, Chrome, Satin Nickel, White
• Diffused White Lens without Louver
• Lamping: LED
• 3 Lumen / Wattage Options: 5, 7, or 10 Watts per foot
• Voltage: 24 VDC
• Low Profile: 1.25" diameter Channel
• Remote Power Supply: Up to 100 Watts (End Feed); or up to 2 x 100?Watts (Center Feed)
• Length Options: 12"-120" (10')

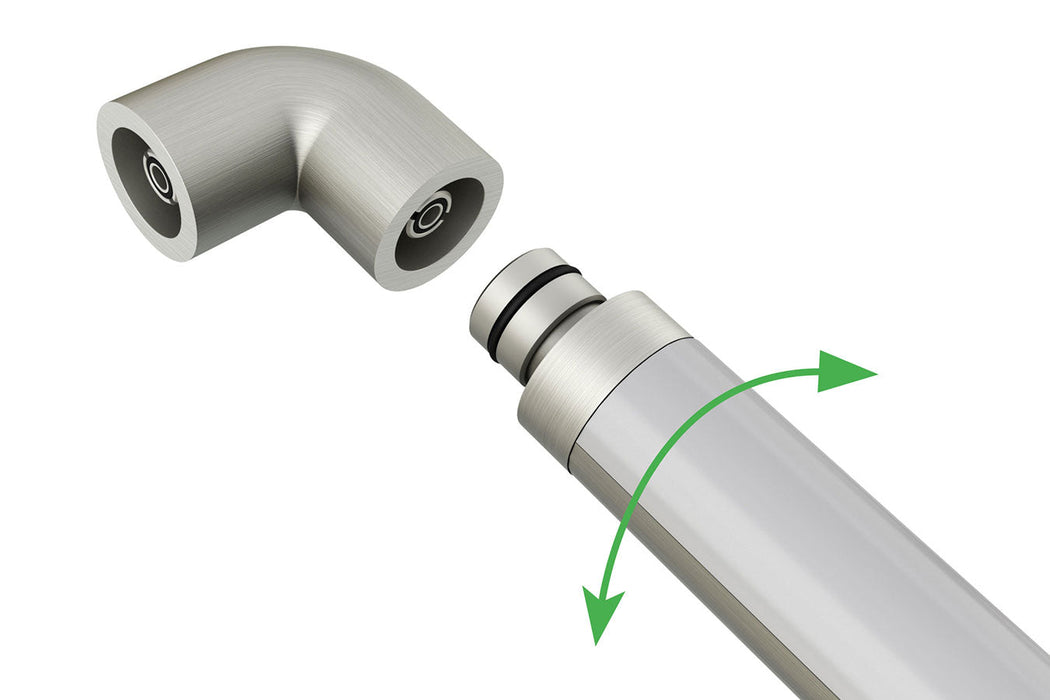

• Adjustable: 360° Rotatable Channel for direct or indirect lighting
• Beam Spread: 176 degree lens with 143 degree beam spread
• High Lumen Output: Up to 1313 lm/ft
• Lamp Life: 60,000 hours
• 9 Color Temperature Options: 2400K-4000K, and Warm Dim (27D, 30D)
• High CRI: Up to 95+

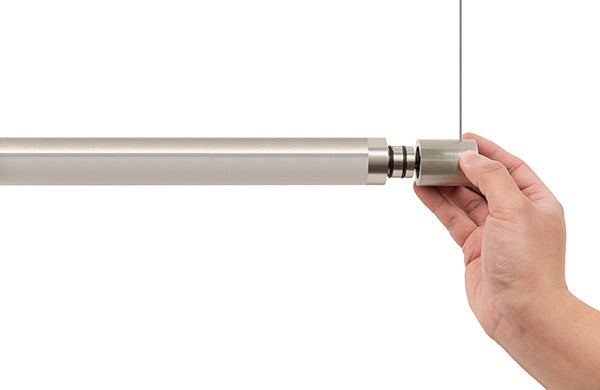

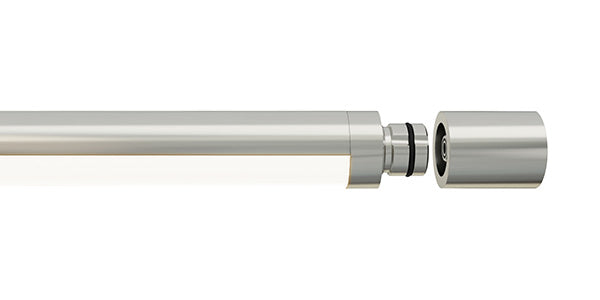

• Easy Installation: Fully Assembled Fixture with Push-In Connectors

Documents

• Spec Sheet
