Dals LNR24-CC 24" Boulevard Architectural Recessed Light, 5CCT Selectable, 120-347V

The Boulevard series, an architectural recessed lighting channel that can be installed in a wide range of commercial and residential environments. Add depth to ceiling planes with a visible separation, or seamlessly daisy-chained to create dramatic effects.

Features

• Finish: Black, White

• Wattage: 20W LED
• Voltage: 120/277/347V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable

• Delivered Lumens: 1725
• CRI: 90
• Dimming: 0-10V dimming
• Beam Angle: 108°

• Lens Material: Frosted PC
• Optic Type: Flat lens
• Housing Material: Aluminum
• Every fixture includes a junction box with integrated dimmable driver

• Can be daisy chained

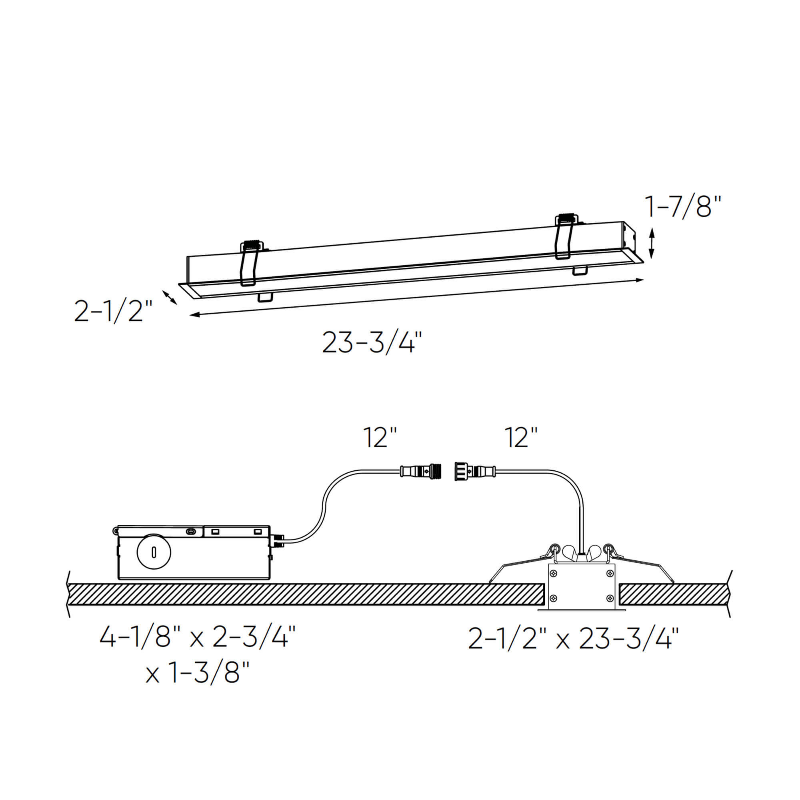

Dimensions

• Cutout: 23.25" x 2.13"

• Length: 23.75"
• Width: 2.5"
• Height: 1.88"

Estimated Life

• 50000 life hours

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet
