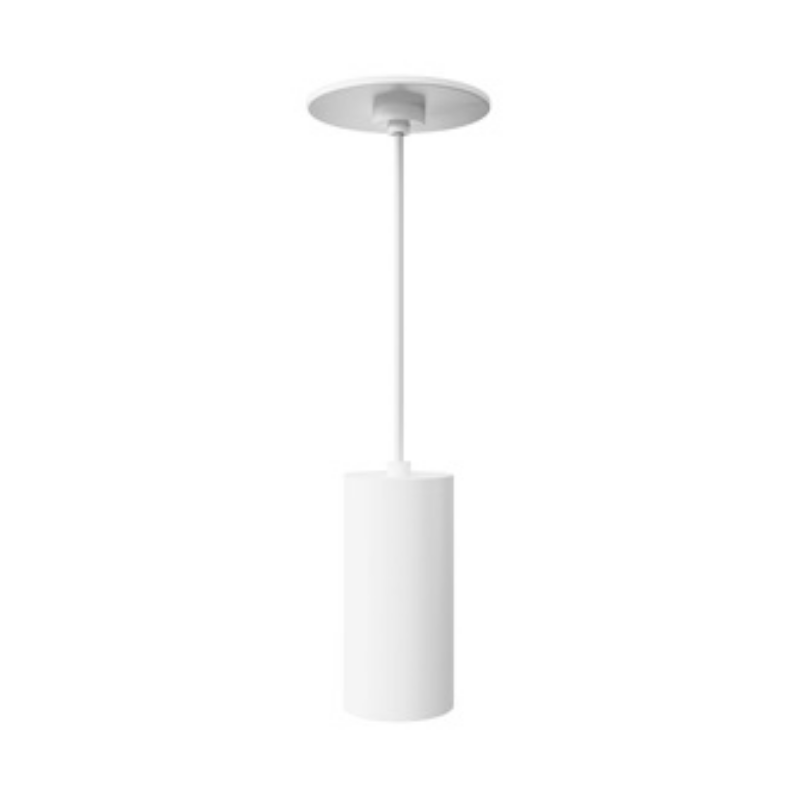

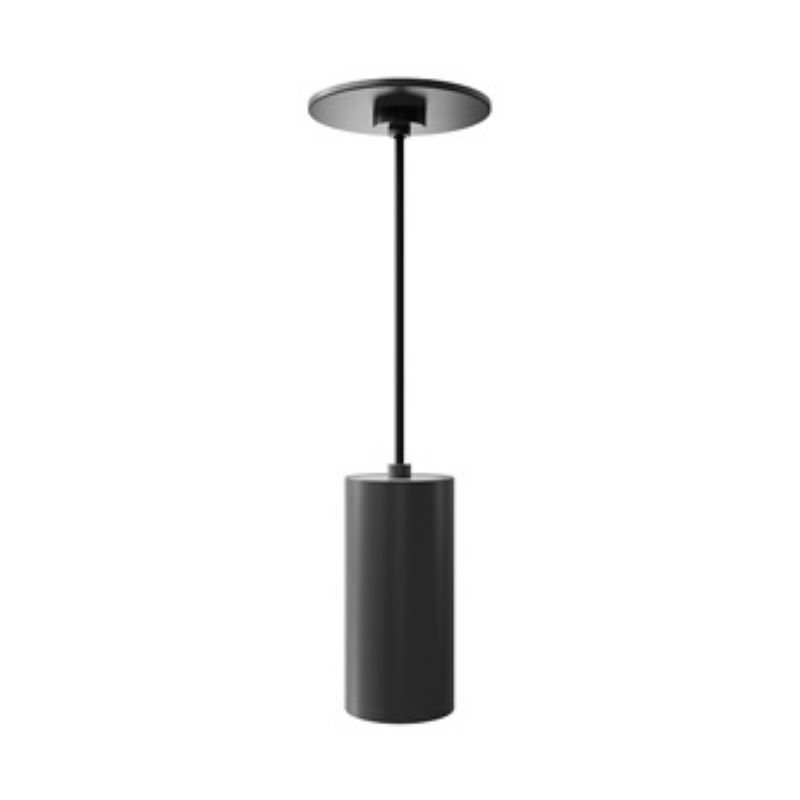

Element EC3R 3" 15W Fixed LED Cylinder, Warm Dim, Cord Mount

The ELEMENT 3" Fixed Cylinder is designed to provide a premium modern aesthetic and superior lighting performance for a wide range of applications, including residential, hospitality, and commercial spaces. With its sleek design and versatile mounting options, this lighting solution is perfect for exposed ceiling applications.

Features

• Mounting: Cord Mount (Canopy)
• Finish: Black, White
• Construction: Aluminum
• No Lens
• Wattage: 15W
• Voltage: 120/277V
• Color Temperature: Warm Dim, 3000K-1800K

• CRI: 90
• Lumens: 1178
• Dimmable: Standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1%

• 277V is only compatible with 0-10V dimming

• Beam Spread: 18°, 25°, 40°, 60°

• Color Consistency: 2-Step
• Field cuttable cord included

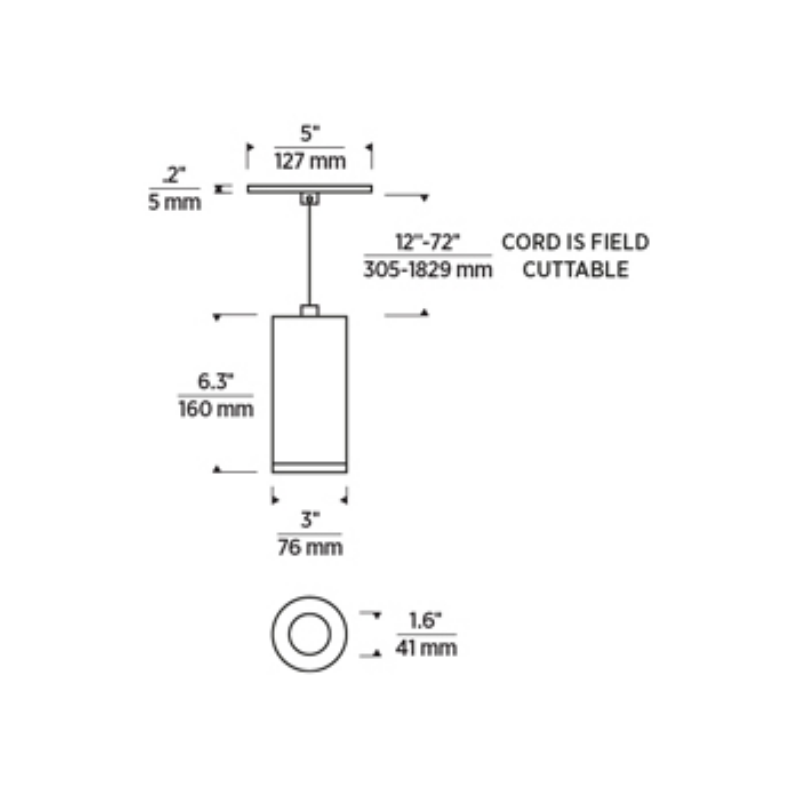

Dimensions

• Diameter: 3"

• Height: 6.3"

• Canopy: 5" Dia. x 0.2" H
• Cord Length: 6-ft

Lamping

• 15W LED (Included)

Documents

• Spec Sheet
• Instruction Sheet
