Element EC3R 3" 19W Adjustable LED Cylinder, Warm Dim, Flush Mount

ELEMENT 3" Adjustable Cylinders are the ideal lighting solution for modern residential, hospitality, and commercial spaces. With its sleek design, this cylinder offers a sophisticated aesthetic, while providing flexibility for targeted illumination. Its 0-90° tilt, 360° rotation, and interchangeable optics ensure exceptional flexibility.

Features

• Mounting: Flush Mount
• Finish: Black, White
• Construction: Aluminum

• No Lens
• Wattage: 19W
• Voltage: 120/277V
• Color Temperature: Warm Dim, 3000K-1800K

• CRI: 90
• Lumens: 1494
• Dimmable: Standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1%

• 277V is only compatible with 0-10V dimming

• Beam Spread: 18°, 25°, 40°, 60°

• Color Consistency: 2-Step
• Aiming: 0°-90° tilt and 360° rotation

• Flush mount includes an adapter plate to convert junction box before ceiling install and a remote driver enclosure for all driver options

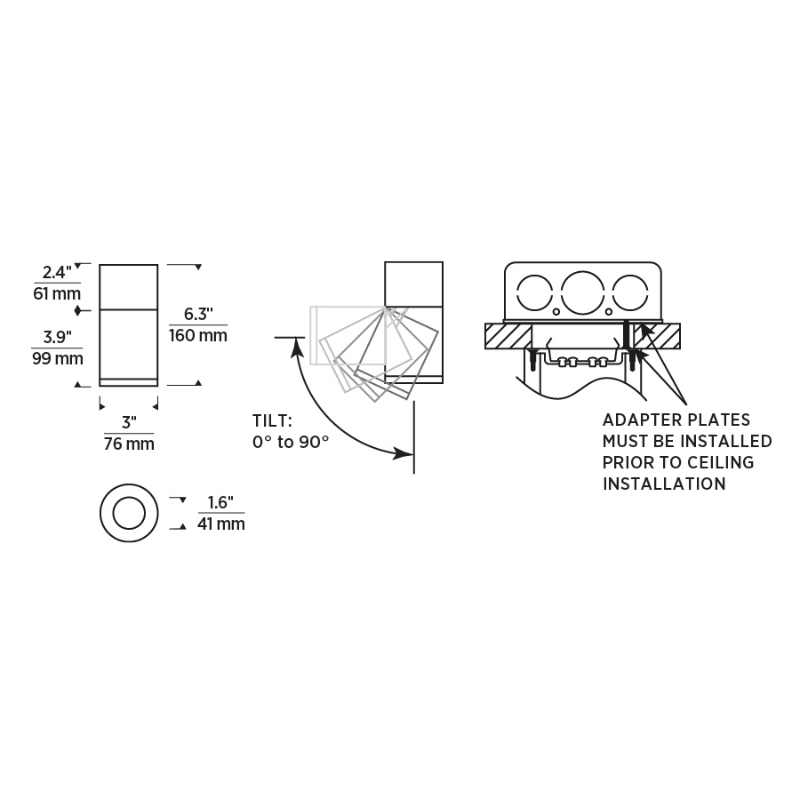

Dimensions

• Diameter: 3"

• Height: 6.3"


Lamping

• 19W LED (Included)

Documents

• Spec Sheet
• Instruction Sheet
