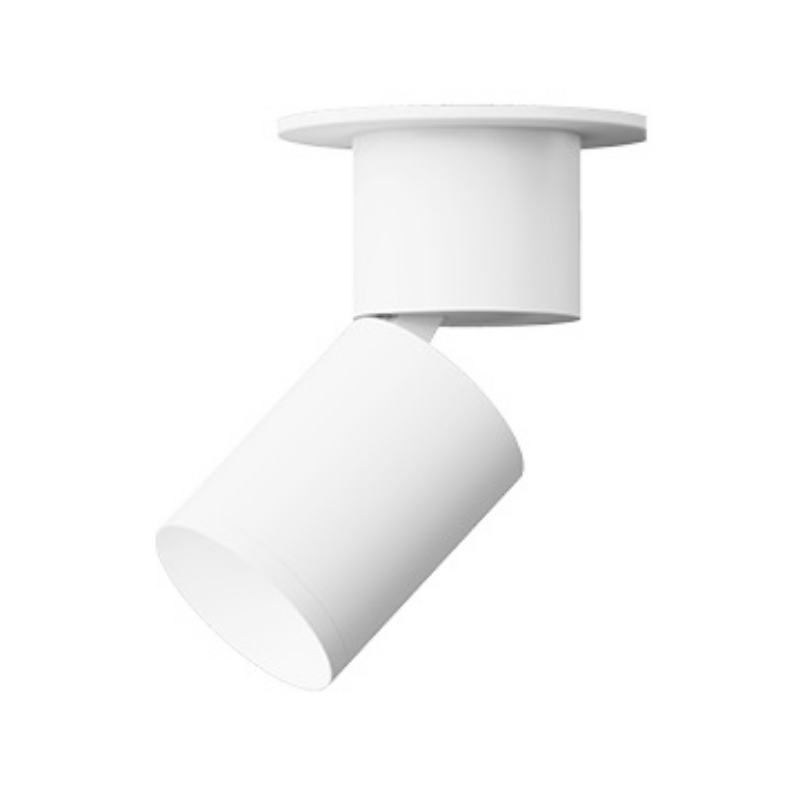

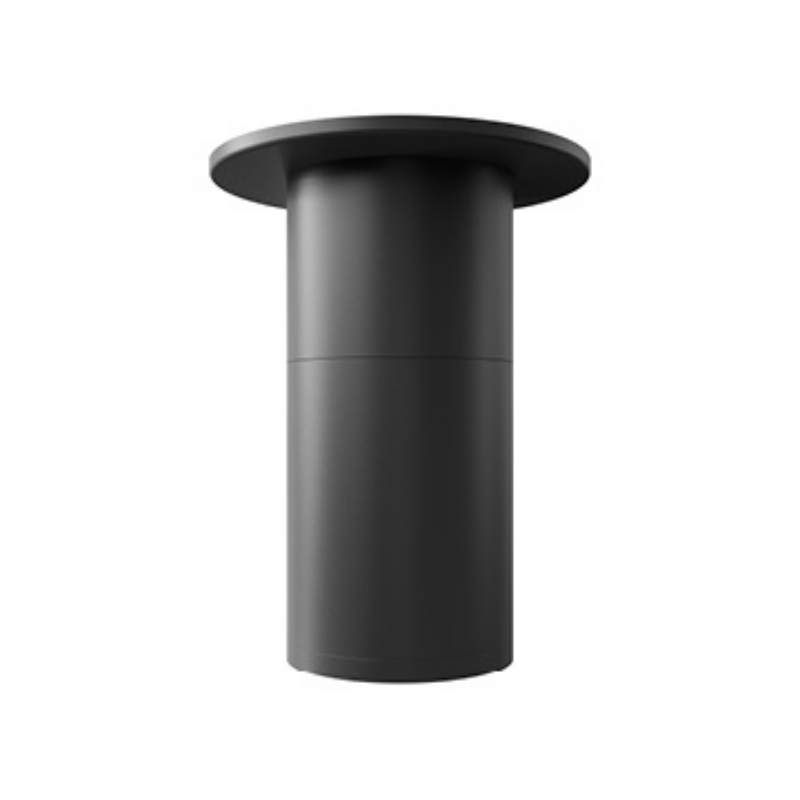

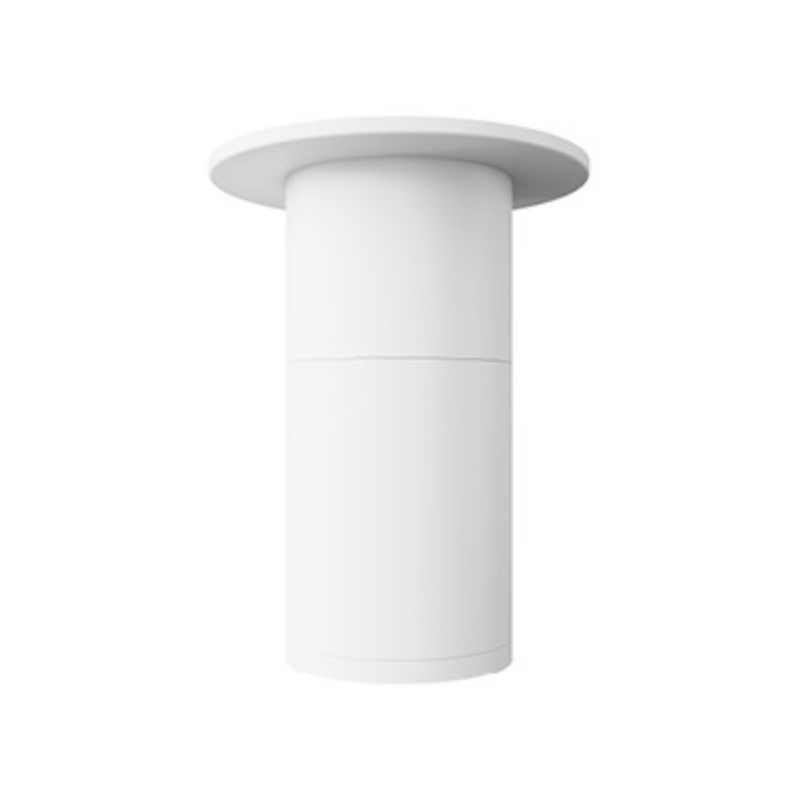

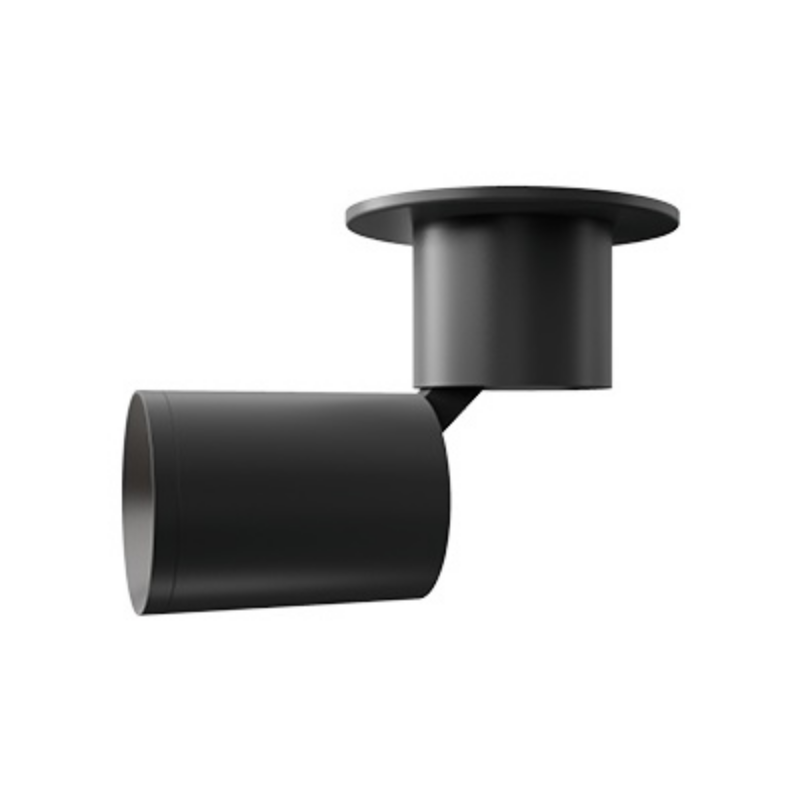

Element EC3R 3" 19W Adjustable LED Cylinder, Warm Dim, Surface Mount

ELEMENT 3" Adjustable Cylinders are the ideal lighting solution for modern residential, hospitality, and commercial spaces. With its sleek design, this cylinder offers a sophisticated aesthetic, while providing flexibility for targeted illumination. Its 0-90° tilt, 360° rotation, and interchangeable optics ensure exceptional flexibility.

Features

• Mounting: Surface Mount (Canopy)
• Finish: Black, White
• Construction: Aluminum

• No Lens
• Wattage: 19W
• Voltage: 120/277V
• Color Temperature: Warm Dim, 3000K-1800K

• CRI: 90
• Lumens: 1771
• Dimmable: Standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1%

• 277V is only compatible with 0-10V dimming

• Beam Spread: 18°, 25°, 40°, 60°

• Color Consistency: 2-Step
• Aiming: 0°-90° tilt and 360° rotation

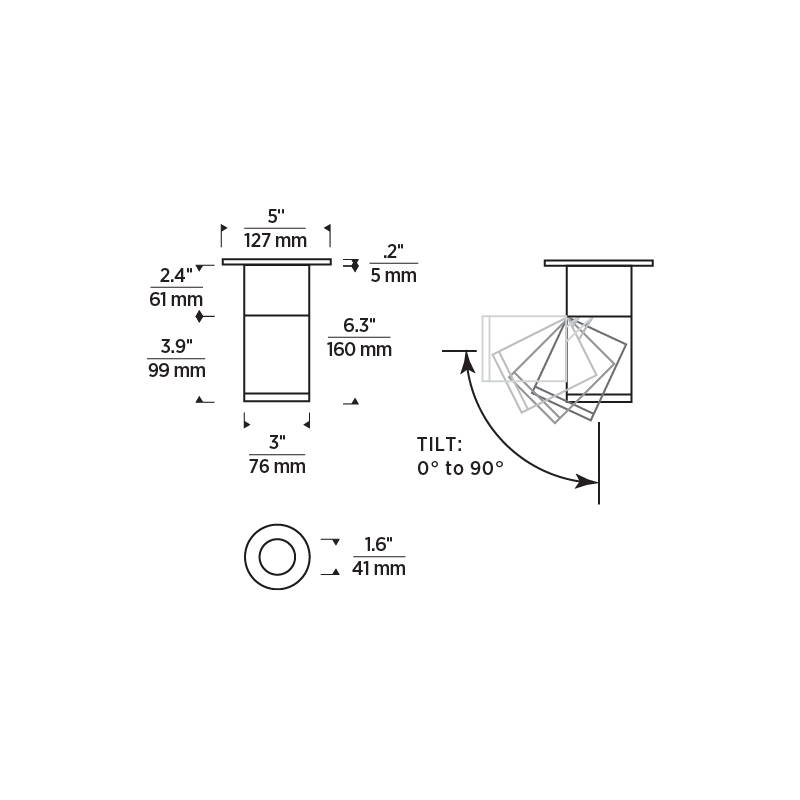

Dimensions

• Diameter: 3"

• Height: 6.3"

• Canopy: 5" Dia. x 0.2" H

Lamping

• 19W LED (Included)

Documents

• Spec Sheet
• Instruction Sheet
