by Lightolier
Lightolier LCRM10 OmniSpot Recessed Multiples Frame
SKU LCRM10H1
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
OmniSpot LED Recessed Multiples are designed to meet the most demanding retail lighting challenges through sleek and discrete aesthetics while providing a high center beam candlepower and efficacy performance.
Features

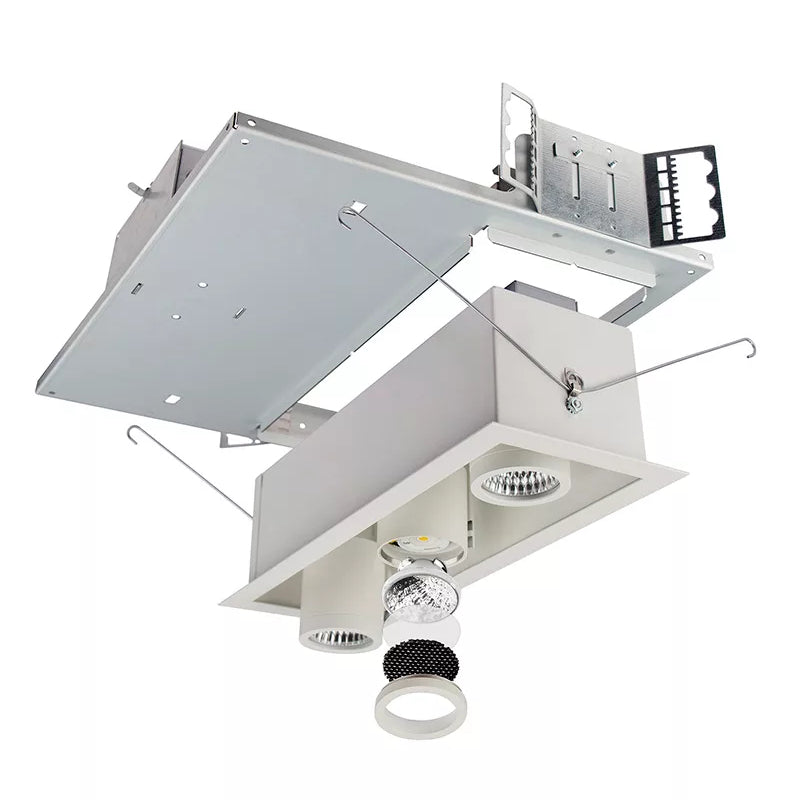

- Complete unit = Frame + Fixture + Reflector + Optional Accessories
- Heads: 1 head, 2 head, 3 head, 4 head
- Lumens: 600/1000

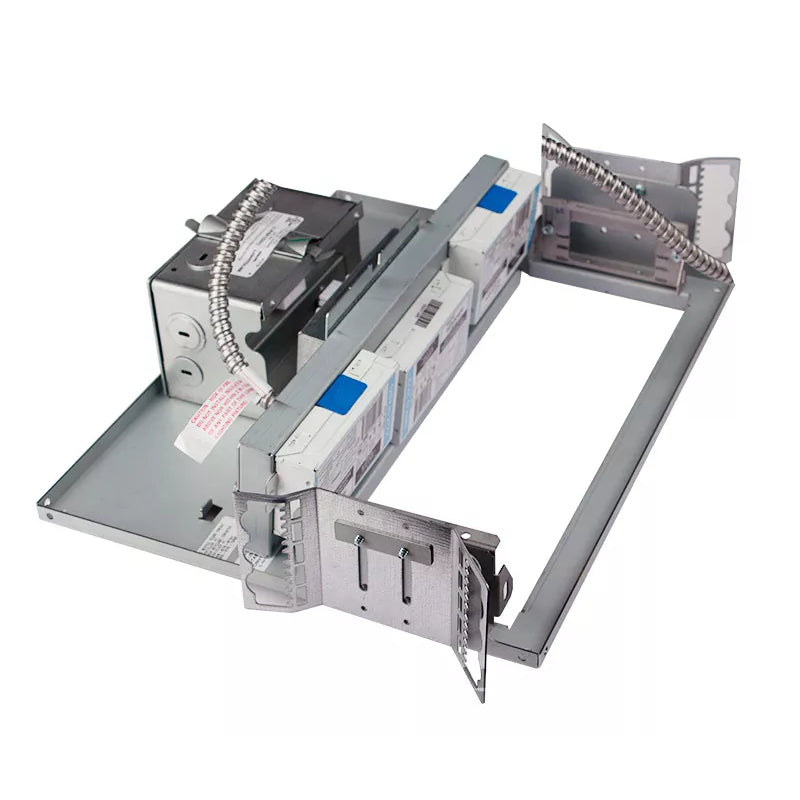

- Mounting brackets are adjustable vertically from inside of Frame-in-kit
- Accepts various types of mounting bars including C-channel, EMT (contractor supplied) and Lightolier mounting bars (Cat. # 1950 or 1951)
- For use in T-grid or sheet rock ceiling

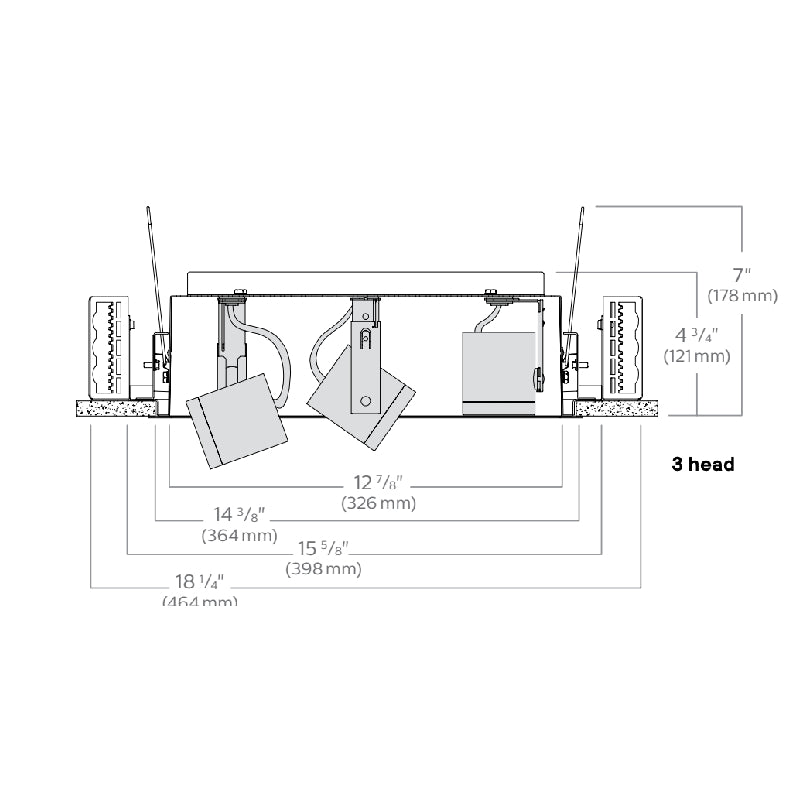

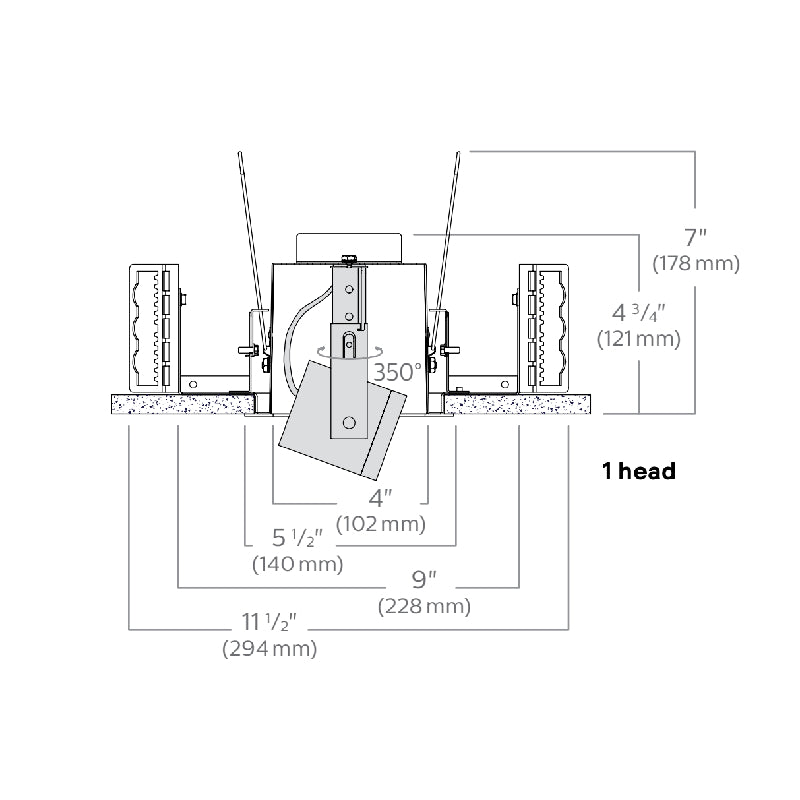

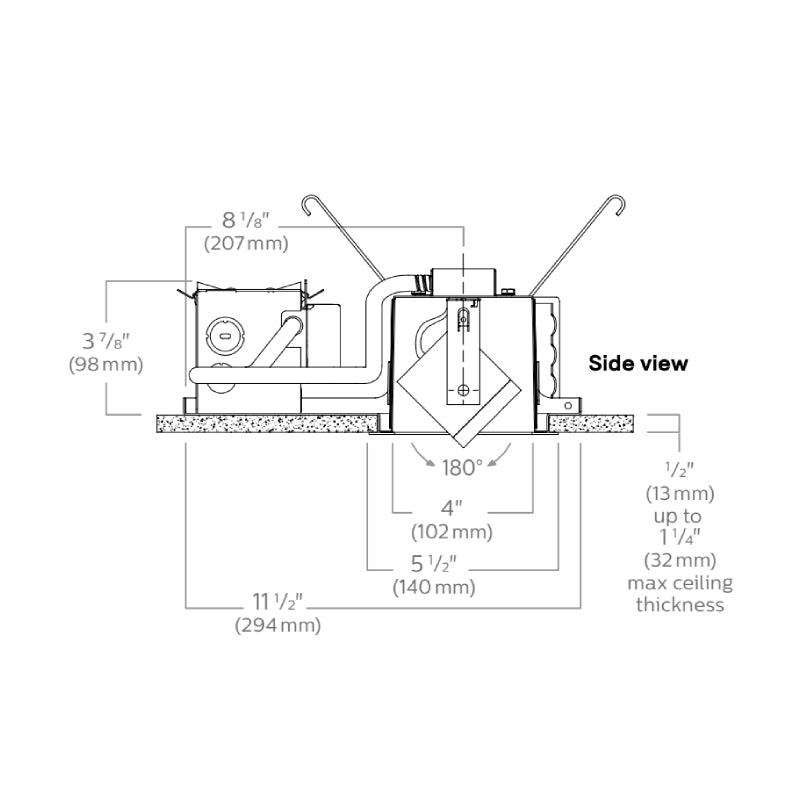

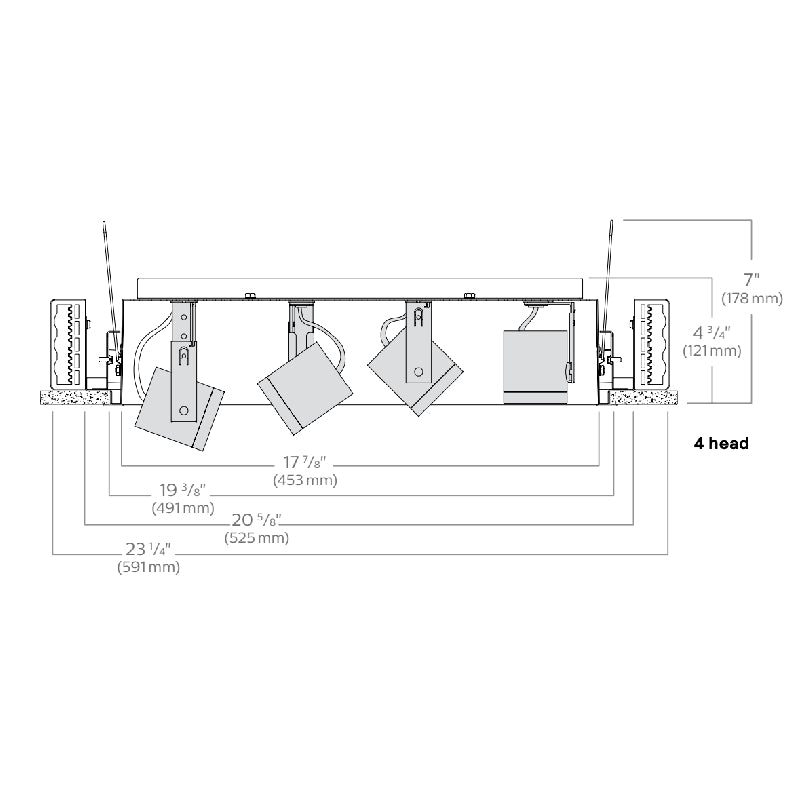

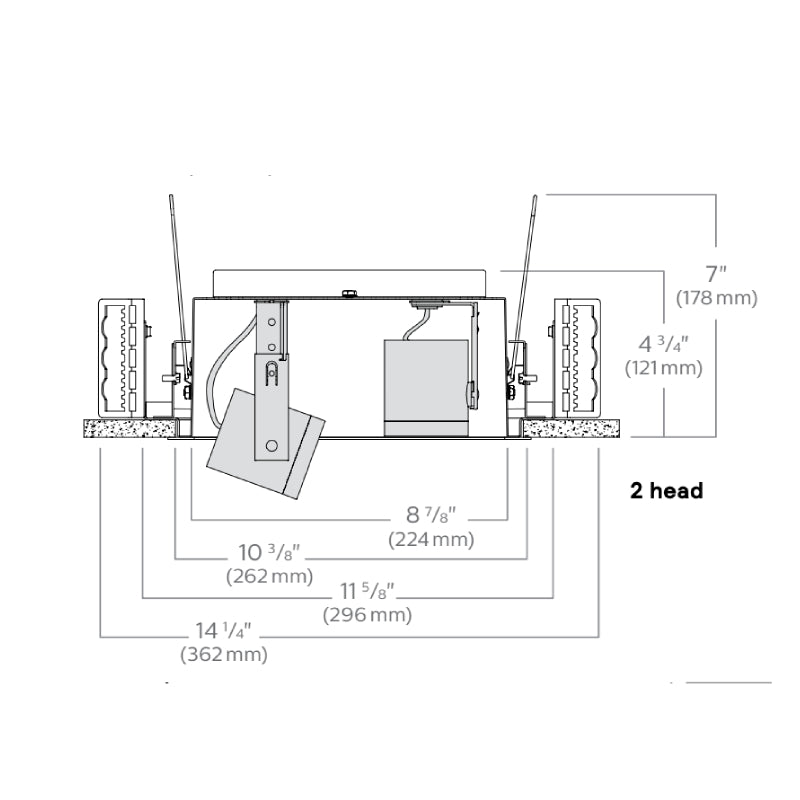

Dimensions
- Length: 11.5", 14.25", 18.25", 23.25"
- Width: 11.5"
- Height: 7"
- Cutout: 5" x 5", 5" x 9.81", 5" x 13.81", 5" x 18.81"
- Max ceiling thickness: 0.5"-1.25"
