Nora NAPT-3RPH 3" Apollo Round Trimless Pinhole Trim with Clear Lens

3″ Apollo flangeless pinholes feature a 1.75″ opening and are compatible with millwork and drywall ceilings. Trimless applications require a mud plate and a drywall finisher. Quiet ceiling with exceptional glare control and visual cutoff to the LED source.

Features

• Trim Only. Housing Sold Separately
• Size: 3"
• Flange Type: Trimless

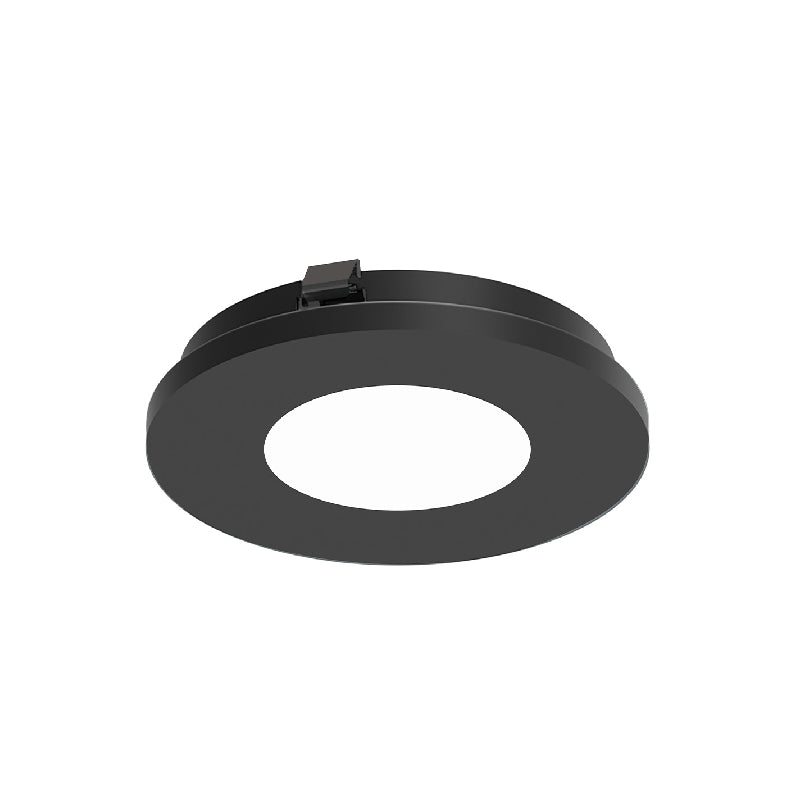

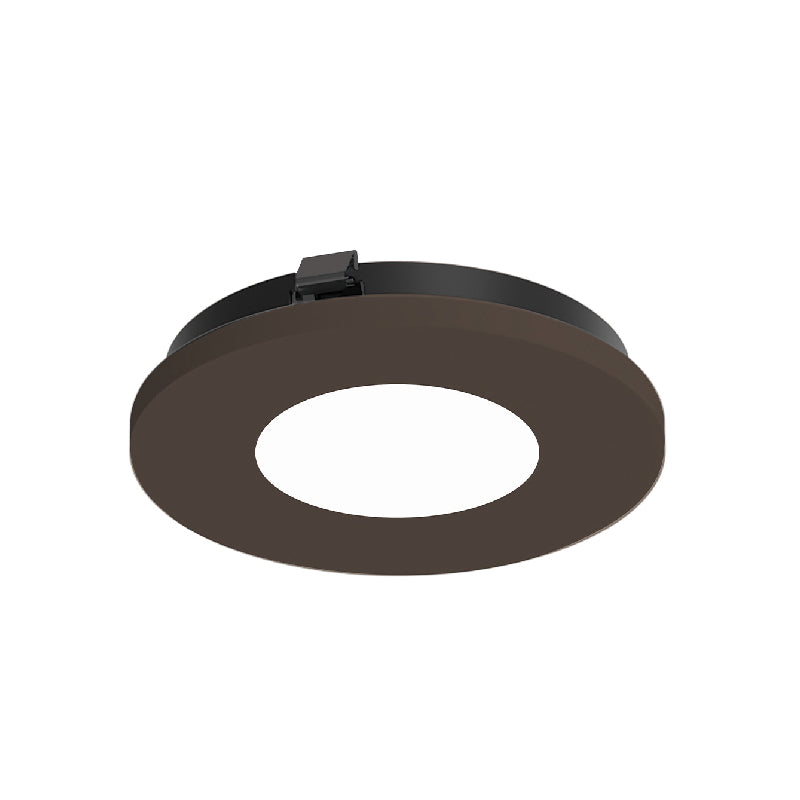

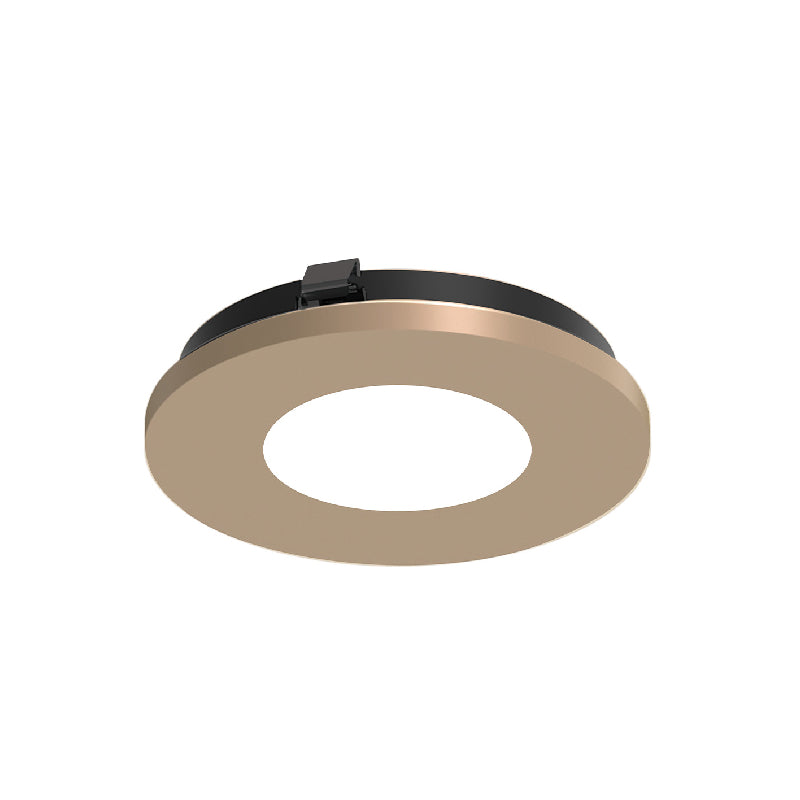

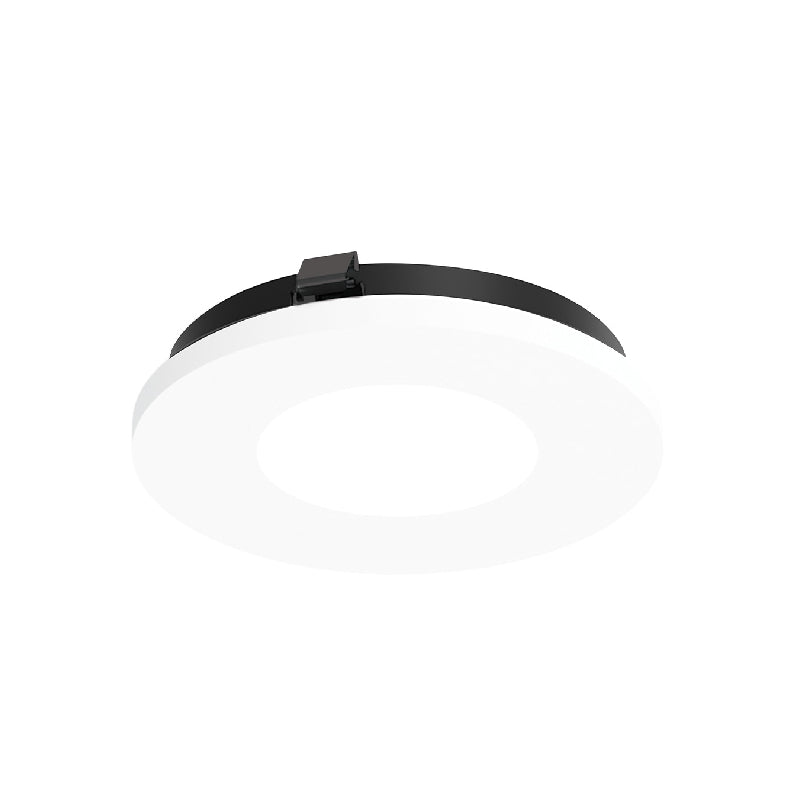

• Finish: Black, Bronze, Matte Powder White, Wheat Diffused

• Optional Lens: Clear Lens
• Flangeless knife-edge appearance
• Compatible with millwork and drywall applications
• Exceptional glare control
• Compatible with adjustable LED mechanism (361° rotation & 45° tilt)
• Trim: Die-cast aluminum construction with architectural grade finishes. Protective e-coating for corrosion protection and durability
• Lens: Luminaire can be specified with clear lens (pre-installed). Wet location rated when used with lens. Removal tool is available to remove trim with lens from below finished ceiling for maintenance (NIO-TLTOOL)
• Mounting: Trim easily installs into housing collar for millwork installation. Mud plate is required (NAP-TLMR-3R) for trimless drywall installations

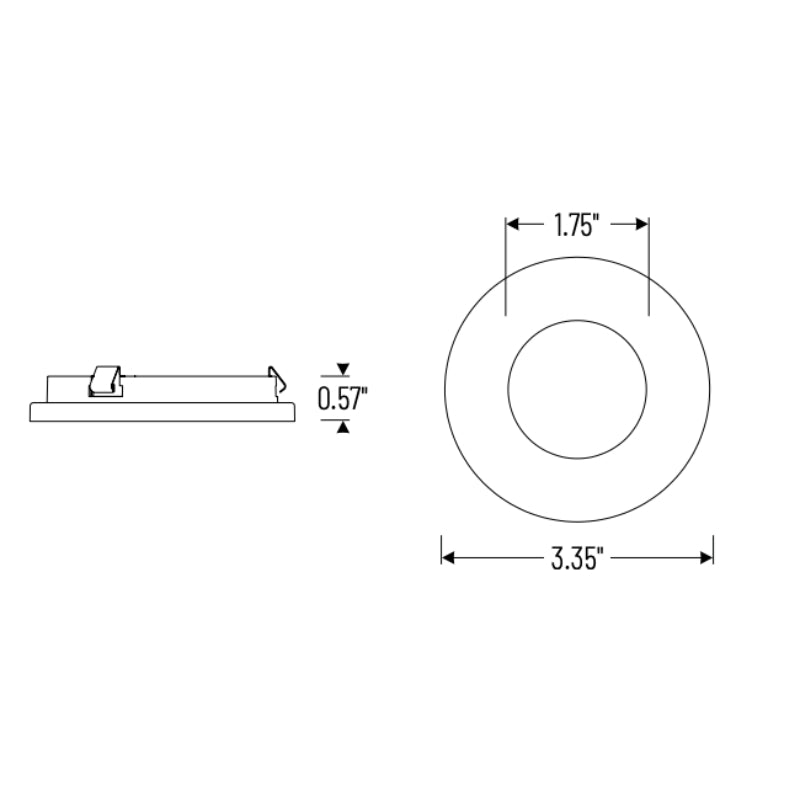

Dimensions

• Width: 3.35"

• Height: 0.57"

Documents

• Spec Sheet
• Instruction Sheet
