by WAC Lighting

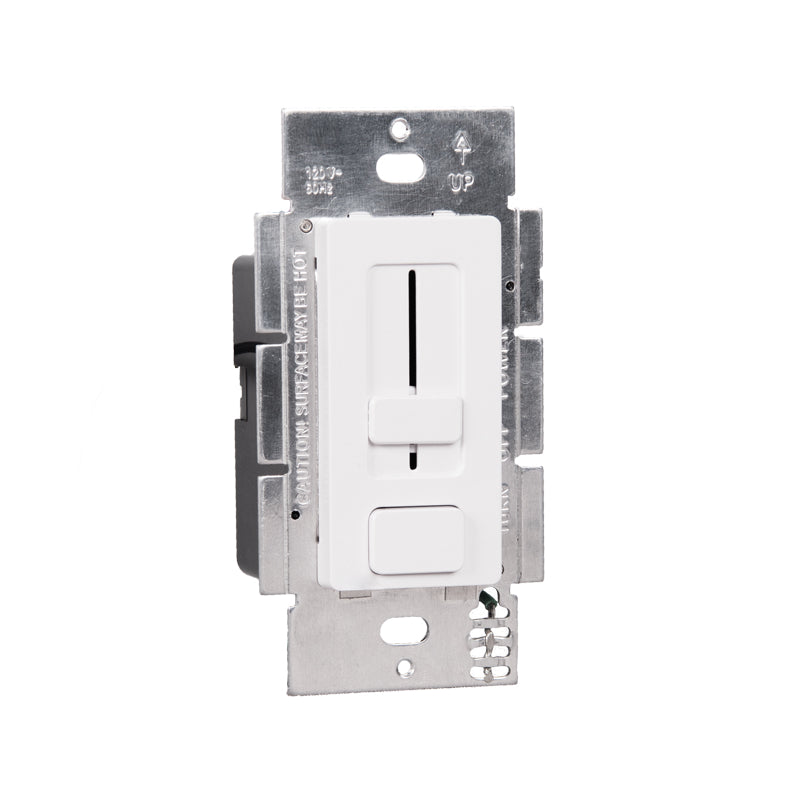

WAC EN-D24100-120-R Wall Mounted Class 2 24VDC/96W Dimmer and Driver
SKU EN-D24100-120-R
Original price
$0.00
-
Original price
$0.00
Original price
$215.95
$215.95
-
$215.95
Current price
$215.95
Availability:
in stock, ready to be shipped
WAC Dimmer & Driver simplifies LED array lighting systems by combining an in-wall LED dimmer switch and power supply into a single integrated unit. Mounts in a standard in-wall switch box, accepts 120V AC and converts to low voltage DC. WAC Dimmer & Driver is compatible with most solid color 24VDC tape lights and fixtures.
Features
- Finish: White
- Input: 120 VAC, 50/60Hz
- LED Driver & In-Wall Dimmer Switch in one unit, fits in a standard recessed electrical box.
- 100% - 1% smooth dimming
- No minimum load
- Single Pole preset dimmer with on/off push switch
- Adjustable voltage output dial to address voltage drop
- Works with InvisiLED® Lite/Pro/Pro2/Pro3 and Gemini tape
- Includes voltage barrier partition to install high and low voltage circuit in same switch box
- No derating required when ganging units

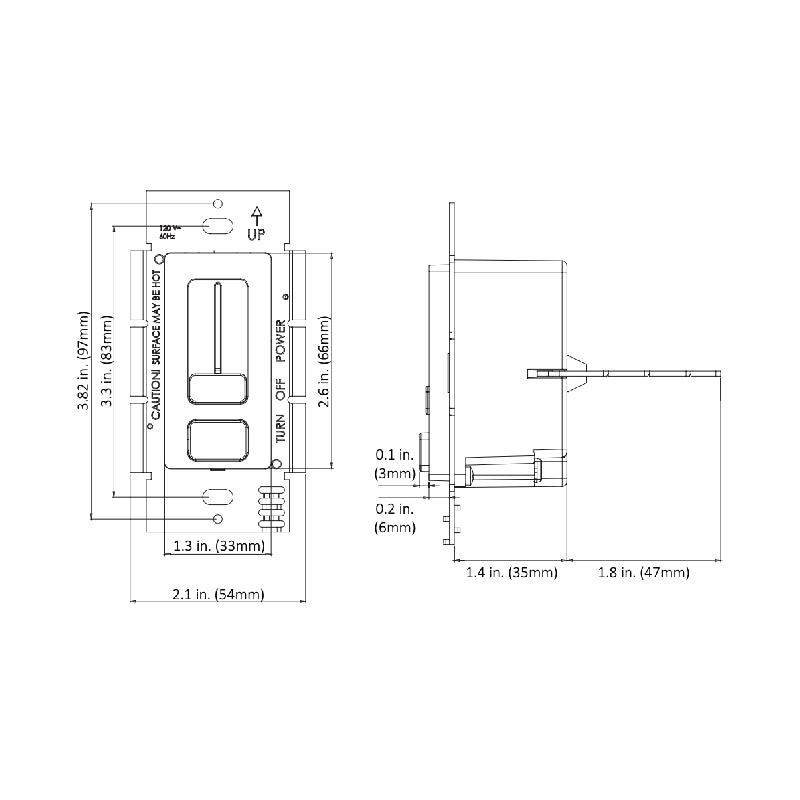

Dimension
- Width: 2.1"
- Height: 3.82"
- Depth: 1.4"
