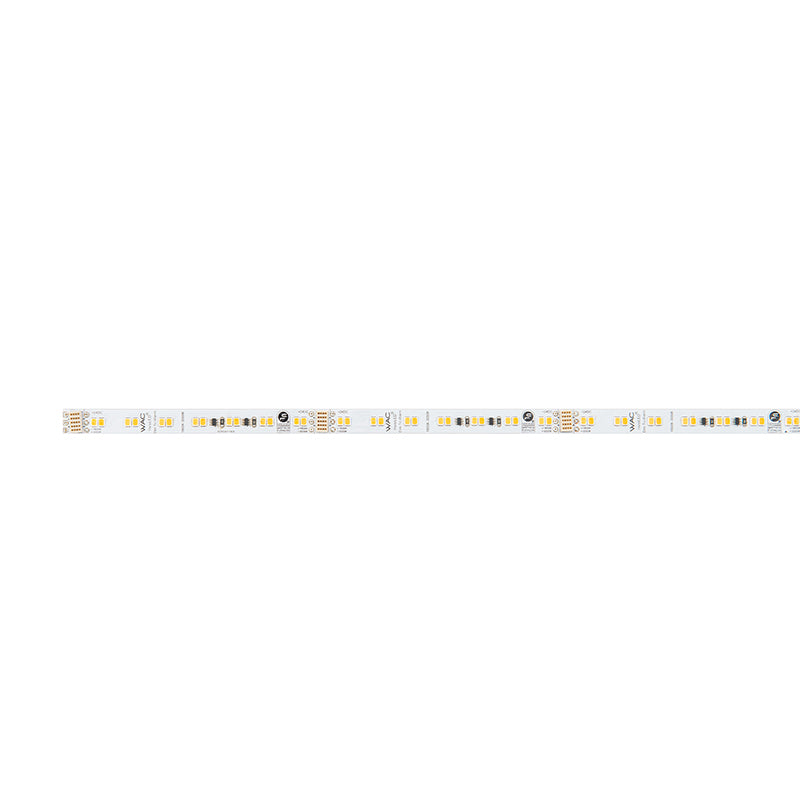

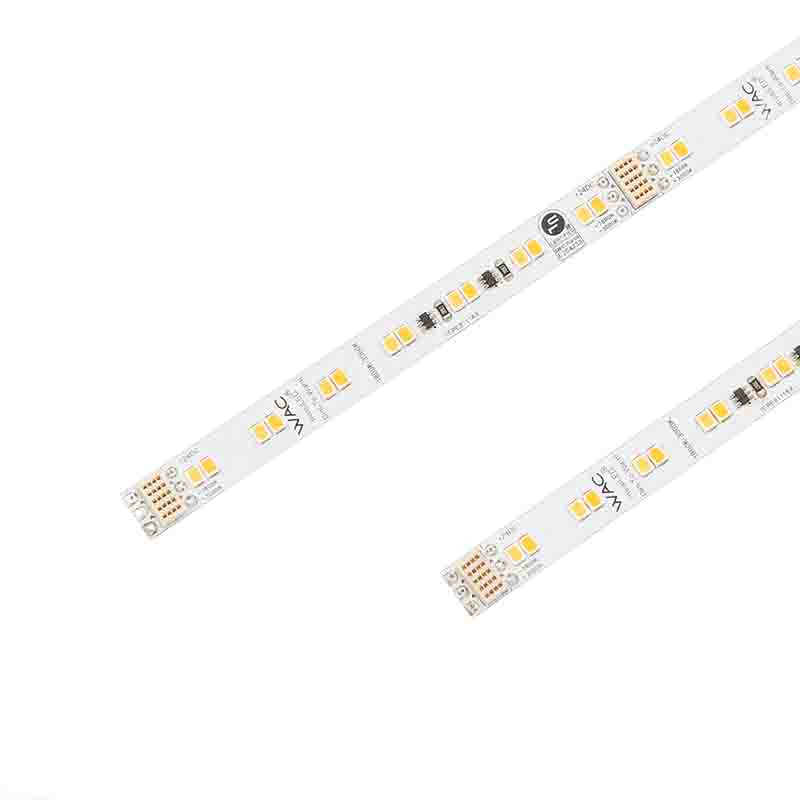

WAC T24-WD2 InvisiLED Dim-To-Warm 24VDC LED Tape Light System - 2.4W/FT

Using Dim-to-Warm CCT technology, InvisiLED Tape is ideal for changing the mood of the space, whether it’s a warm light for dining and entertaining or a cooler white light for bookkeeping and studying.

Features

• Finish: White
• Wattage: 2.4W/ft.
• Voltage: 24VDC
• Color Temperature: 1800K-3000K, 1800K-3500K
• Lumens: 200 lm/ft.
• Dimming: ELV, 0-10V
• CRI: 90
• May be cut and easily reconnected every 4 inches
• Select and choose lowest dimming CCT with matching Dim-to-Warm power supply
• UV stabilized protective coating protects LEDs and circuitry for long term use in Damp Locations
• Connections may be separated and reconnected at each junction point
• Equal brightness for an entire light strip
• Strong adhesive bonding with the 3M adhesive VHB
• Gold plated connector protects from corrosion, heat, and ensures a reliable electrical connection
• 100ft max distance between the power supply and beginning of InvisiLED
• Can be mounted on ceiling or wall in all orientations
• Closet Rated options (T24-WD2)

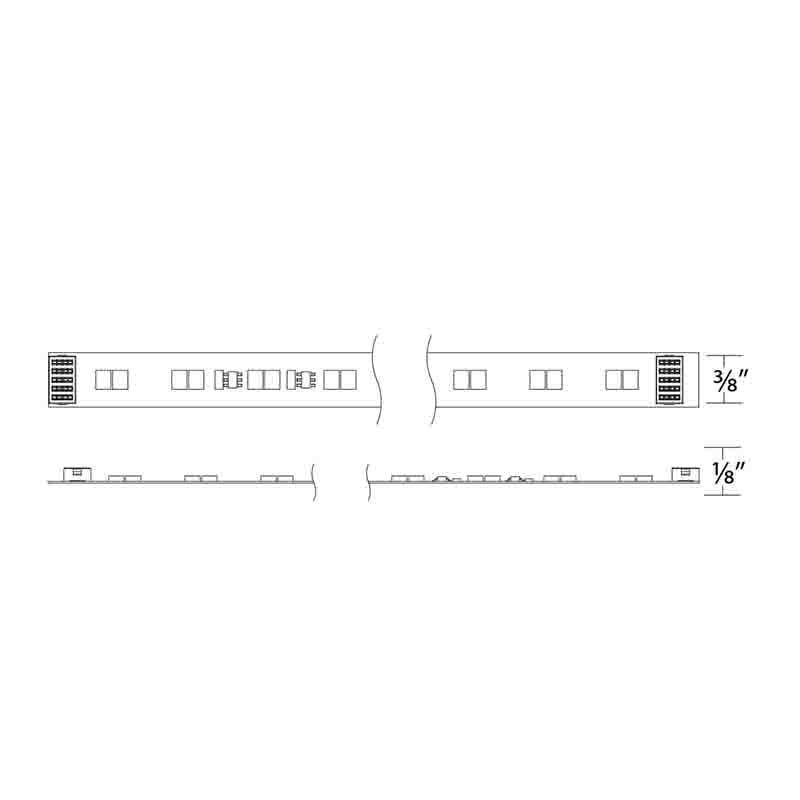

Dimensions

• Length: 1-ft, 5-ft, 10ft, 20-ft, 40-ft
• Width: 0.38"
• Height: 0.13"

Lamping

• 2.4W per ft.

Documents

• Spec Sheet
• Instruction Sheet
