Element E3S 3" 17W LED Square Low-Profile Fixed Downlight New Construction Housing, Flanged

The ELEMENT 3" Next Generation Adjustable recessed downlight features full adjustability with lockable, tool-free hot aiming. ELEMENT's patented high/low lamp positioning allows the LED to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim.

Features

• Lead Time: 8 to 9 business days
• Trim sold separately
• Finish: Black
• Ceiling Appearance: Flanged
• Wattage: 17W
• Voltage: 120V
• Color Temperature: 2700K, 3000K, 3500K
• CRI: 90
• Driver: UNIVERSAL PHASE/0-10V 1%
• Beam Spread: 18°, 25°, 40°
• Function: Downlight
• Housing Rated: Low-Profile IC Airtight

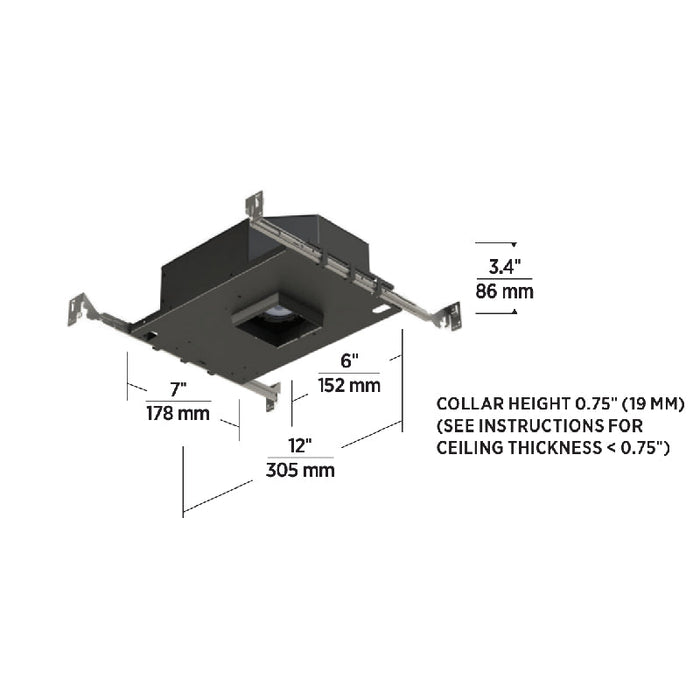

Dimensions

• Length: 12"
• Width: 7"
• Height: 3.4"

Documents

• Spec Sheet
• Instruction Sheet
