Lightolier LLAVRM11 Alcyon Vertical Recessed Multiple Frame, 1000/1400 lm

Alcyon LED Vertical Recessed Multiples are ideal for display, accent and task lighting and offer higher efficiency than incandescent or halogen sources leading to energy savings with no ultraviolet or infrared radiation. Alcyon provides concentrated light which dramatically draws interest to objects and elements in a space.

Features

• Complete unit = Frame + Fixture + Reflector + Optional Accessories

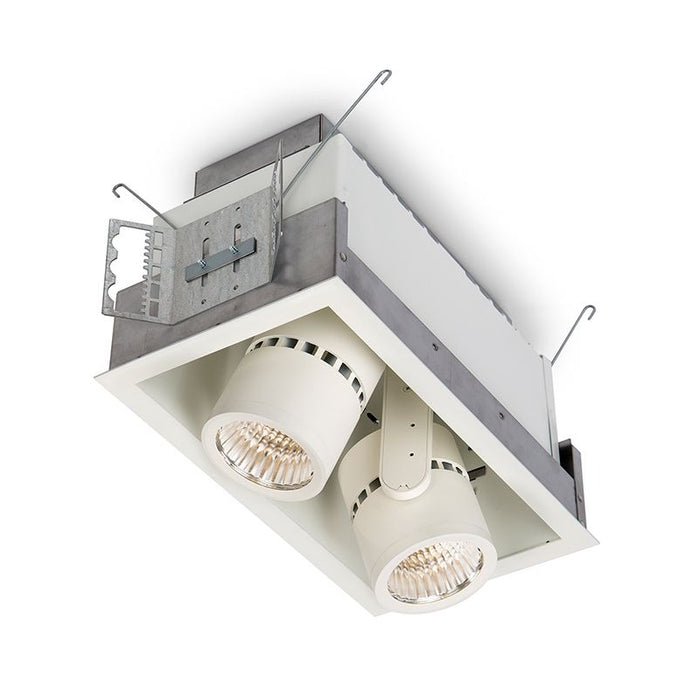

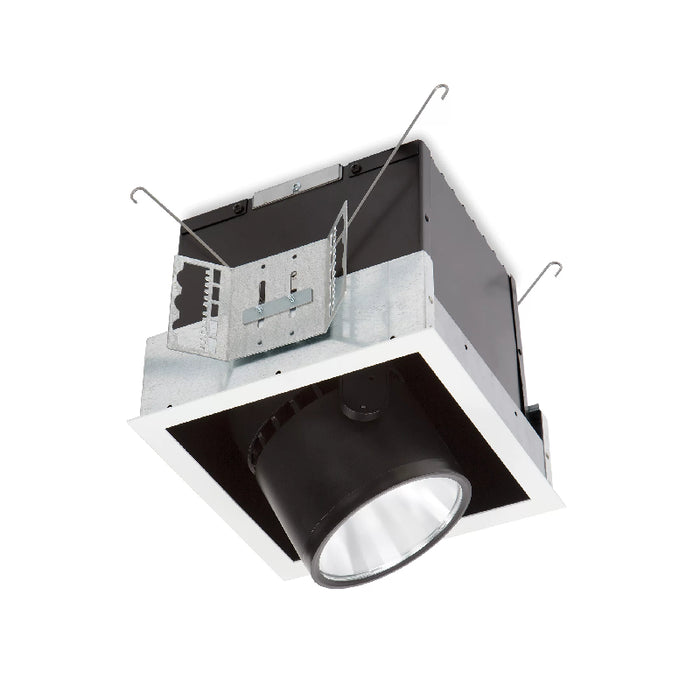

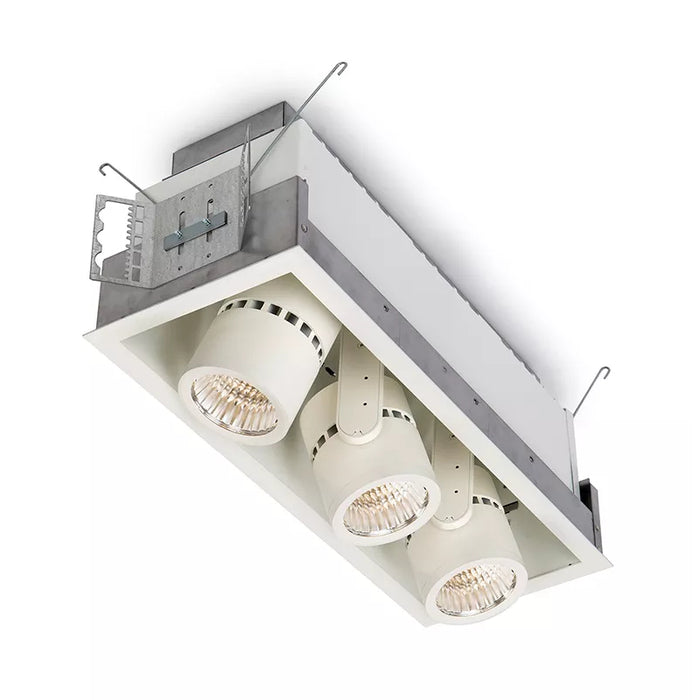

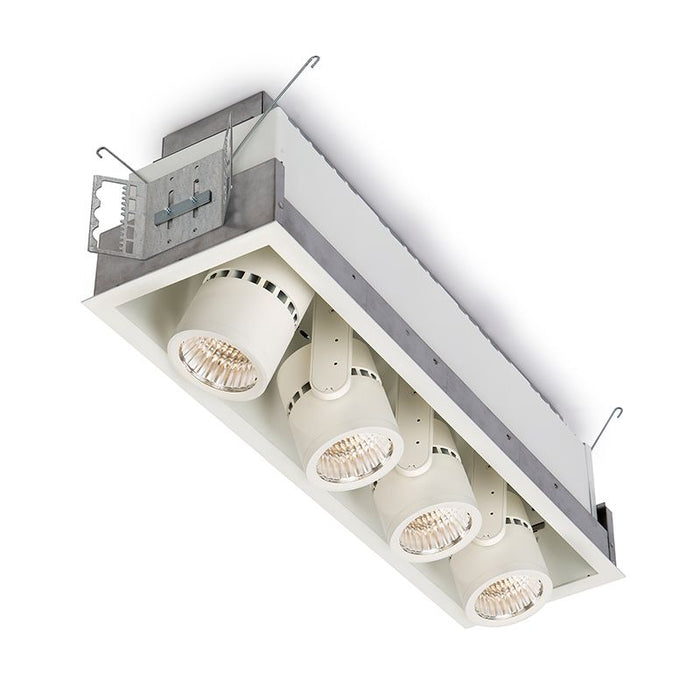

• Heads: 1 head, 2 head, 3 head, 4 head
• Voltage: 120V, 277V
• Lumens: 1000/1400
• Mounting brackets are adjustable vertically from inside of Frame-in-kit. Maximum ceiling thickness is 1.63"
• Accepts various types of mounting bars including C-channel, EMT (contractor supplied) and Lightolier mounting bars (Cat. # 1950 or 1951)
• For use in T-grid or sheet rock ceiling

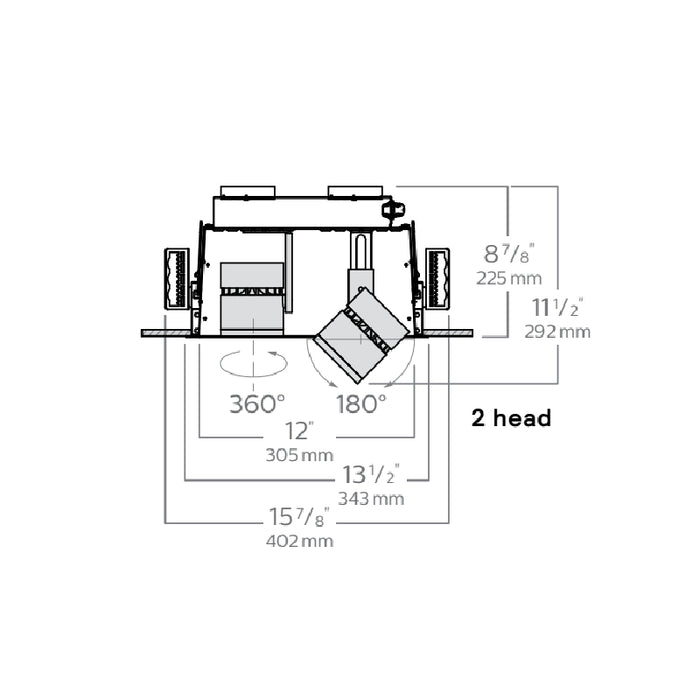

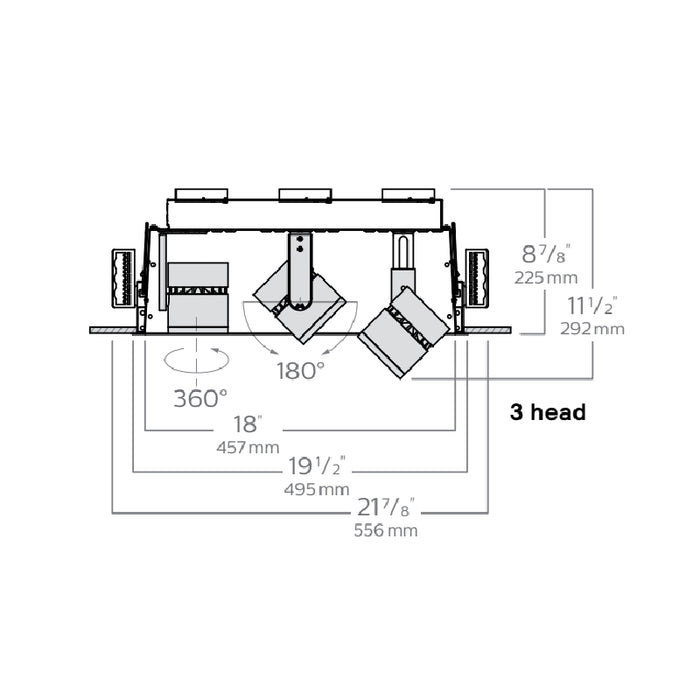

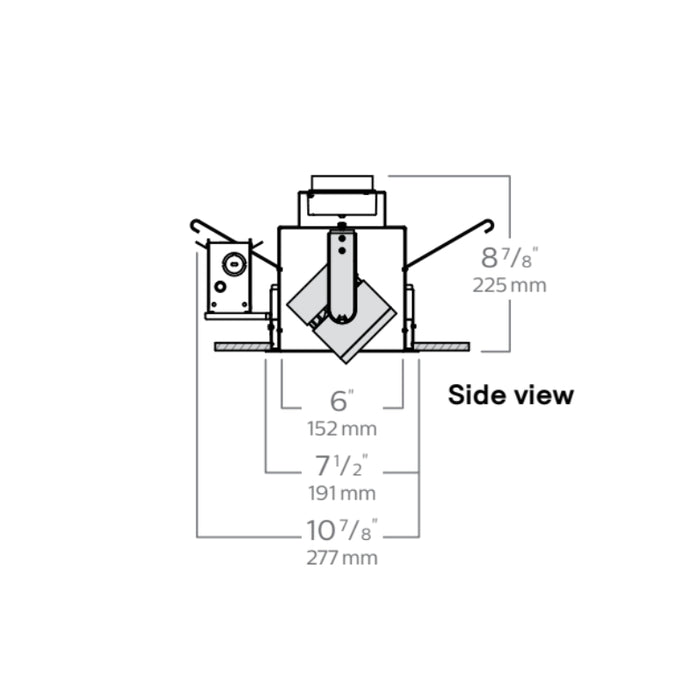

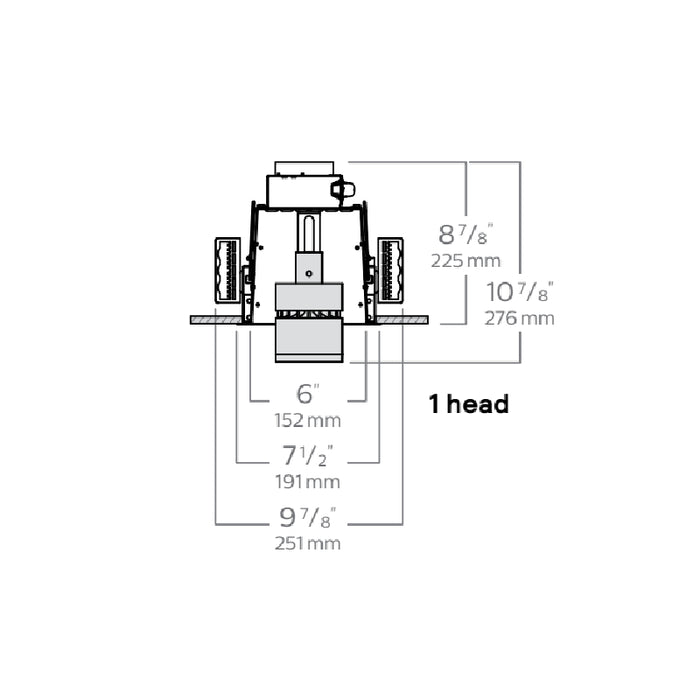

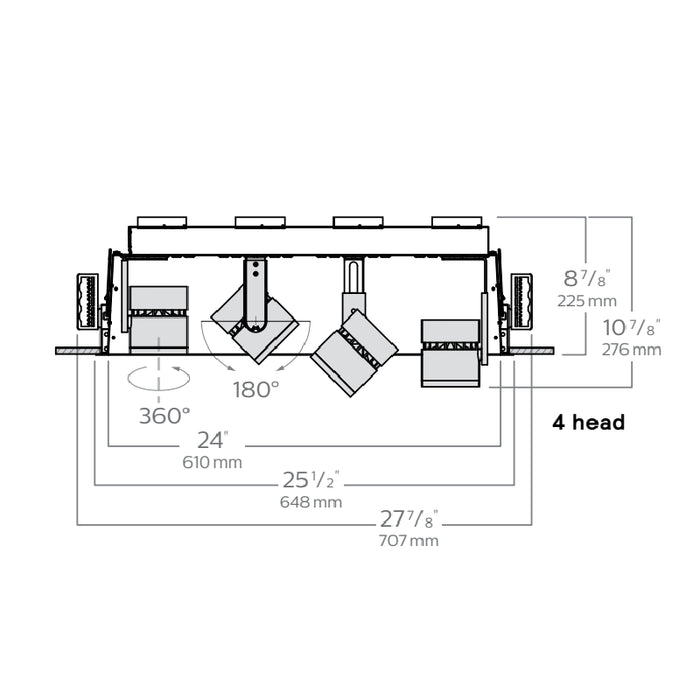

Dimensions

• Length: 9.88", 15.88", 21.88", 27.88"
• Width: 10.88"
• Height: 8.88"

Documents

• Spec Sheet
• Instruction Sheet
