Nora NCH3-4L1C12 4" Sapphire III COB, Universal New Construction Frame-In Kit, 900 Lumen, 120-277V
SKU NCH3-4L1C12
Original price
$0.00
-
Original price
$0.00
Original price
$143.91
$143.91
-
$376.11
Current price
$143.91
Availability:
In stock
Availability:
In stock

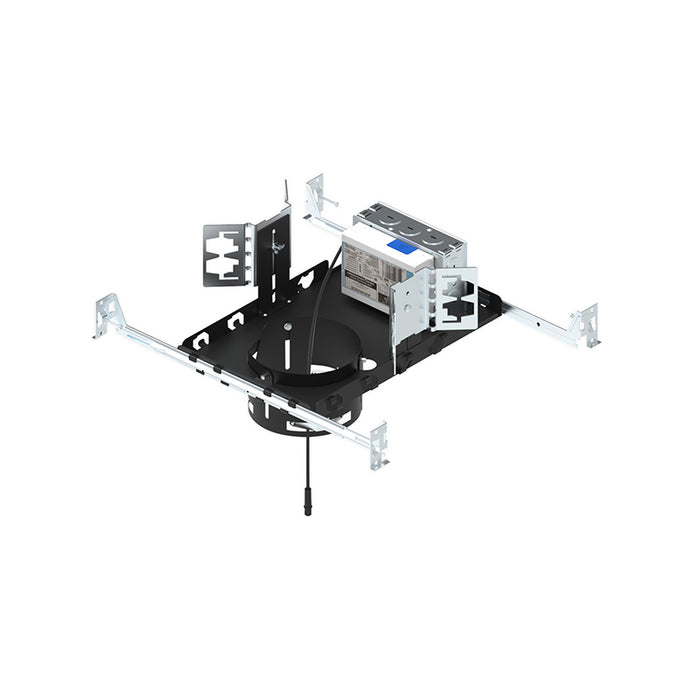

New Construction Frame-In for 4″ Sapphire III COB LED downlights includes universal brackets and bar hangers that can be adjusted on either side of the flat frame.
Features
- Trim sold separately
- Wattage: 13W
- Voltage: 120V
- Lumens: 900
- Phase Dimming (Triac/ELV)
- Optional emergency driver with remote test switch
- Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2" conduit
- Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame
- Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2"
- Minimum Clearances: Frames require a minimum of 3" from thermal insulation and 1/2" from adjacent building component

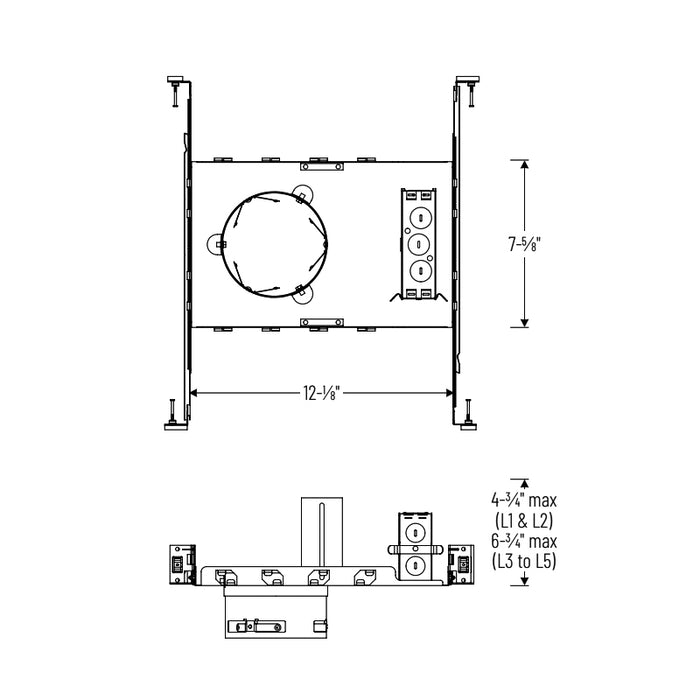

Dimensions
- Length: 12.13"
- Width: 7.63"
- Height: 4.75" max
- Cut-out: 5"
