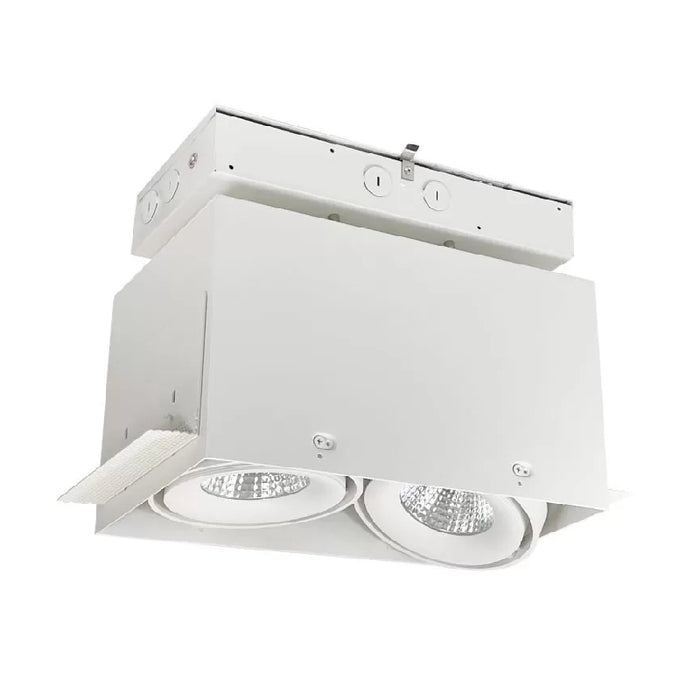

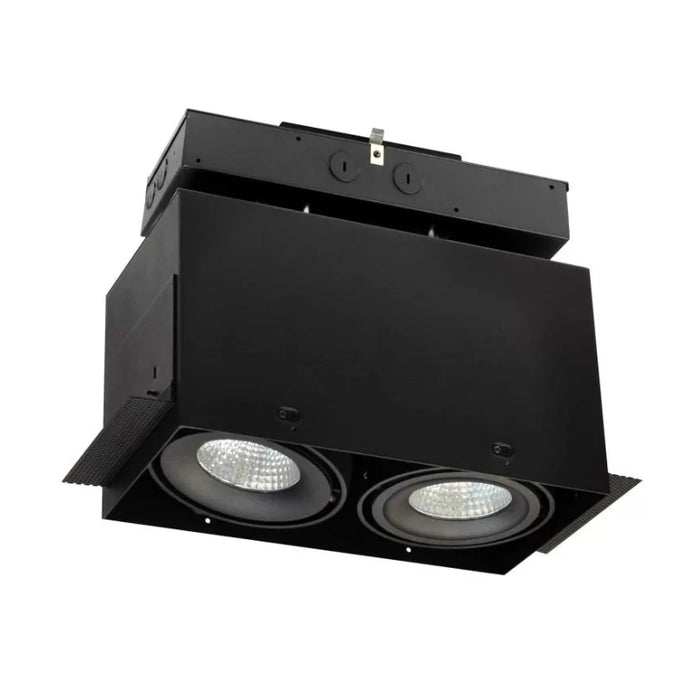

Nora NMRTLG-12 Trimless Two Head LED Multiple Lighting System 0-10 Dimming, 120-277V

Trimless multiple lighting system allows each lighting module to be independently adjusted on 2 axis and is available in dedicated LED or PAR30 medium base. The Trimless MLS installs in a hard ceiling in remodel and/or new construction applications, and is available in 1 to 3 light linear configurations. The included mud plate frames the housing with clean sharp edges leaving a smooth flange-less appearance that blends in with the ceiling line.

Features

• Finish: Black, White

• Wattage: 60W
• Voltage: 120-277V
• Color Temperature: 2700K, 3000K, 3500K, 4000K
• Lumens: 2100 per head

• CRI: 90+
• Dimming: 0-10V
• Beam: 32° Narrow Flood, 16°Spot
• Rated Life: 36,000 hours @ L70

• Independently adjustable heads
• 35° adjustment
• Construction: 0.05" galvanized steel with ventilation openings for proper heat dissipation. A separate driver compartment with eight 1/2" knockouts for in and out wiring. Housing includes adjustable brackets for various ceiling depths and separate mud ring for finishing
• LED Module(s): Each driver includes a quick connect that easily attaches to quick connect from the LED module. Drivers can be supplied with a single supply or individual supply line for independent control

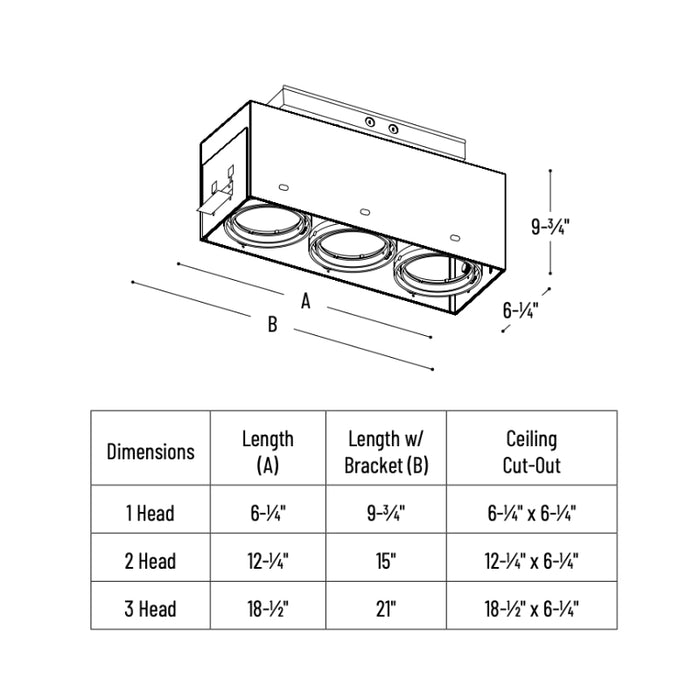

Dimensions

• Length: 12.25"
• Width: 6.25"
• Height: 9.75"
• Cutout: 12.25" x 6.25"


Lamping

• 2 x 30W LED (Included)

Documents

• Spec Sheet
• Instruction Sheet
