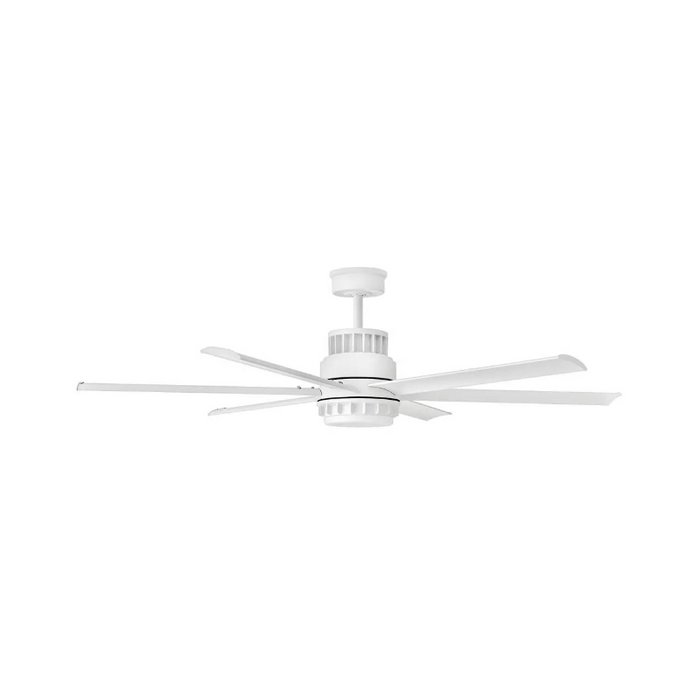

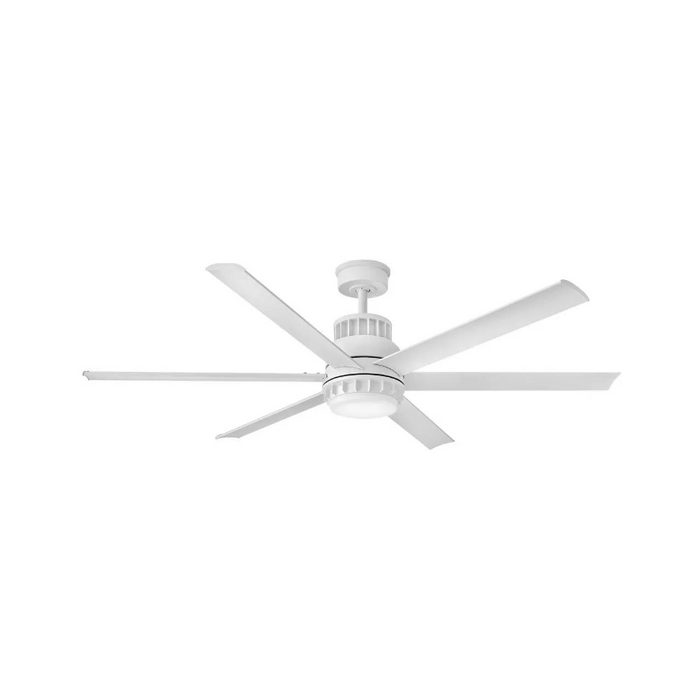

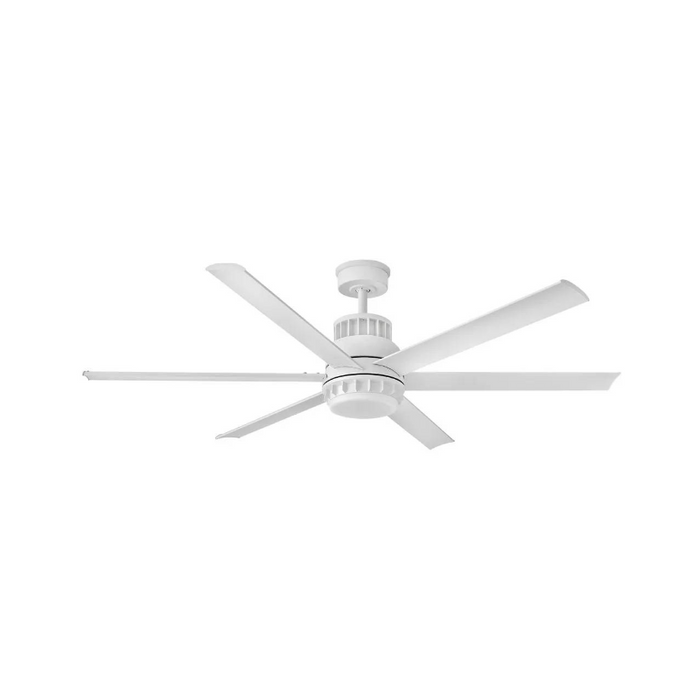

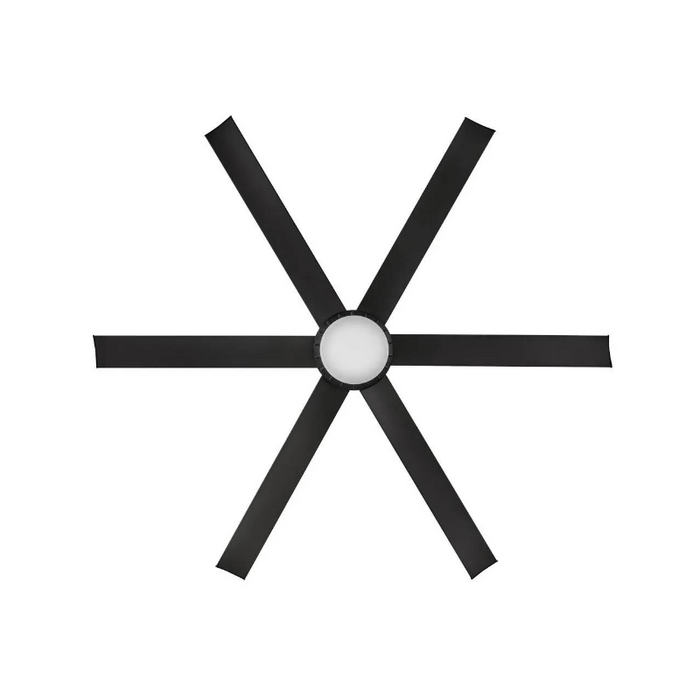

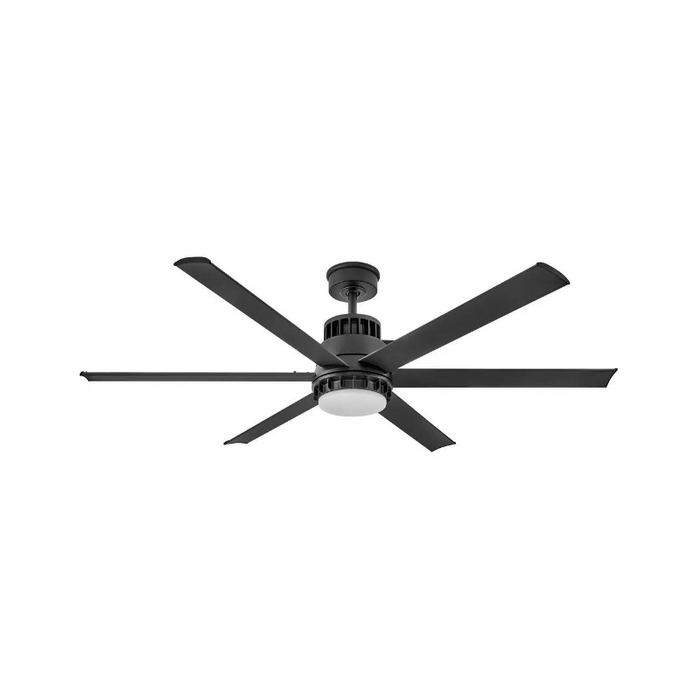

Hinkley 905360F Draftsman 60" Outdoor Ceiling Fan with LED Light Kit

Draftsman's updated transitional form ties perfectly into any space while delivering superior performance. Matte White and Matte Black finish options enhance Draftsman's industrial-inspired design to complement indoor and outdoor spaces alike. With integrated LED and DC motor technology, Draftsman delivers excellent energy efficiency. For lower ceilings, a flush mount kit is an accessory option for easy customization. Operated by the HIRO control or WiFi-compatible with the Hinkley app.

Features

• Finish/Blades:

  • Matte Black / Matte Black Blades

  • Matte White / Matte White Blades

• Shade: White Frosted Glass
• Blade Pitch: 12º
• Slope: 20º
• Six blades

• Blade Material: Aluminum

• 6 Speed Reversing
• Voltage: 120V
• WiFi compatibility with included fan control
• This item may be hung on a sloped ceiling

Airflow/Energy Efficiency

• Airflow: 8389 cubic ft per minute on high
• Power: 32.9 watts on high
• Airflow Efficiency: 255 cubic ft per minute per watt
• Revolutions Per Minute: 147 RPMs on high

Dimensions

• Blade Sweep: 60"
• Height: 17"
• Downrod: 6"
• Leadwire: 76"
• Canopy: 6.5" Dia.
• Housing Diameter: 8.5"
• Minimum Height: 11.75"
• Ceiling To Blade Height: 12.75"
• Motor Type: 155 X 22 DC (ferrite)

• Weight: 26 lbs


Lamping

• 16W Integrated LED
• Color Temperature: 3000K
• Lumens: 1320
• CRI: 90

Documents

• Spec Sheet
• Instruction Sheet
