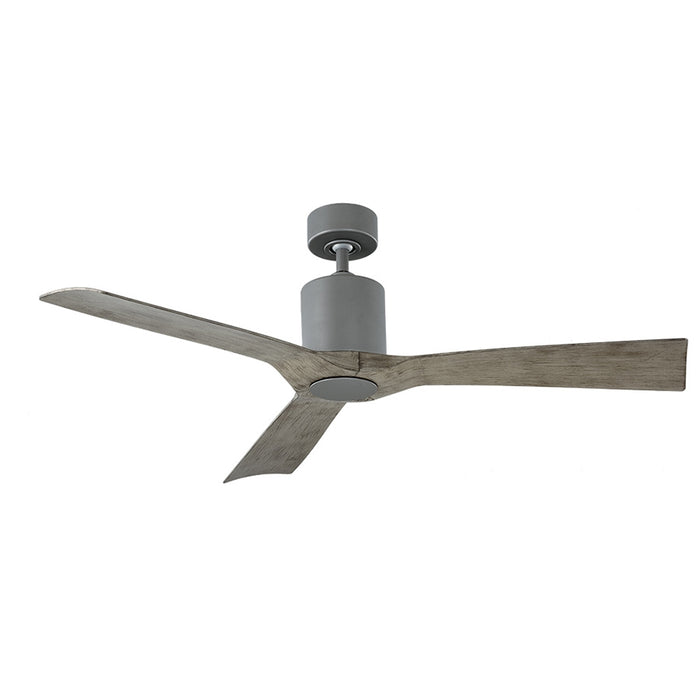

Modern Forms FR-W1811-54 Aviator 54" Ceiling Fan

Inspired by the golden age of flying, this smart fan takes technology to the next level. Pair it with the Bluetooth remote control or use the Modern Forms app to save on energy costs, group fans to control together, or intuitively create schedules that respond to your behavior. Two simulated wood finishes contrast with the matte black or graphite housings for an understated look in interior or exterior spaces.

Features

• Optional LED Light Kit Sold Separately
• Finish/Blades:
  • Graphite with Weathered Gray
  • Matte Black with Distressed Koa
  • Matte Black
• Construction: Aluminum, ABS
• Voltage: 120V
• Blade Pitch: 13º
• Mounting Slope: Up to 30°
• Three blades
• Total Power: 32W
• 6 fan speeds through both Summer and Winter Modes
• Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control 4, and Josh.ai
• Integrates with smart home devices you already own, including Google Assistant, Amazon Echo, Nest & ecobee for voice command and energy savings
• Bluetooth wall control included (Part# F-WCBT-WT). Additional wall switches are available for 3 or 4 way setup (Part# F-WCBT-WT) sold separately
• Optional battery-operated Bluetooth hand-held remotes are available (Part # F-RCBT-WT) sold separately
• Silent DC motor runs 70% more energy efficient than traditional AC motors

Airflow/Energy Efficiency

• Weighted-Average/High Airflow CFM: 4653/7030
• Weighted-Average/High Energy Use (W): 24/32
• Estimated Yearly Energy Cost ($): 6
• Weighted-Average/High Efficiency (CFM/W): 200/209
• Max RPM: 145

Dimensions

• Blade Sweep: 54"
• Height: 15.5"
• Downrod: 1” O.D. x 4.5”H included
• Wire: 80"
• Motor Type: 125 x 20 sensorless DC motor
• Hanging Weight: 13 lbs

Documents

• Spec Sheet
• Instruction Sheet
