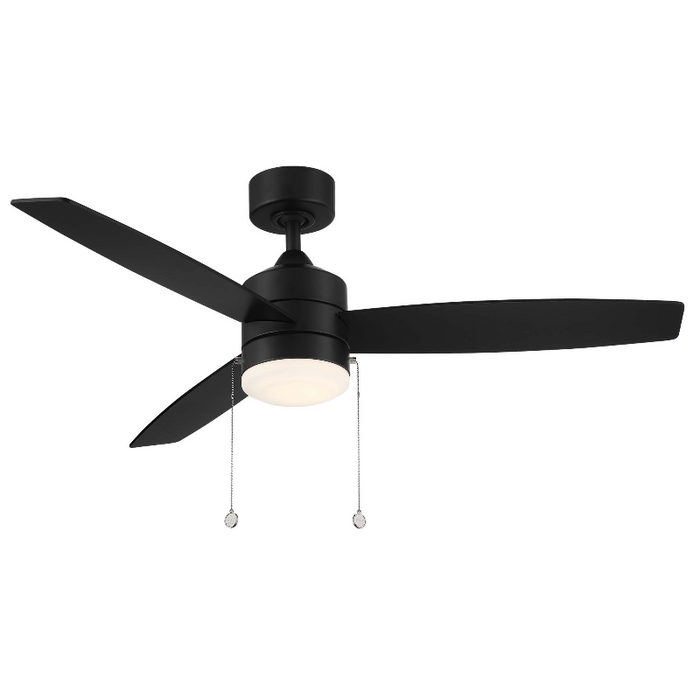

WAC F-072L Atlantis 52" Indoor/Outdoor Ceiling Fan with LED Light Kit

ATLANTIS from WAC LIMITED offers a Damp rated, high-value fan with three speed options and can be reversed from the housing to pull hot air up during winter months. Enhance your interiors with the gently-curved shape of this elegant fan.

Features

• Finish/Blades:
  • Matte Black with Matte Black Blades
• Construction: Steel and Plywood Blades
• Blade Pitch: 13º
• Three blades
• 3 Speed Reversing

• Voltage: 120V
• Pull chain operation

Airflow/Energy Efficiency

• Airflow: 5009 cubic ft per minute on high
• Power: 63 watts on high
• Airflow Efficiency: 92 cubic ft per minute per watt
• Revolutions Per Minute: 188 RPMs on high

Dimensions

• Blade Sweep: 52"
• Height: 15.7"
• Downrod: 0.75" W x 6" H (Included)

• Leadwire: 80"
• Ceiling to Blade Height: 10.5"
• Mounting Slope: Up to 30º

• Motor Type: 153 x 16 AC Motor

Lamping

• 19.5W LED (Included)
• Color Temperature: 3000K

• Lumens: 1600
• Delivered Lumens: 708
• CRI: 90
• Dimmable - 0-10v dimmer

• Rated Life: 50,000 Hours


Documents

• Spec Sheet
• Instruction Sheet
