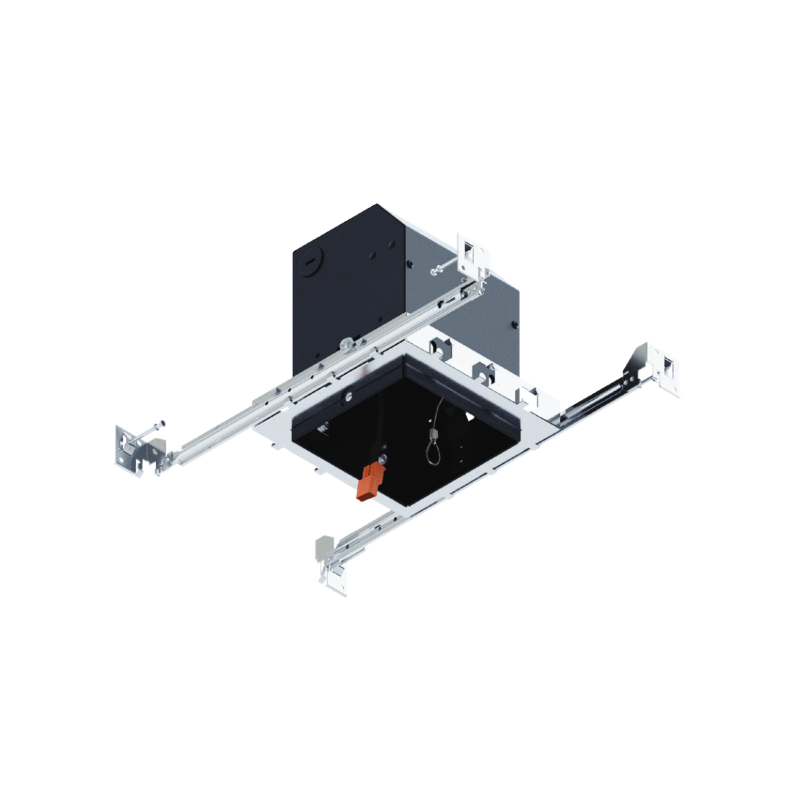

Elite FCM1-LED 1 Head Recessed Mini Multiple Combo New Construction Housing

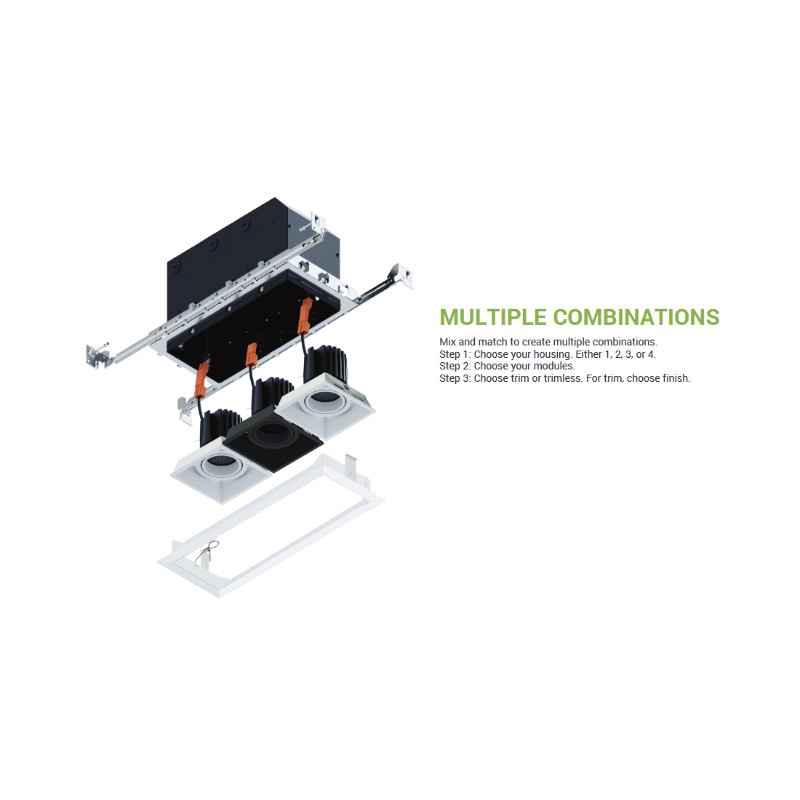

A recessed multiple mini combo downlight, available in 1, 2, 3 or 4 heads, with fully interchangeable, field-adjustable modules. Each individual head has full aiming adjustability, rotating 360°, pivoting 35° vertically, and locks into place. A single housing can combine different color temperatures, optics, trim types and finishes for each individual head.
Features
- Housing only. Trim and LED Module sold separately.
- Finish: Black
- Construction: Post-Painted 18-gauge Steel
- Wattage: 15.7W
- Voltage: 120/277V (MVOLT)
- 0-10V Flicker Free 1% Dimming (only on 120V or 277V)
- Triac dimming 5% Dimming (only on 120V)
- Thermally protected for new construction, non-IC applications
- Passive cooling die-cast aluminum heatsink
- Interior painted matte black for maximum heat dissipation, zero internal reflection, and glare free illumination
- Pre-installed bar hangers can be shortened to position and lock housing at any point within the joist span

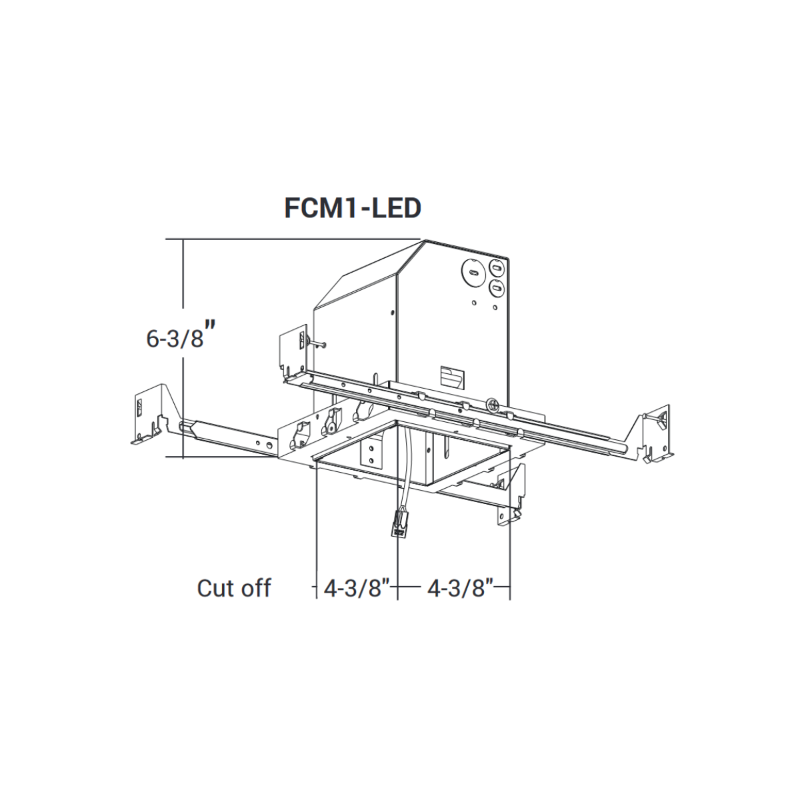

Dimensions
- Cut off: 4.38" x 4.38"
- Height: 6.38"
