WAC R4FRAT-WD 4" Round Adjustable Trimmed, Warm Dim

The FQ Recessed series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality. The series features superlative glare control with 30° shielding, 45° vertical tilting and 360° horizontal rotation, and uniform floor-to-ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications. Easy to order, install, and service.

Features

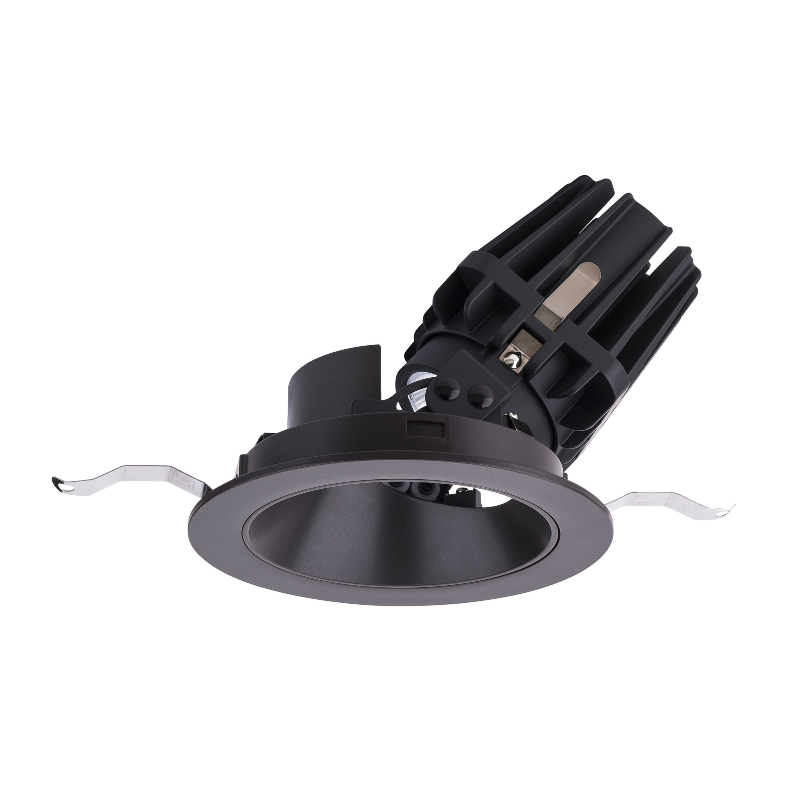

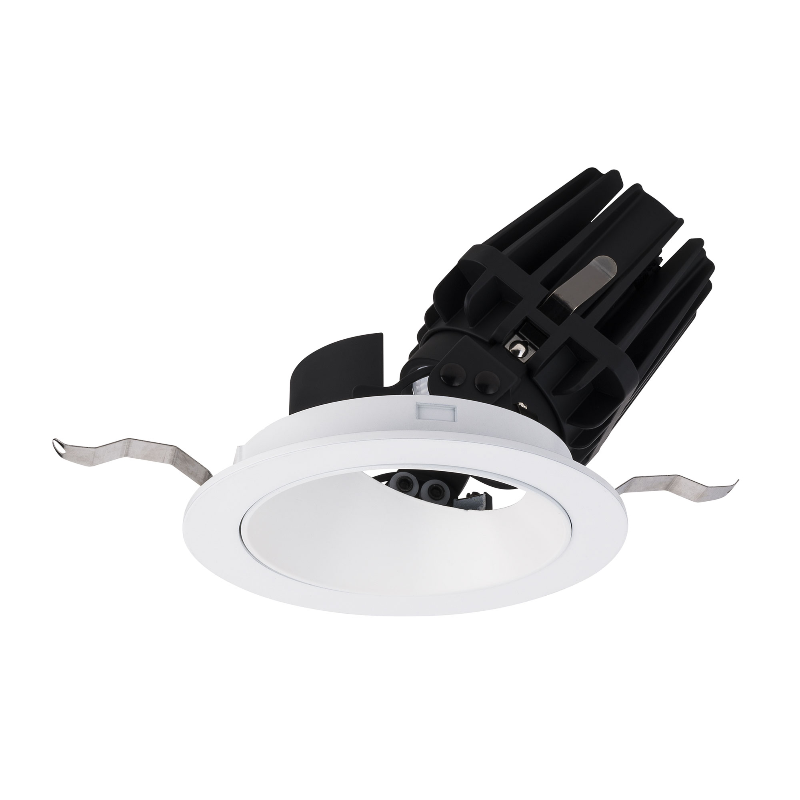

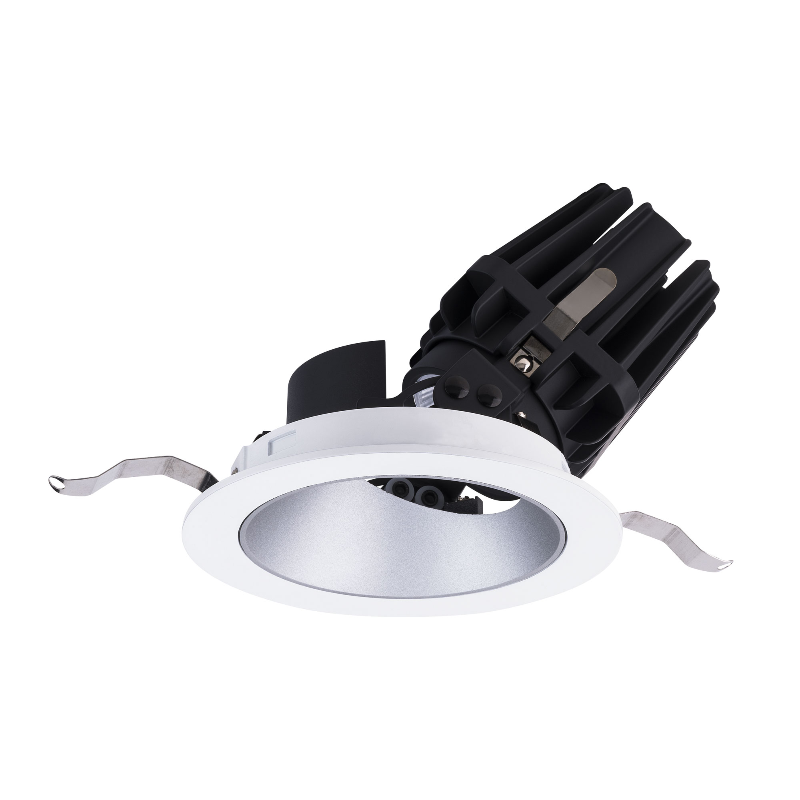

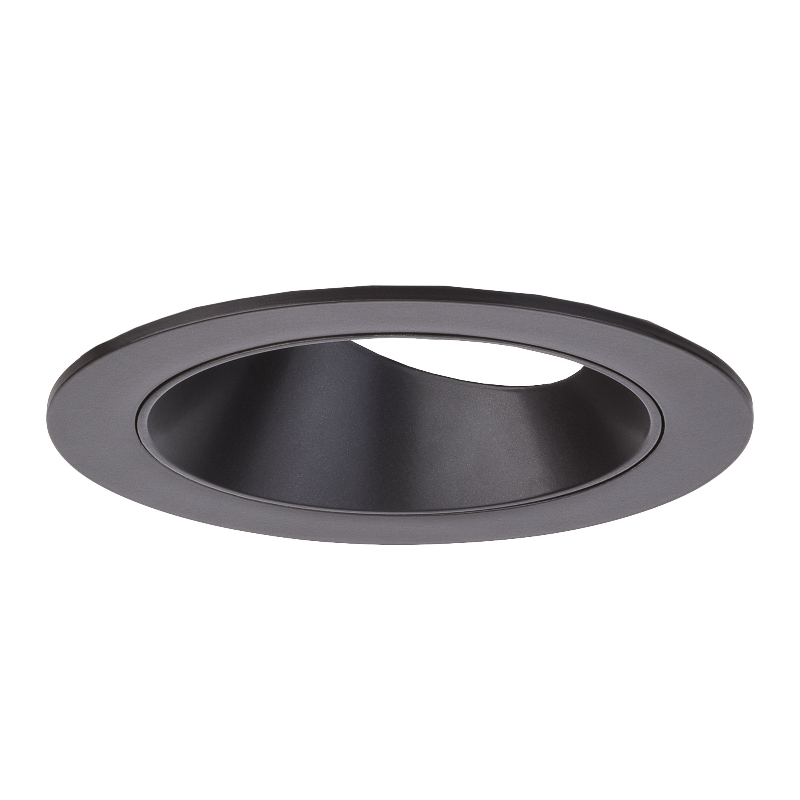

• Finish: Black, Dark Bronze, Haze/White, White
• Construction: Durable Two-piece die-cast Aluminum trim with Aluminum heat sink

• Voltage: 120-277V

• Color Temperature: 3000K - 1800K

• Delivered Lumens: 1255lm
• CBCP: Up to 3005
• CRI: 90
• ELV Dimming: 100-1%

• 0-10V Dimming: 100-1%
• TRIAC Dimming: 100-1%
• Rated Life: 50,000 Hours

• 0-45° vertical tilting and 365° horizontal rotation
• Center beam alignment retained throughout adjustment range
• Light engine mounted on trim with springs for easy replacement
• Field changeable beam angle with reflectors provided
• Accepts one Lens or glare control accessory

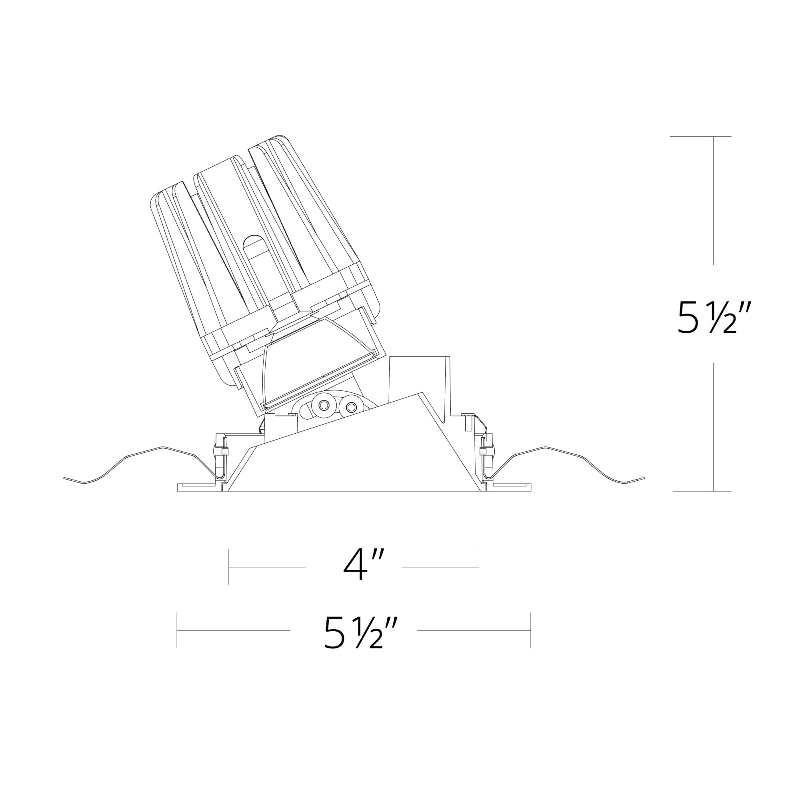

Dimensions

• Aperture Size: 4"

• Width: 5.5"
• Height: 5.5"
• Ceiling Cutout: 4.75" Dia.
• Ceiling Thickness: 0.5" - 1"


Lamping

• 19W LED (Not Included)


Documents

• Spec Sheet
• Instruction Sheet
