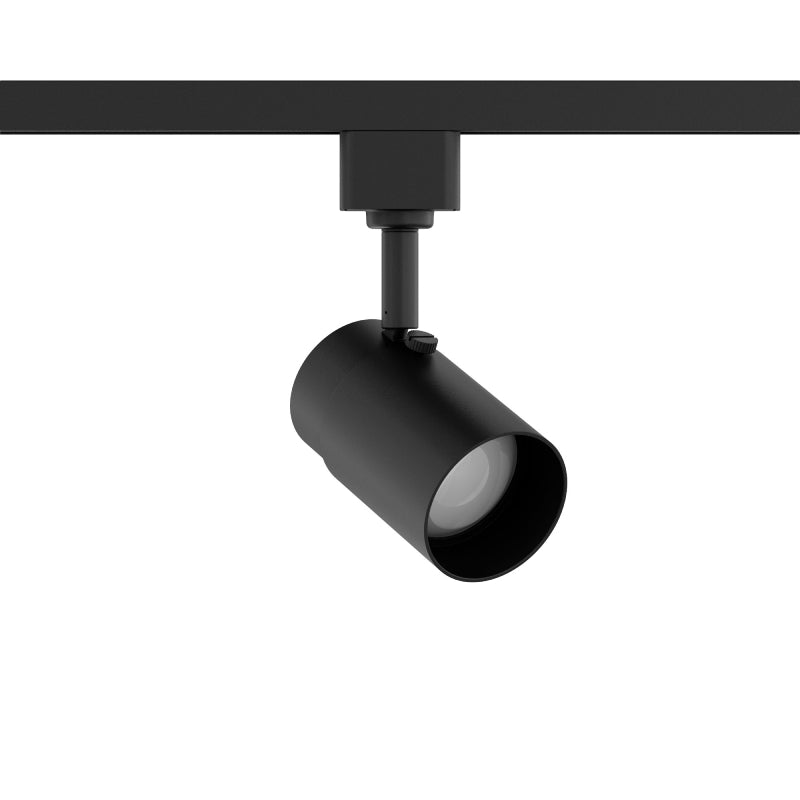

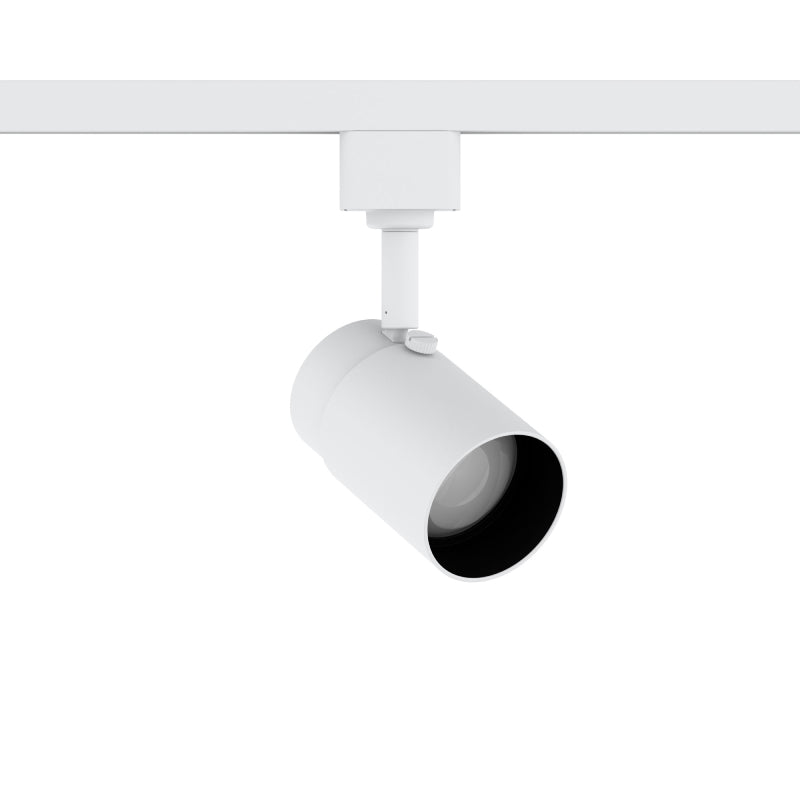

WAC X-10 11W LED Outdoor Track Luminaire

Ideal for residential spaces and lower-mounted commercial installations, the OCULARC 7011-CS combines a high-efficiency 5-CCT selectable COB LED with easy-to-use films for three separate beam spreads, along with an adjustable base to accommodate a variety of user preferences.

Features

• Finish: Black, White

• Construction: Die-cast aluminum

• Wattage: 12W
• Voltage: 9-15 VAC,50/60Hz
• Color Temperature: 2700K, 3000K

• Lumens: up to 630
• CRI: 90
• Lens: Tempered Dome Lens
• MLV Dimming: 100-5%
• Continuously adjustable and lockable beam angles from 20° - 70° with indexed adjustment markings
• Fixtures are polarity agnostic and may be installed to track in either orientation
• High power factor (PF) electronics for optimized VA rating (12W, 12VA)
• Track heads install toollessly onto WAC outdoor track system with a patent pending wire piercing adapter
• Transformer required

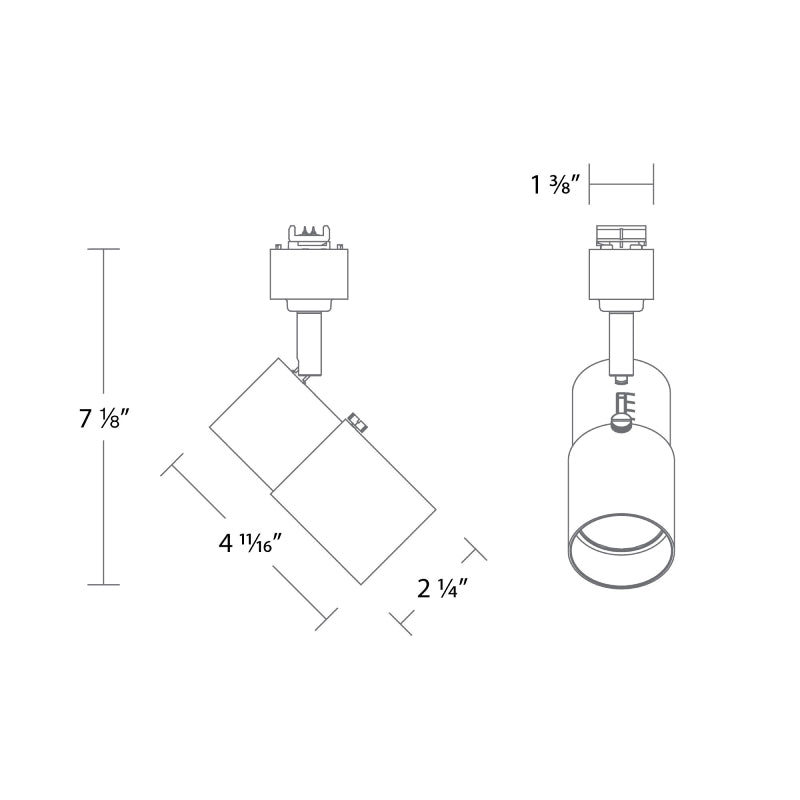

Dimensions

• Diameter: 2.25"

• Height: 7.13"
• Depth: 4.69"

Warranty

• 5 year warranty

 Documents

• Spec Sheet
• Instruction Sheet


Accessory (Sold Separately):

• Holder: LENS-X10-HLD
• Track Channel: XT4, XT8
• Track Cover: X-COV
• Feed End: X-FE
• Connector: X-L, X-FLX
• End Cap: X-EC
• Joiner: X-JOIN
• J Box Cover: X-CP
• Cable: 9100, 9250
• Transformer: 9075, 9150, 9300, 9600

Labels and Listings
