Core PSDM-20W-12V Indoor / Outdoor Dimmable Class 2 LED Driver

Original price $0.00 - Original price $0.00
Original price
$121.77 - $121.77
Current price $121.77
In stock

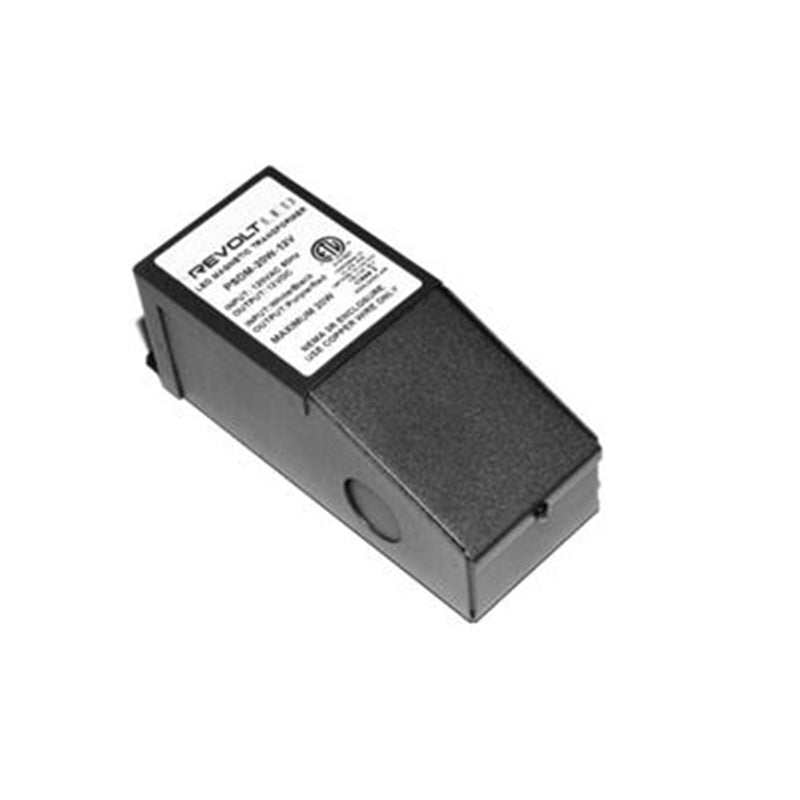

Core Lighting’s 20W Indoor & Outdoor Magnetic Dimmable Class 2 LED Driver is the most compact LED driver on the market. It is equipped with two auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs, one on each side, to enable easy installation that complies with electrical code requirements.


  • Wattage: 20W
  • Output Voltage: 12V
  • Input Voltage: 120VAC
  • Wet/Dry location
  • Dimmable with any standard MLVTRIAC dimmer
  • Dual protection: primary and secondary auto-reset circuit breakers
  • NEMA 3R enclosure for outdoor use
  • Class 2
  • Two bottom knock-outs

MFG Product Page

Spec Sheet
