Elite FCM2-LED 2 Head Recessed Mini Multiple Combo New Construction Housing

by Elite
SKU FCM2-LED-BK-DIMTR-120/DIM10-MVOLT
Sold out
Original price $0.00 - Original price $0.00
Original price
$0.00
$0.00 - $0.00
Current price $0.00
Availability:
Out of stock

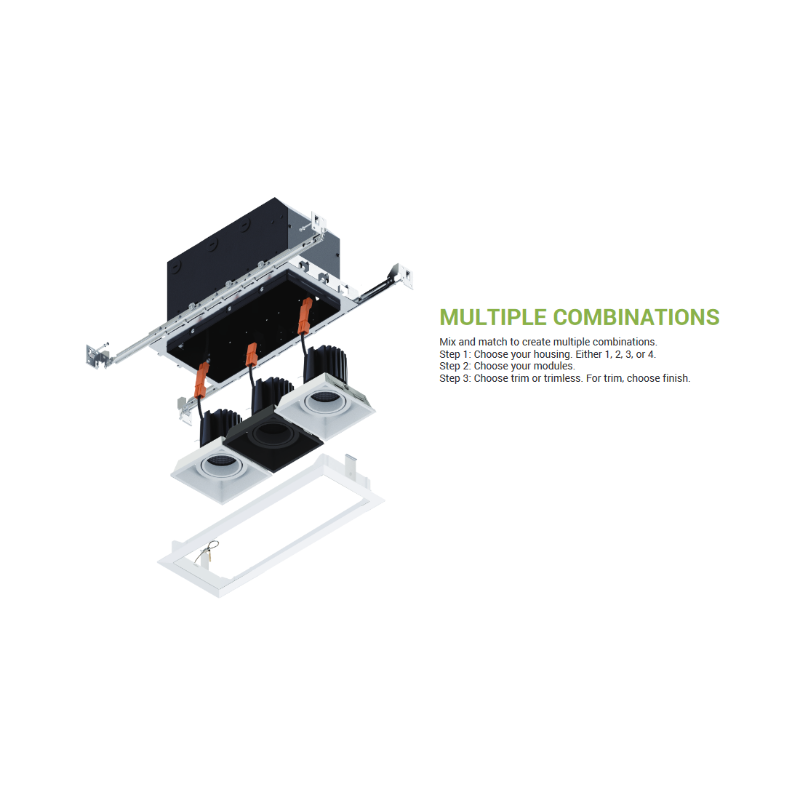

A recessed multiple mini combo downlight, available in 1, 2, 3 or 4 heads, with fully interchangeable, field-adjustable modules. Each individual head has full aiming adjustability, rotating 360°, pivoting 35° vertically, and locks into place. A single housing can combine different color temperatures, optics, trim types and finishes for each individual head.

Features

  • Housing only. Trim and LED Module sold separately.
  • Finish: Black
  • Construction: Post-Painted 18-gauge Steel
  • Wattage: 15.7W
  • Voltage: 120/277V (MVOLT)
  • 0-10V Flicker Free 1% Dimming (only on 120V or 277V)
  • Triac dimming 5% Dimming (only on 120V)
  • Thermally protected for new construction, non-IC applications
  • Passive cooling die-cast aluminum heatsink
  • Interior painted matte black for maximum heat dissipation, zero internal reflection, and glare free illumination
  • Pre-installed bar hangers can be shortened to position and lock housing at any point within the joist span

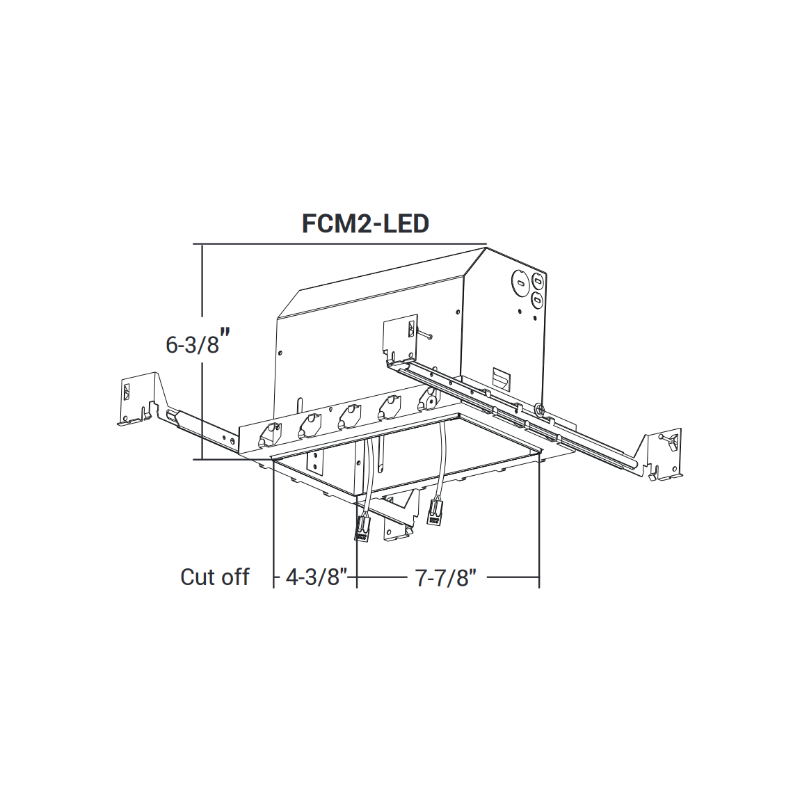

Dimensions

  • Cut off: 4.38" x 7.88"
  • Height: 6.38"
