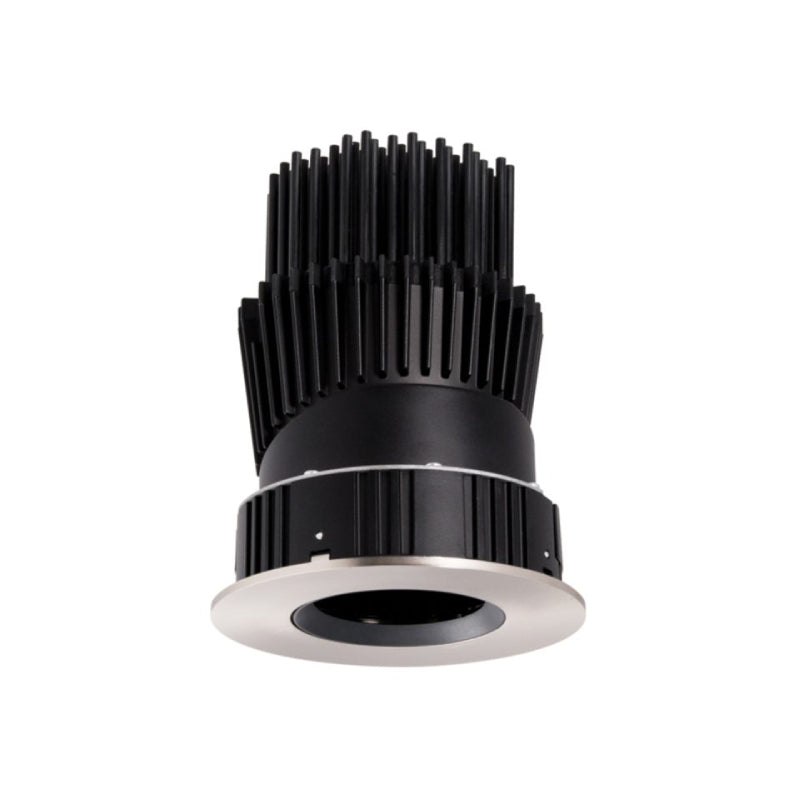

Halo HL36AR 3" 20W LED Round Shallow Directional Remodeler Module

HL3 is a family of 3” round and square directional LED recessed luminaires delivering superior performance and value. Equipped with Interchangeable trims and optics, HL3 provides solutions for accent, task, wall washing, and general area illumination. The HL3 family is perfect for residential and light commercial applications where performance and flexibility is key.

Features

• TIR optic and trim sold separately
• Recessed Size: 3"

• Wattage: 20W

• Voltage: 120-277V
• Color Temperature: 2700K, 3000K
• Lumens: 1631
• CRI: 90
• 0-10V 1% Dimming
• Distribution: Purchase optic separately
• Rating: thermally protected and airtight
• Install from below the ceiling (does not require recessed housing or junction box)
• Flicker-free dimming down to 1%, available with LE/TE phase cut and 0-10V analog control
• Wet location listed for showers and protected ceilings with select trims

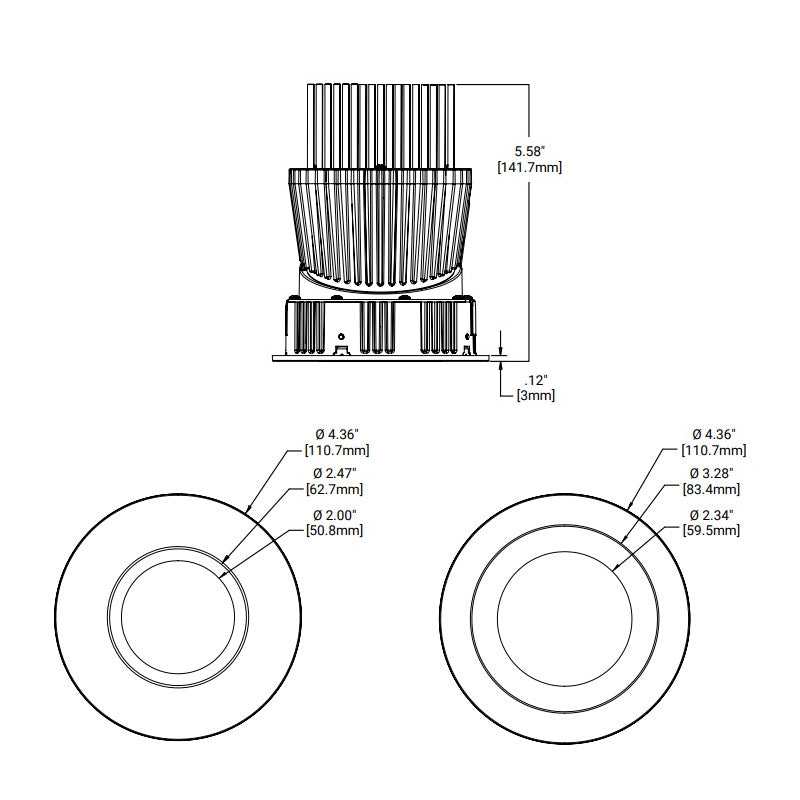

Dimensions

• Width: 4.36"

• Height: 5.58"

Estimated Life

• L70 at 50,000 hours

Warranty

• 7-year warranty

Documents

• Spec Sheet
• Instruction Sheet
