IRiS P3ART 3" Round Adjustable Accent Downlight, Install from Below, Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V

IRIS 3" Round Install-from-Below LED Downlight delivers precise beam control, up to 45° adjustability, and easy below-ceiling installation. Ideal for remodels and new construction, this architectural LED recessed downlight provides professional-grade performance and a clean, modern finish.

Features

• Voltage: 120-277V
• Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
• Lumens: 250, 500, 900, 1300
• CRI: 90
• 0-10V 1% dimming
• Install-from-below adjustable downlight for remodel or new construction applications

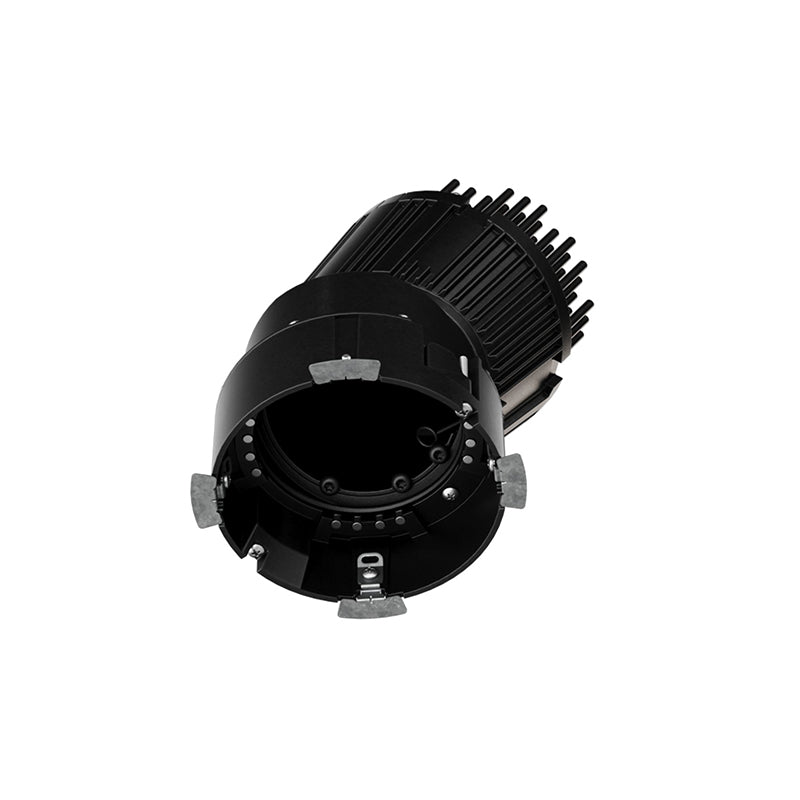

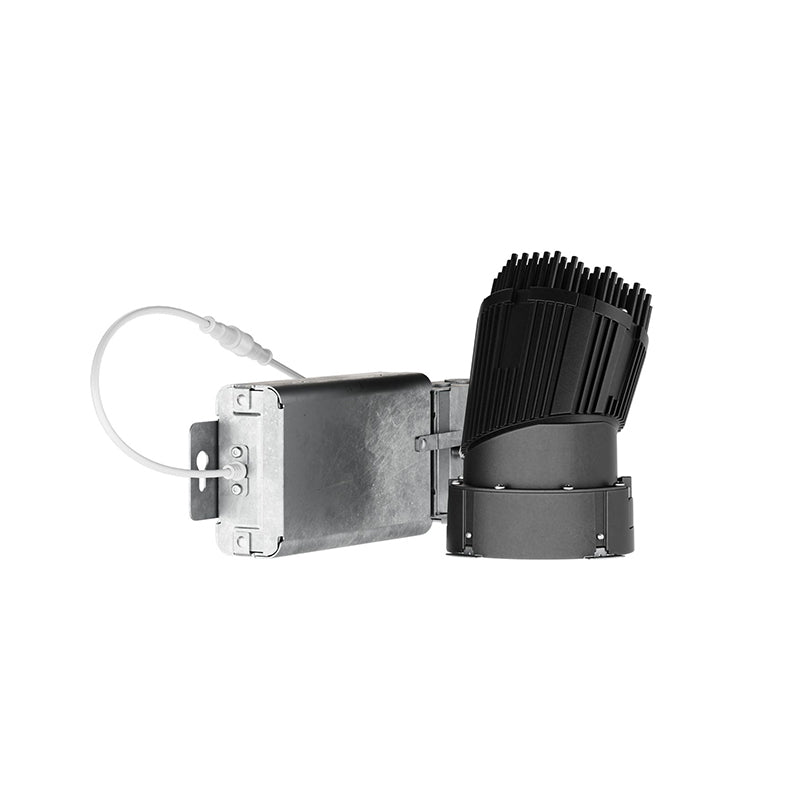

• Round adjustable downlight with integrated heat sink and remote LED driver junction box fits 2x6 construction

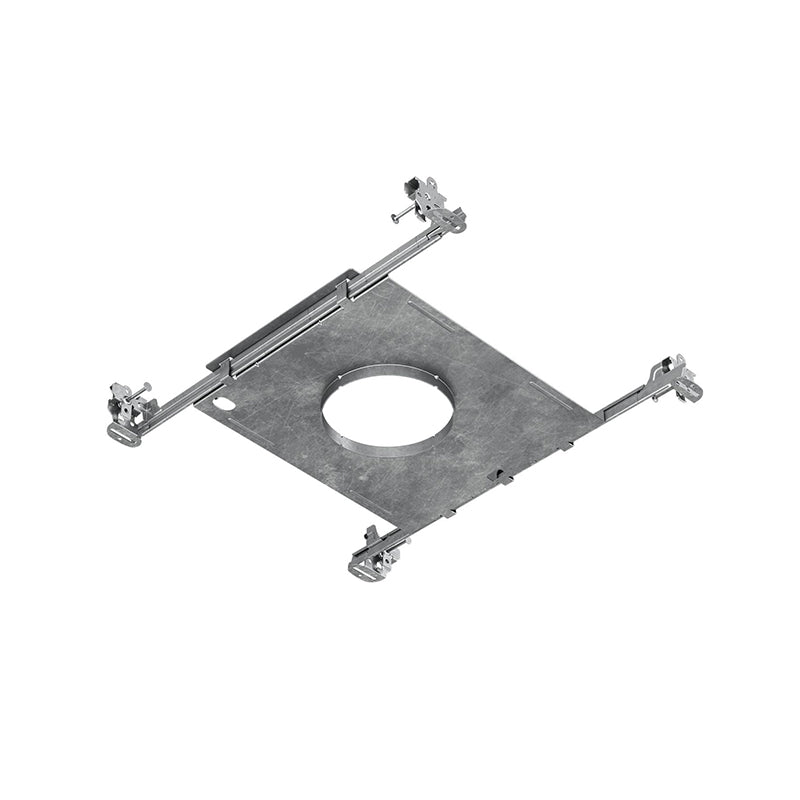

• Wing clamps hold module securely in ceiling in new construction with optional mounting frame or remodel applications
• Interchangeable precision optics: 8°, 10°, 12°, 15–70° in 5° increments, and asymmetric patterns
• 365° of rotation and 45° of tilt for precise hot aiming (35º with Knife Edge Rimless)
• Unmatched trims and finishes for every space and style

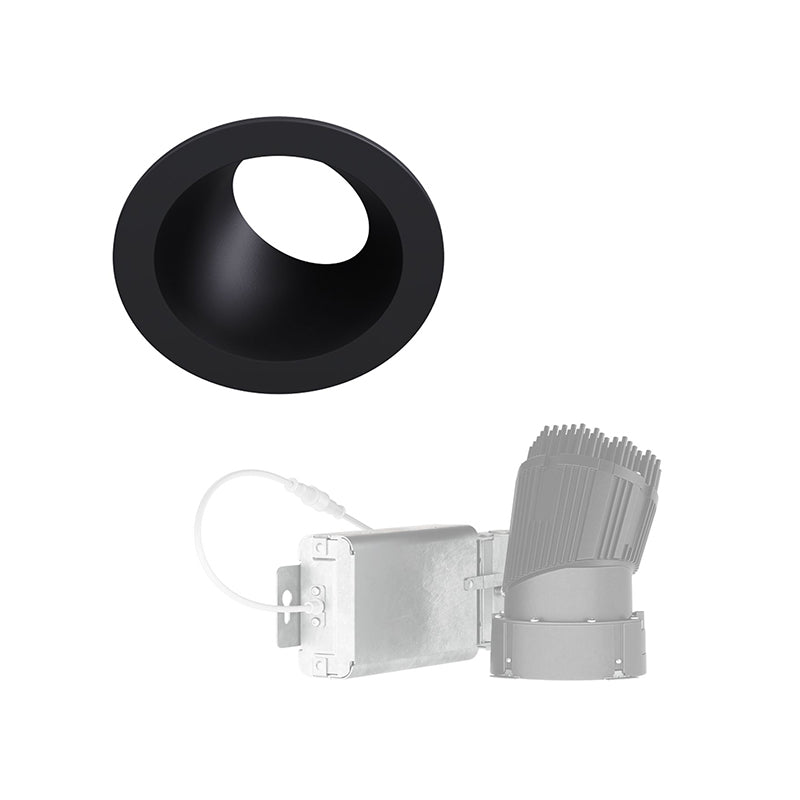

• Trim flange options: Plaster Knife Edge Rimless or Standard Flange

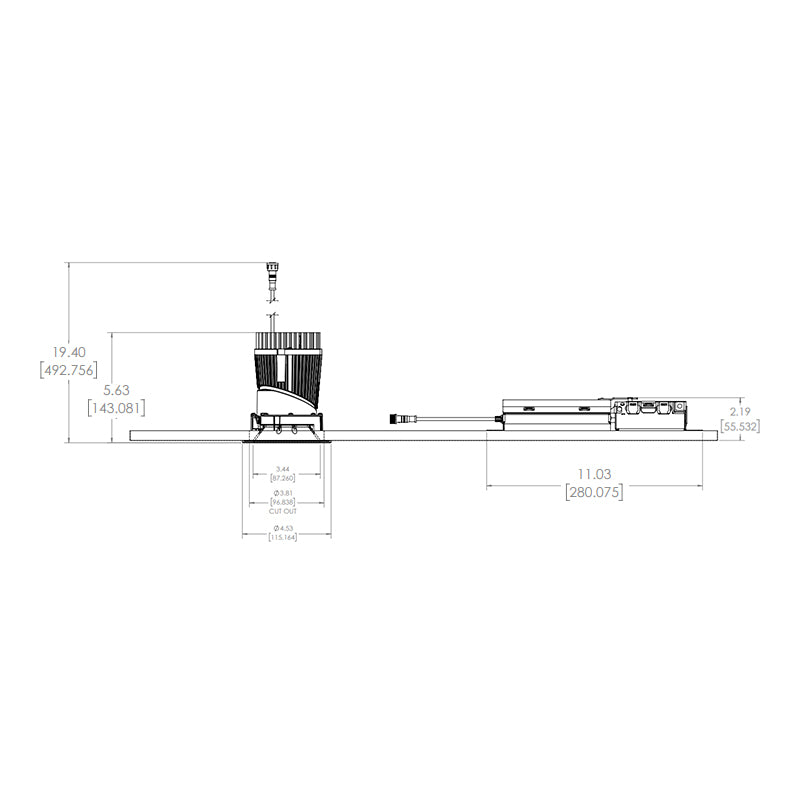

Dimensions

• Width: 4.53"
• Height: 5.63"

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250 suitable for wet locations with lensed trims (required for outdoor use); damp location with open trims
• ENERGY STAR qualified
• Airtight per ASTM-E283 (with lensed trims)
• FCC CFR Title 47 Part 15 Class B at 120VAC and Class A at 277VAC

• Declare compliant, LBC Red List approved
• RoHS compliant
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
