IRiS P3AS 3" Round Shallow Adjustable / Accent / Slope Ceiling Downlight, Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V

The IRIS 3" Round Shallow LED Downlight & Adjustable delivers precise architectural lighting in tight plenum spaces. Featuring field-interchangeable optics, 365° rotation, and 35° tilt, it provides accurate beam control and glare-free illumination. Designed for 2x4 shallow housings, this compact LED recessed downlight is ideal for residential and commercial applications.

Features

• Voltage: 120-277V
• Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
• Lumens: 250, 500, 900, 1300
• CRI: 90
• 0-10V 1% dimming
• Designed for 2x4 construction
• Interchangeable precision optics: 8°, 10°, 12°, 15–70° in 5° increments, and asymmetric patterns
• 365° of rotation and 35° of tilt for precise hot aiming
• Unmatched trims and finishes for every space and style
• Trim flange options: Millwork/Plaster Knife Edge Rimless, MicroFlange, or Standard Flange
• Servicable from Below: LED Light engine and magnetic snap-in driver

• Integral or remote driver options

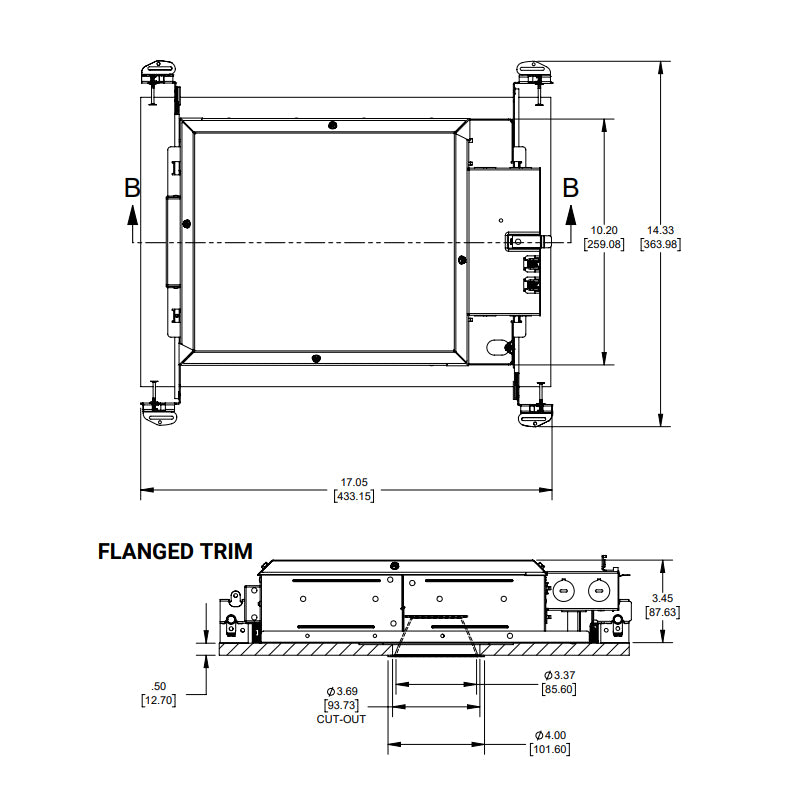

Dimensions

• Length: 17.05"

• Width: 14.33"
• Height: 3.45"

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250 suitable for wet locations with lensed trims (required for outdoor use); damp location with open trims
• ENERGY STAR qualified
• Insulated ceiling (IC) rated
• Airtight per ASTM-E283
• FCC CFR Title 47 Part 15 Class B at 120VAC and Class A at 277VAC

• Declare compliant, LBC Red List approved
• RoHS compliant
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
