by IRIS

IRiS P3RT 3" Round Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V

SKU P3RT029024D010 E3LSWWR1LI
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Lumens: 250
Color Temperature: 2400K

The 3" Round Install-from-Below Downlight delivers refined architectural illumination with clean, fixed precision. Field-interchangeable optics provide controlled beam distributions for consistent, center-aligned light.

Features

  • Voltage: 120-277V
  • Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
  • Lumens: 250, 500, 900, 1300
  • CRI: 90
  • 0-10V 1% dimming

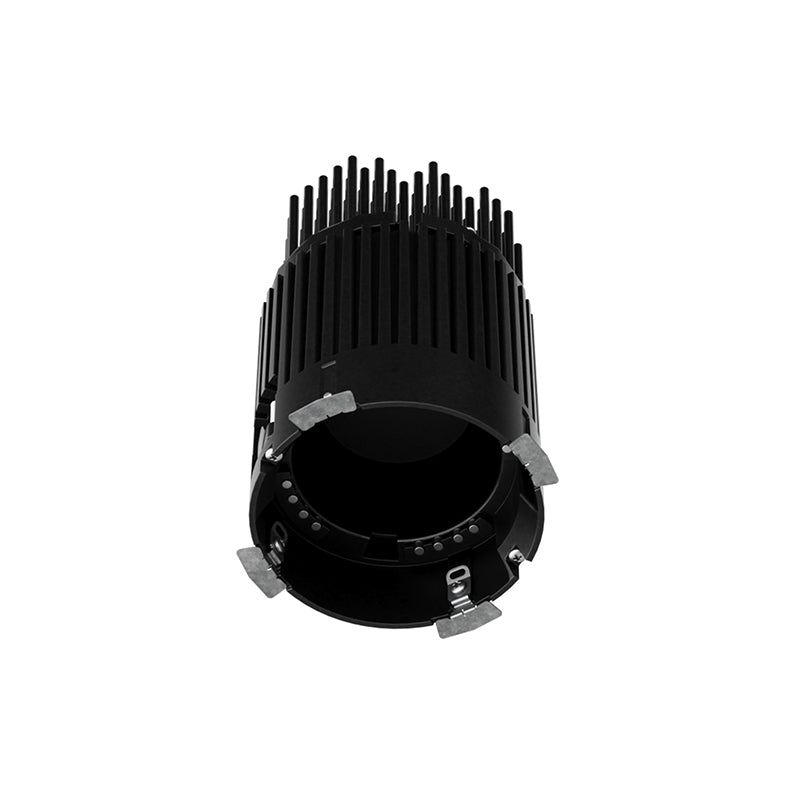

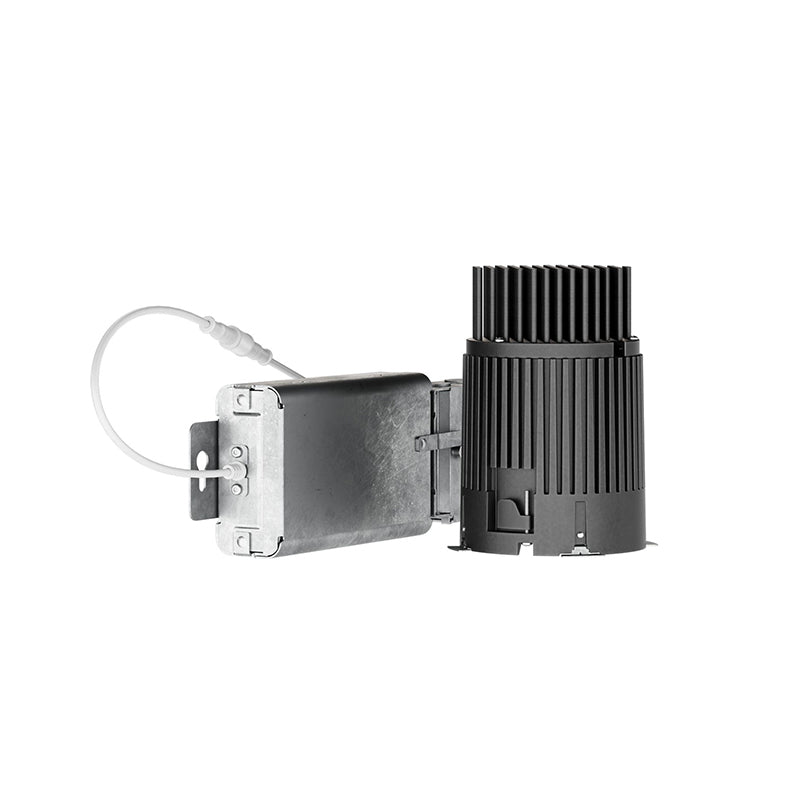

  • Round downlight with integrated heat sink and remote LED driver junction box fits 2x6 construction

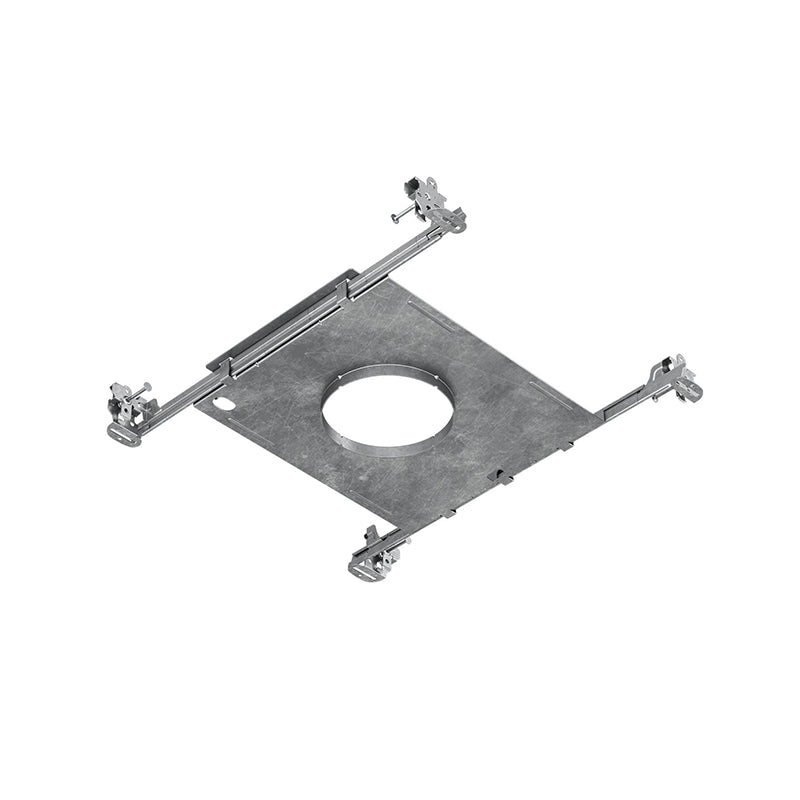

  • Wing clamps hold module securely in ceiling in new construction with optional mounting frame or remodel applications
  • Interchangeable precision optics: 8Ā°, 10Ā°, 12Ā°, 15ā€“70Ā° in 5Ā° increments, and asymmetric patterns
  • Unmatched trims and finishes for every space and style

Trim Options

  • Wall Wash: 3" Lensed Single Wall Wash
  • Flange Style and Finish: Self-flanged (Flange matches reflector finish)
  • Reflector Finish: Specular Clear

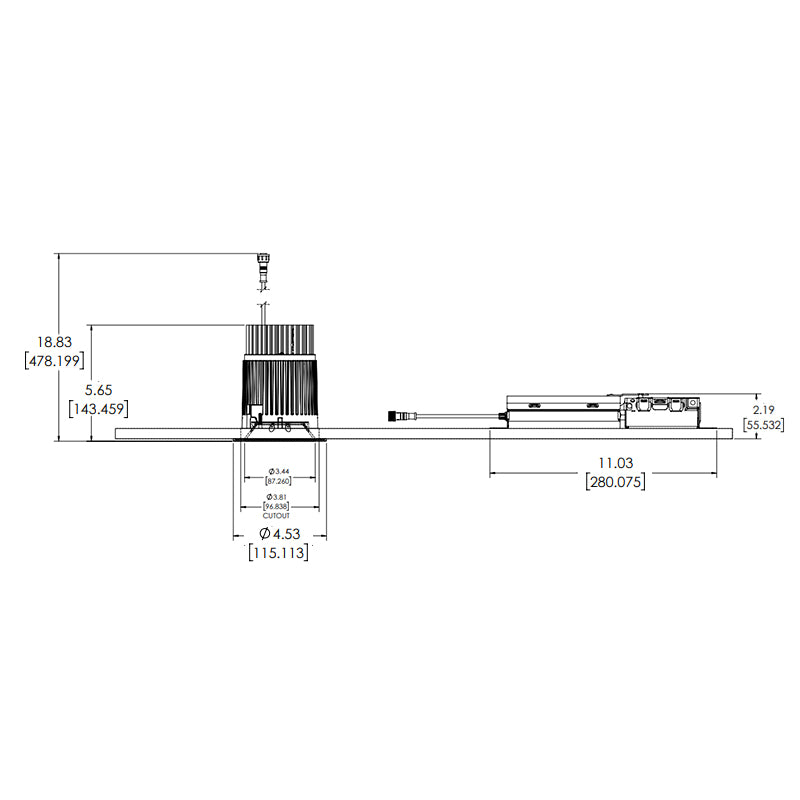

Dimensions

  • Width: 4.53"
  • Height: 5.65"

Warranty

  • 5-year warranty

Documents

Labels and Listings

  • cULus Certified to UL 1598 / C22.2 No. 250 suitableĀ for wet locations with lensed trims (required forĀ outdoor use); damp location with open trims
  • ENERGY STAR qualified
  • Insulated ceiling (IC) rated and non-IC rated refer toĀ ordering information table
  • Airtight per ASTM-E283
  • FCC CFR Title 47 Part 15 Class B at 120VAC andĀ Class A at 277VAC
  • Declare compliant, LBC Red List approved
  • RoHS compliantĀ

}
