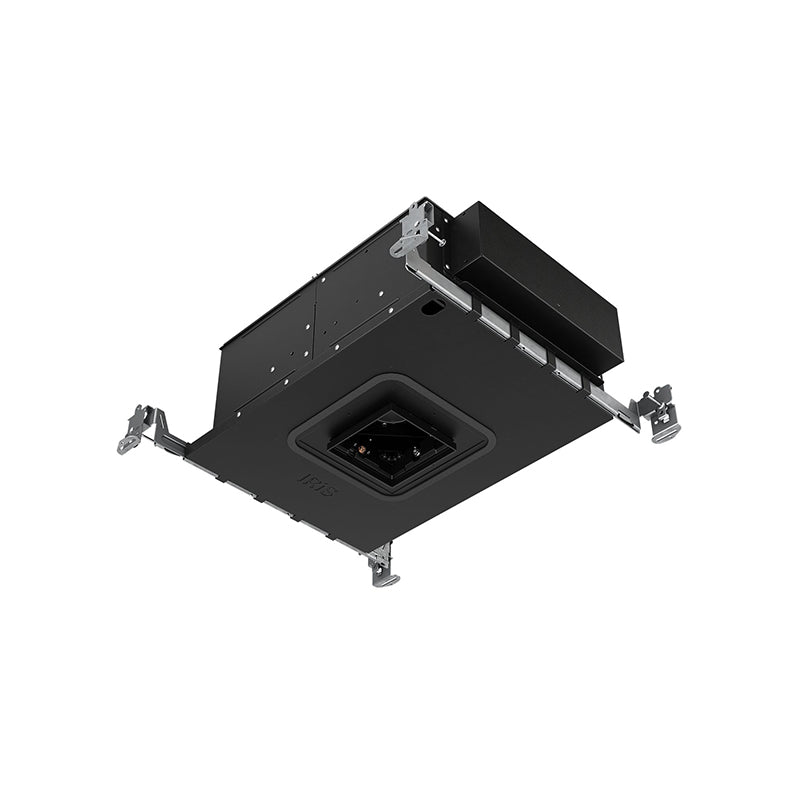

IRiS P3SQA 3" Square Adjustable / Accent / Slope Ceiling Downlight, Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V

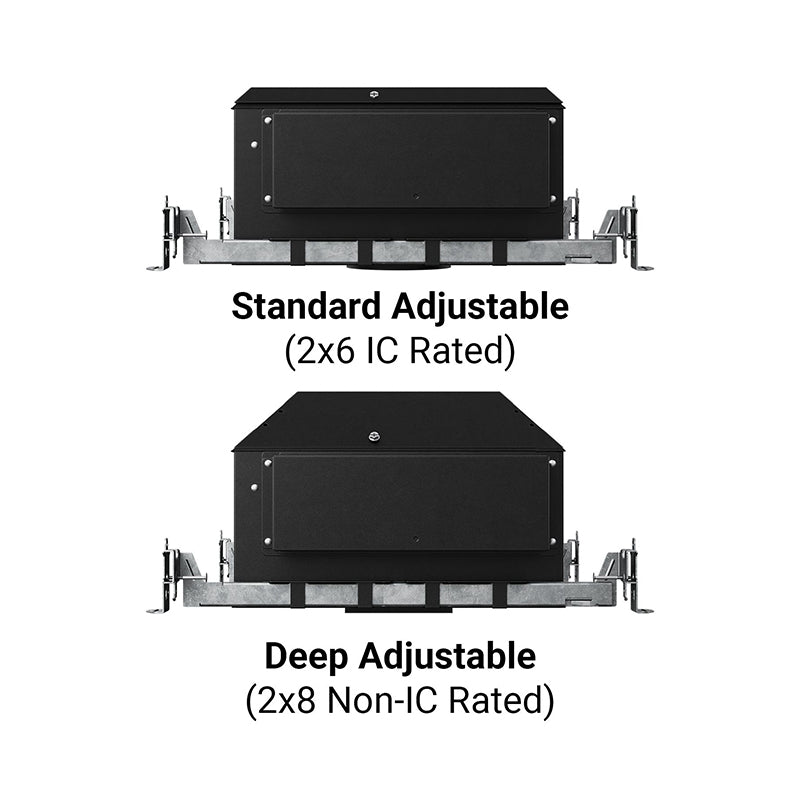

The IRIS 3" Square Downlight & Adjustable combine boutique-level precision with Cooper-level dependability. Field-interchangeable optics, combined with 365° rotation, lockable 45° tilt, and precise Z-axis adjustment give designers and installers complete control over beam placement, intensity, and alignment. Engineered for standard 2x6 and deep 2x8 housings, these luminaires deliver sophisticated lighting.

Features

• Voltage: 120-277V
• Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
• Lumens: 250, 500, 900, 1300
• CRI: 90
• 0-10V 1% dimming
• Designed for 2x6 construction
• Interchangeable precision optics: 8°, 10°, 12°, 15–70° in 5° increments, and asymmetric patterns
• 3-step vertical Z-axis adjustment, 365° of rotation, and 45° of tilt for precise hot aiming
• Unmatched trims and finishes for every space and style

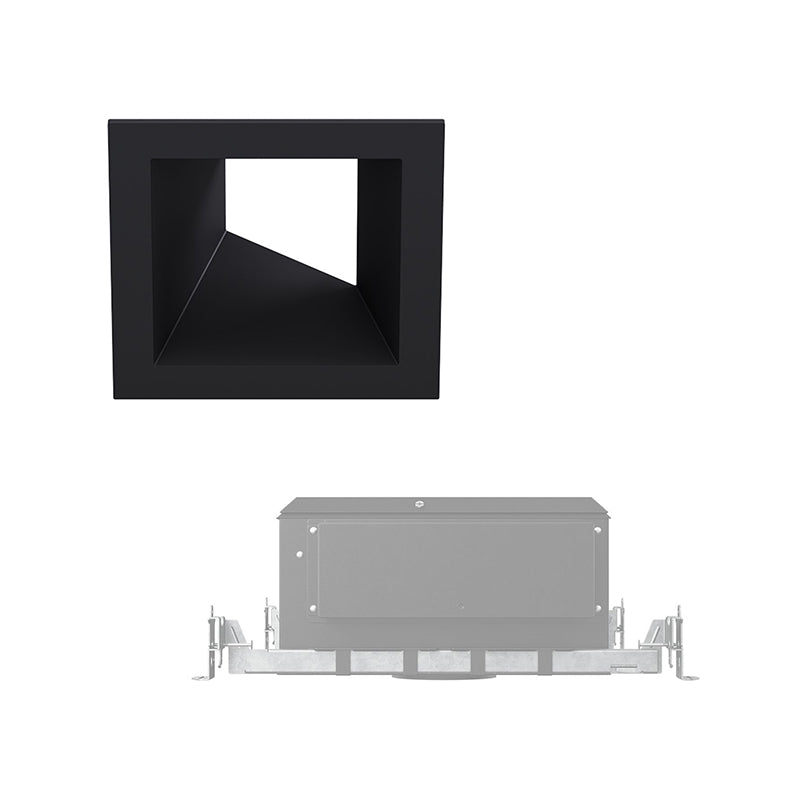

• Trim flange options: Millwork/Plaster Knife Edge Rimless, MicroFlange, or Standard Flange
• Servicable from Below: LED Light engine and magnetic snap-in driver
• Integral or remote driver options

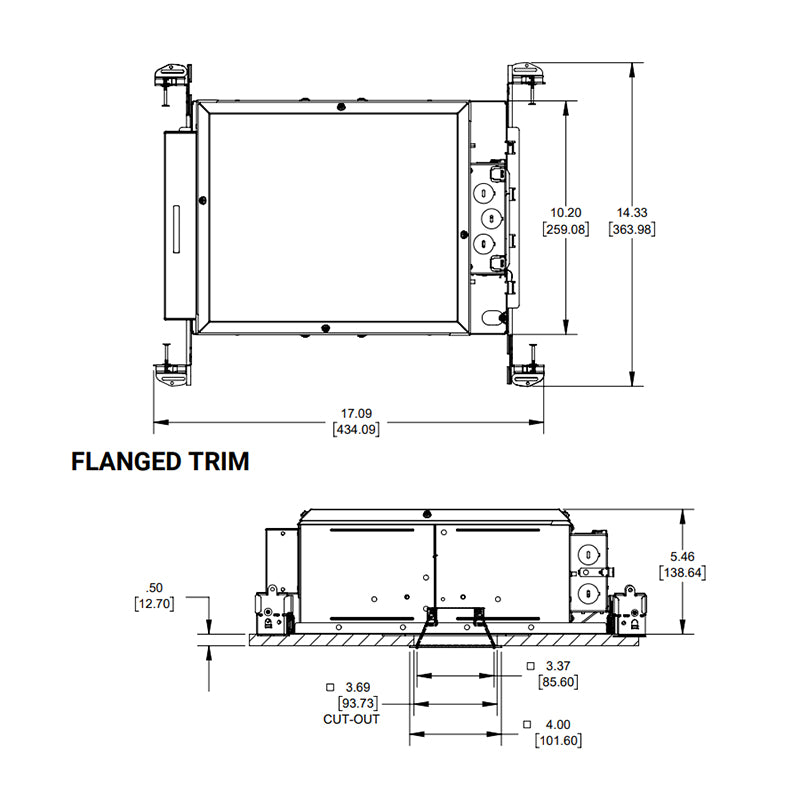

Dimensions

• Length: 17.09"

• Width: 14.33"
• Height: 5.46"

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250 suitable for wet locations with lensed trims (required for outdoor use); damp location with open trims
• ENERGY STAR qualified
• Airtight per ASTM-E283
• FCC CFR Title 47 Part 15 Class B at 120VAC and Class A at 277VAC

• Declare compliant, LBC Red List approved
• RoHS compliant
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
