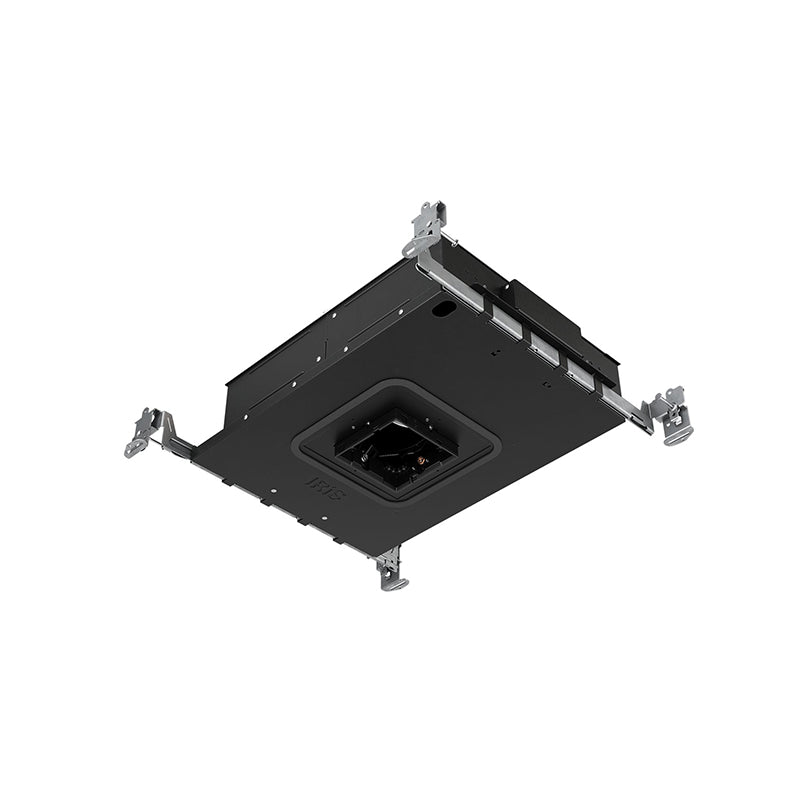

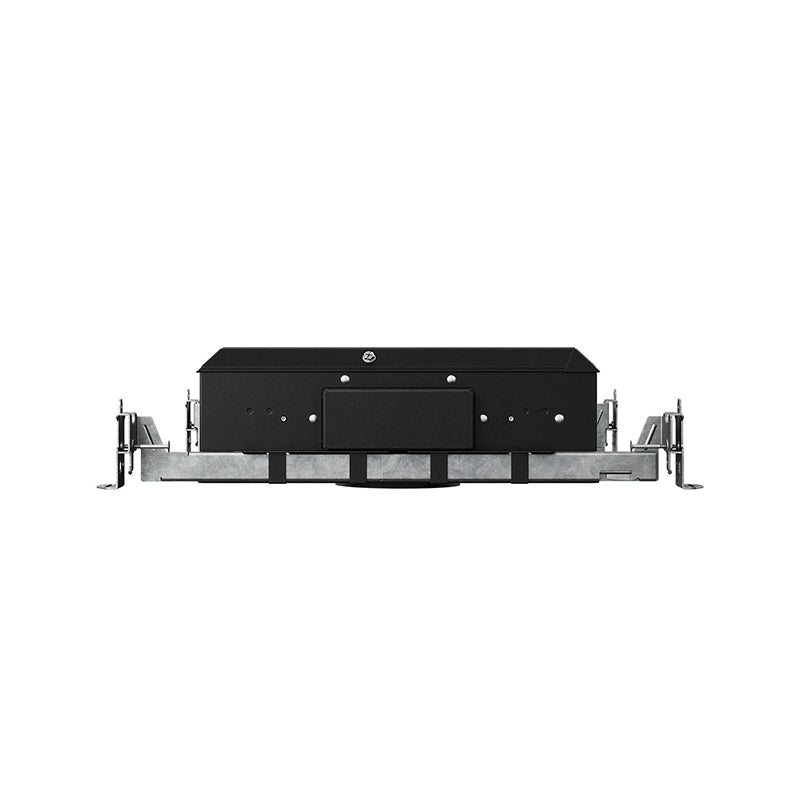

IRiS P3SQAS 3" Square Shallow Adjustable / Accent / Slope Ceiling Downlight, Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V

The IRIS 3" Shallow Downlight & Adjustable deliver boutique-level precision in a compact form. Field-interchangeable optics and 365° rotation with lockable 35° tilt give designers and installers exact control over beam placement, intensity, and alignment. Engineered for 2x4 construction these luminaires bring sophisticated lighting solutions to residential and commercial interiors where every inch and every angle counts.

Features

• Voltage: 120-277V
• Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
• Lumens: 250, 500, 900, 1300
• CRI: 90
• 0-10V 1% dimming
• Designed for 2x4 new construction
• Interchangeable precision optics: 8°, 10°, 12°, 15–70° in 5° increments, and asymmetric patterns
• 365° of rotation and 35° of tilt for precise hot aiming
• Unmatched trims and finishes for every space and style

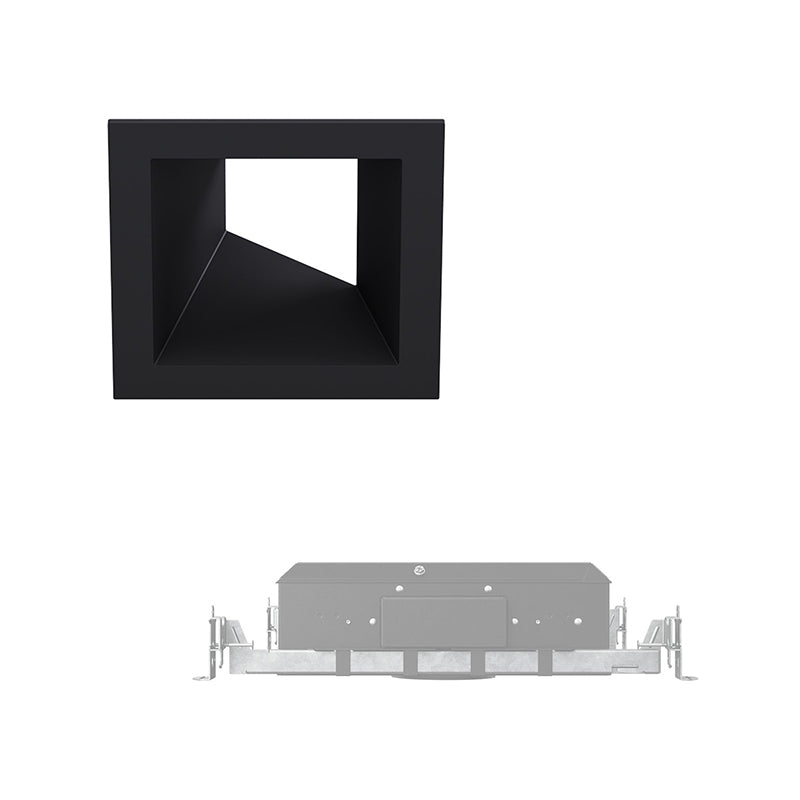

• Trim flange options: Millwork/Plaster Knife Edge Rimless, MicroFlange, or Standard Flange
• Servicable from Below: LED Light engine and magnetic snap-in driver
• Integral or remote driver options

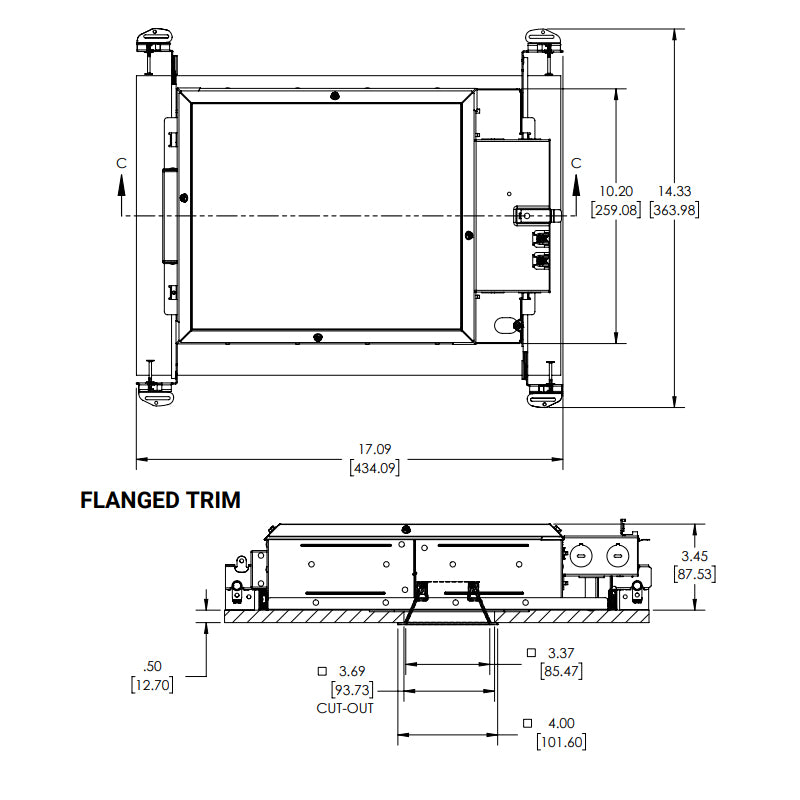

Dimensions

• Length: 17.09"

• Width: 14.33"
• Height: 3.45"

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250 suitable for wet locations with lensed trims (required for outdoor use); damp location with open trims
• ENERGY STAR qualified
• Insulated ceiling (IC) rated
• Airtight per ASTM-E283
• FCC CFR Title 47 Part 15 Class B at 120VAC and Class A at 277VAC

• Declare compliant, LBC Red List approved
• RoHS compliant
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
