IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V
by IRIS

IRiS P3SQRT 3" Square Install-from-Below Downlight & Wall Wash, 90 CRI, 0-10V 1% dimming, 120-277V

SKU P3SQRT029024D010 E3SQCLSWWR1MW
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Lumens: 250
Color Temperature: 2400K
Reflector Finish: Matte White

The 3" Square Install-from-Below Downlight brings crisp architectural presence and dependable performance to hard ceilings. Field-interchangeable optics ensure precise beam control with smooth, even distribution. Engineered for installation from below without ceiling access, it is well suited for remodel applications and with the optional new construction mounting frame, integrates just as seamlessly into new construction applications.

Features

  • Voltage: 120-277V
  • Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
  • Lumens: 250, 500, 900, 1300
  • CRI: 90
  • 0-10V 1% dimming

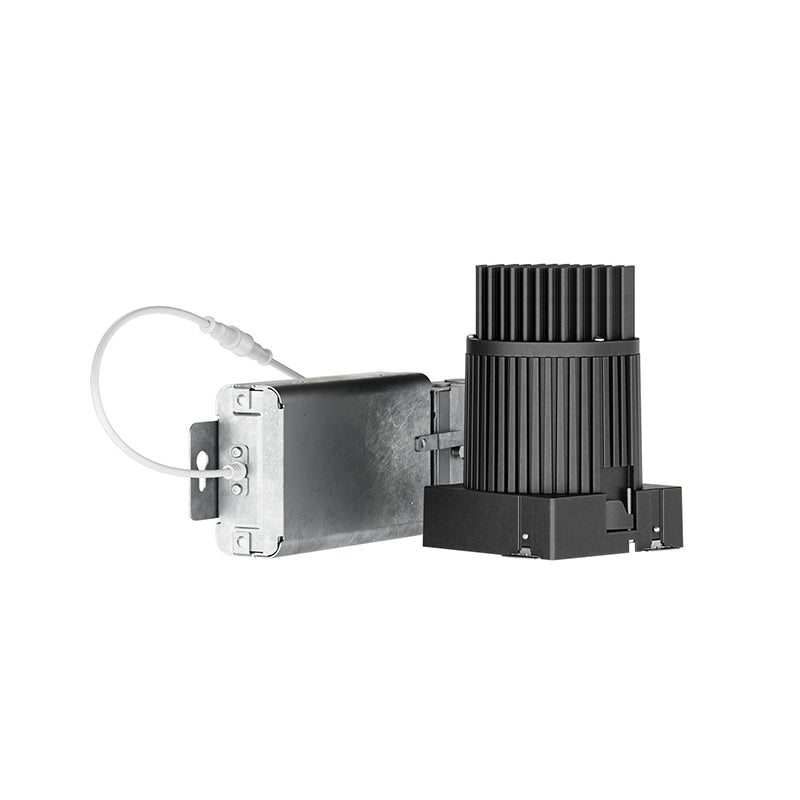

  • Square downlight with integrated heat sink and remote LED driver junction box fits 2x6 construction

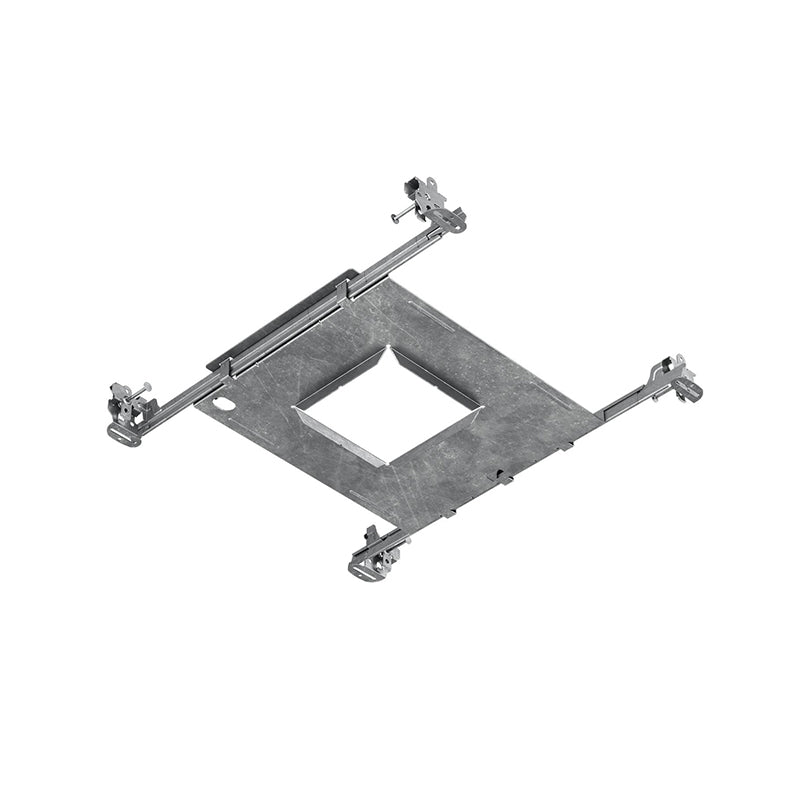

  • Wing clamps hold module securely in ceiling in new construction with optional mounting frame or remodel applications
  • Interchangeable precision optics: 8°, 10°, 12°, 15–70° in 5° increments, and asymmetric patterns
  • Unmatched trims and finishes for every space and style

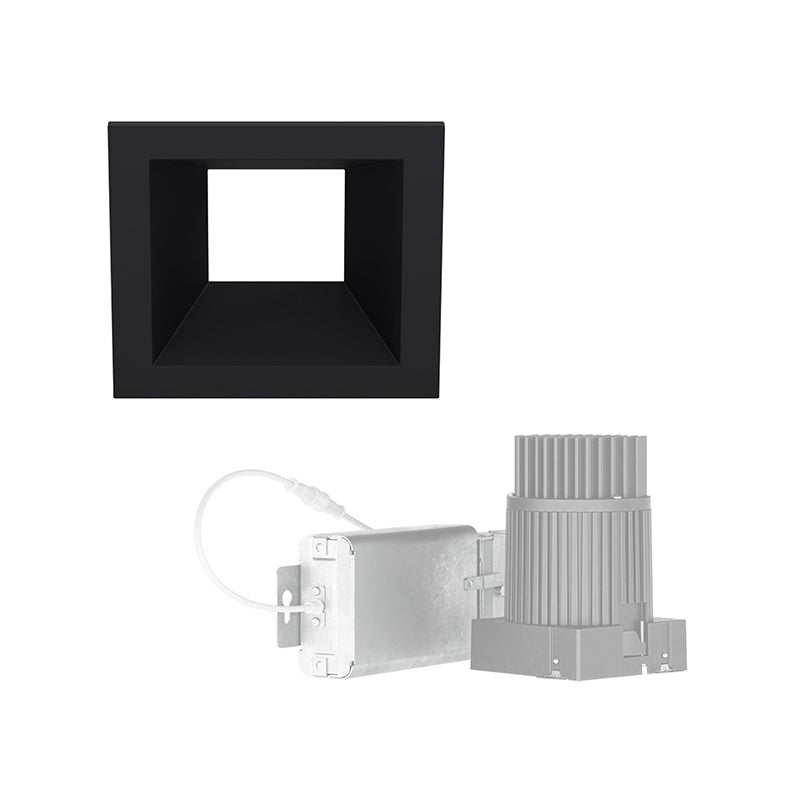

Trim Options

  • Wall Wash: 3" Lensed Single Wall Wash
  • Flange Style and Finish: Self-flanged (Flange matches reflector finish)
  • Reflector Finish: Matte White, Matte Black, Matte Metallic Silver, Bronze

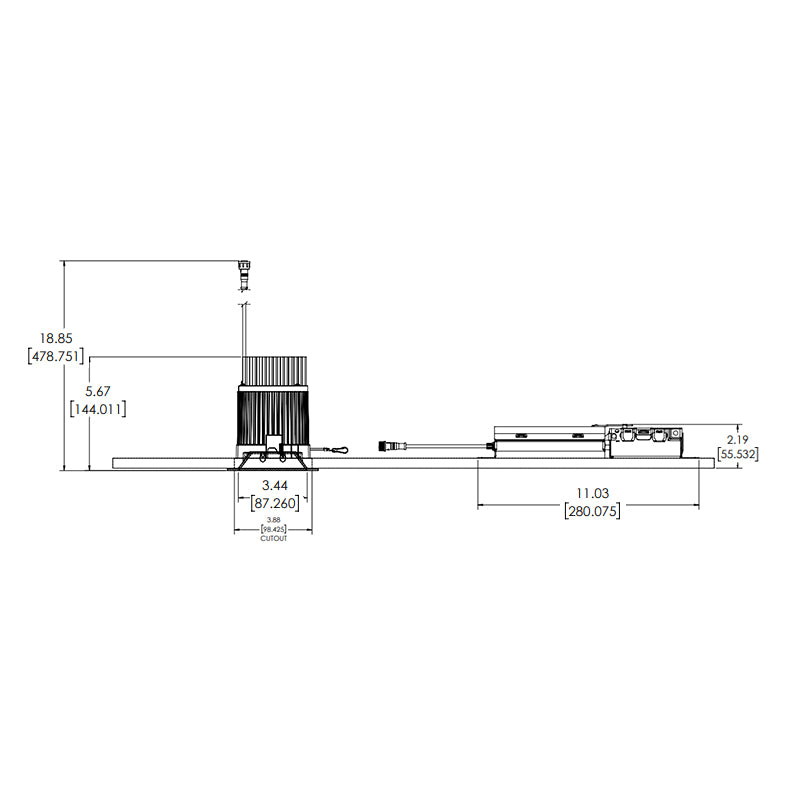

Dimensions

  • Width: 3.44"
  • Height: 5.67"

Warranty

  • 5-year warranty

Documents

Labels and Listings

  • cULus Certified to UL 1598 / C22.2 No. 250 suitable for wet locations with lensed trims (required for outdoor use); damp location with open trims
  • ENERGY STAR qualified
  • Insulated ceiling (IC) rated and non-IC rated refer to ordering information table
  • Airtight per ASTM-E283
  • FCC CFR Title 47 Part 15 Class B at 120VAC and Class A at 277VAC
  • Declare compliant, LBC Red List approved
  • RoHS compliant

}
