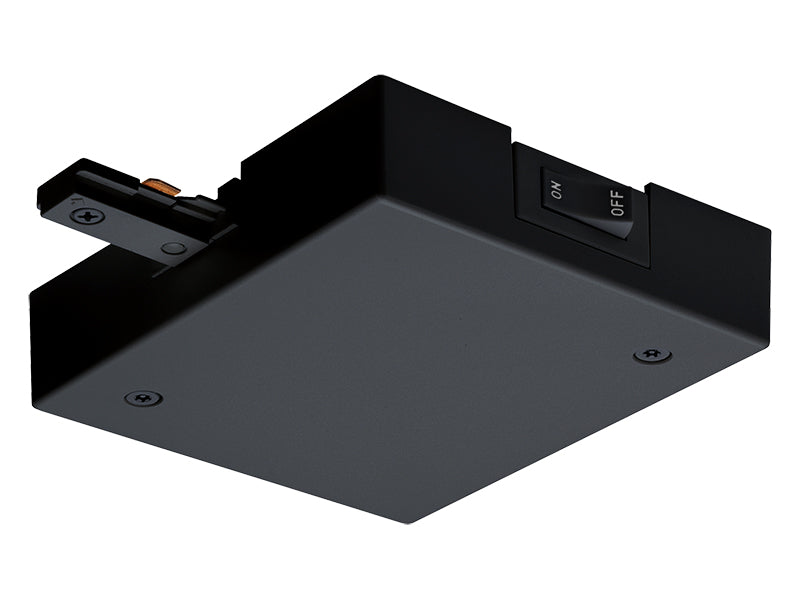

Juno TCLF11 Trac-Master One-Circuit Current Limiting End Feed

Juno LightingSKU: TCLF11BL
filler

Finish: Black
Price:
$59.40
Stock:
In stock

Description

Juno Trac-Master Current Limiting Feeds provide a simple solution for complying with stringent energy codes like ASHRAE 90.1 and California Title 24.

Features:

  • Current limiting circuit breaker required - sold separately

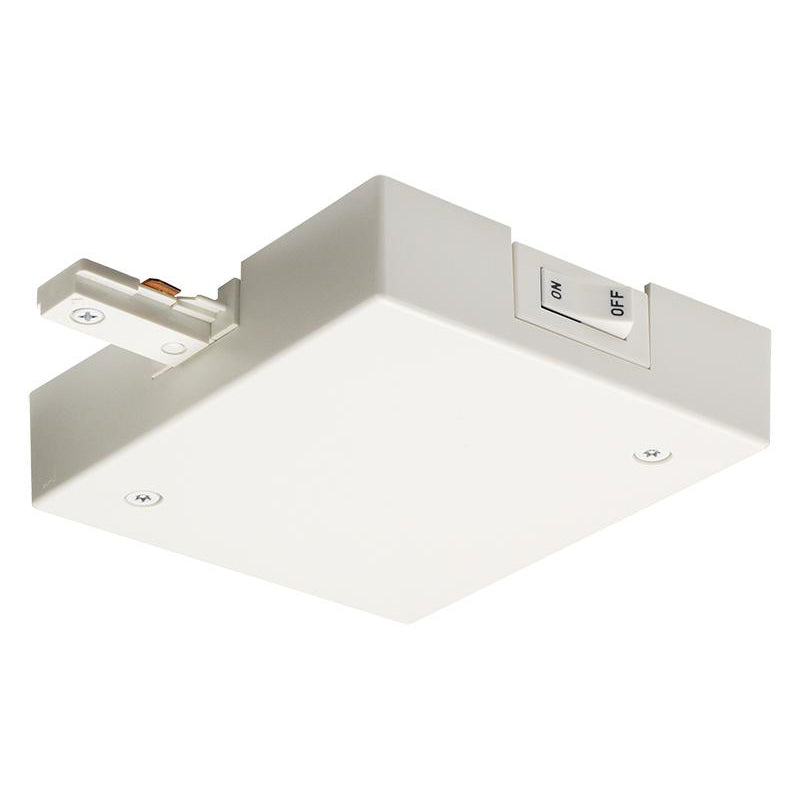

  • Finish: Black, White
  • Compatible with Trac-Master, One Circuit track only
  • Designed to be installed at every trac feed location, in place of a standard non-limiting feed
  • Not intended to be used as a primary circuit protector
  • Heavy-duty 14 gauge (0.075 thick) die formed galvanized steel mounting plate
  • Surface or j-box mounting
  • T-bar compatible when fed directly
  • Mounting holes provided for j-box attachment
  • Center knockout enables feeding from j-box for simple wiring termination
  • Two 7/8” knockouts for direct electrical feed connections
  • Includes ground terminal attachment screw
  • Injection molded polycarbonate cover with tearout for 2-breaker installations
  • Cover attaches to mounting plate using tamper-resistant screws (screwdriver bit supplied each mini end feed)
  • Feed connector is permanently attached to trac using one-way screw
